NexperiaDatasheet (PDF)

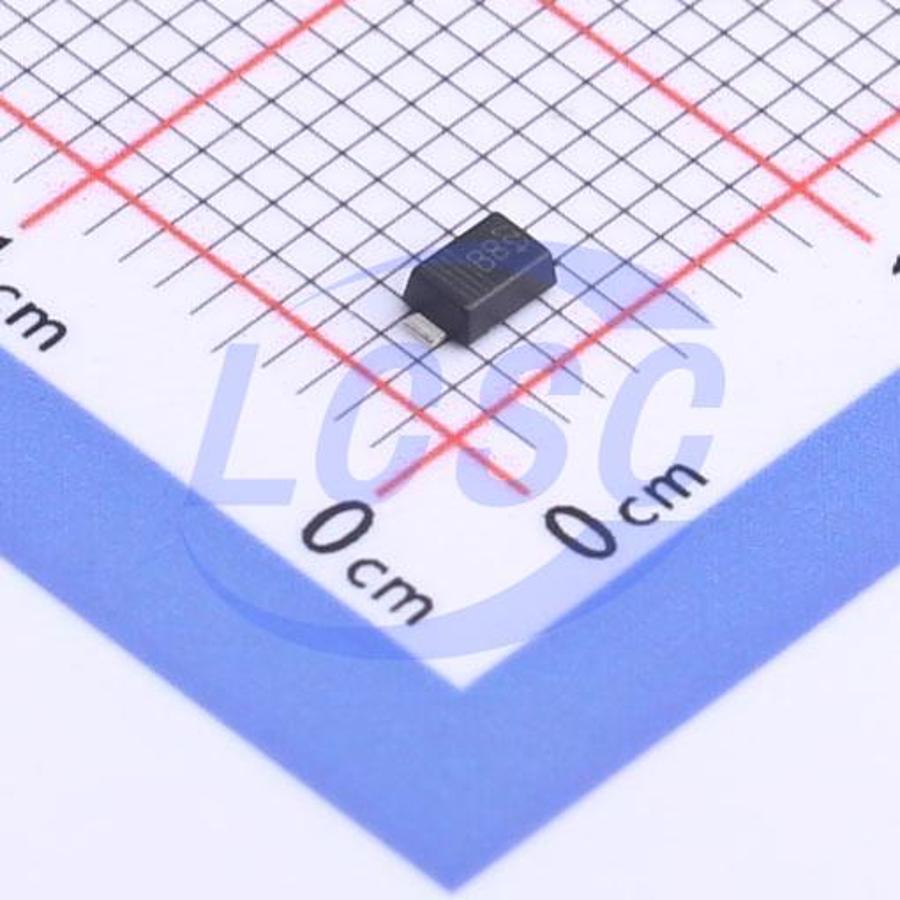

PMEG3010BER,115
1 Independent 30V 450mV@1A 1A SOD-123W Single Diodes RoHS
SOD-123WROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG3010BER,115
- Store part #
- C552860
- Package / case
- SOD-123W
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
145 in stock
#C552860
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹27.39 | ₹27.39 |
| 10+ | ₹26.74 | ₹267.40 |
| 30+ | ₹26.30 | ₹789.00 |
| 100+ | ₹25.86 | ₹2,586.00 |
1 × ₹27.39
₹27.39
excl. GST
₹32.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG3010BER,115
₹27.39 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 450mV@1A
- Reverse Leakage Current (Ir)
- 50uA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
Planar Schottky barrier rectifier with integrated guard ring for stress protection, housed in a SOD123W small outline flat lead SMD plastic package.
Applications
- Low-voltage rectification
- High-efficiency DC-to-DC conversion
- Switch-mode power supplies (SMPS)
- Reverse polarity protection
- Low-power applications
Key features
- Average forward current: IF(AV) ≤ 1 A
- Reverse voltage: VR ≤ 30 V
- Low forward voltage
- High power capability due to clip bonding technology
- Small flat lead SMD plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG3010BER-QX#C6148251Nexperia · SOD-123W | Nexperia | SOD-123W | 100 | ₹84.46 · 100 in stock | View |
 | PMEG4010ER,115#C179430Nexperia · SOD-123W | Nexperia | SOD-123W | 16,910 | ₹23.93 · 16,910 in stock | View |
 | PMEG4010EXEX#C24571086Nexperia · SOD-123HP | Nexperia | SOD-123HP | 2,985 | ₹13.27 · 2,985 in stock | View |
| PMEG4010ETR-QX#C7261812Nexperia · SOD-123W | Nexperia | SOD-123W | 50 | ₹29.42 · 50 in stock | View | |
 | SM5819PLHE3-TP#C19992592MCC · SOD-123FL | MCC | SOD-123FL | 2,400 | ₹14.58 · 2,400 in stock | View |
