NexperiaDatasheet (PDF)

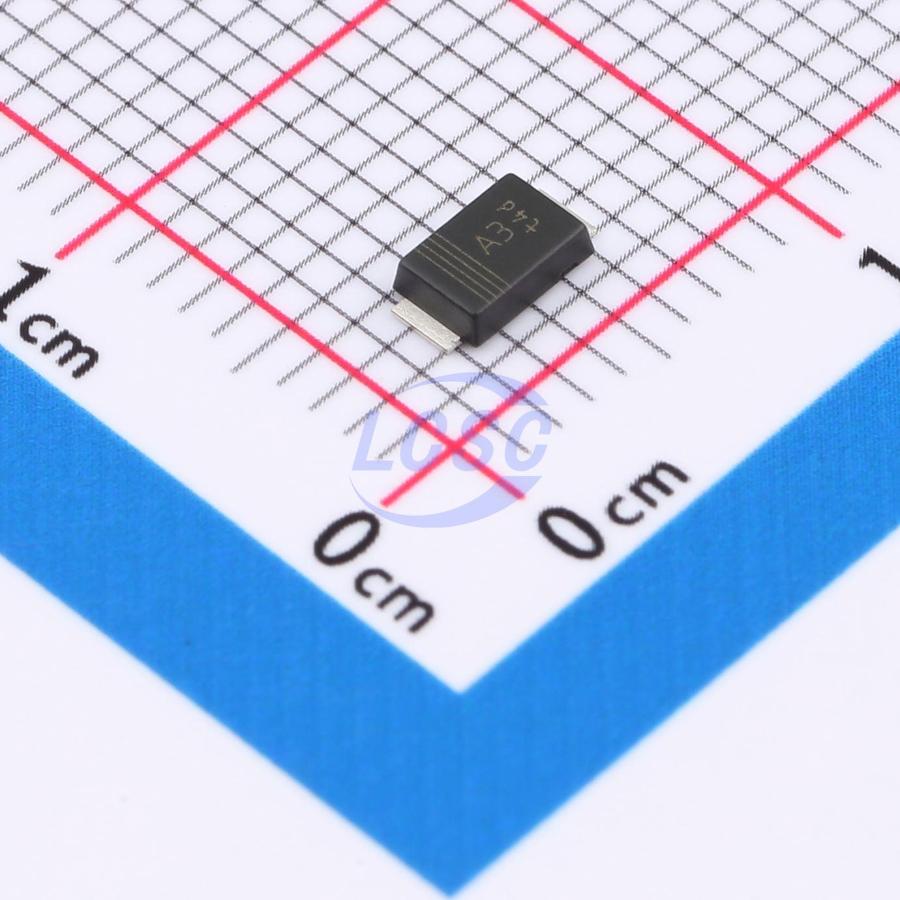

PMEG3020EP,115
Diode 30V 2A Surface Mount SOD-128
SOD-128ROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-128
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG3020EP,115
- Store part #
- C513108
- Package / case
- SOD-128
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,707 in stock
#C513108
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.25 | ₹56.25 |
| 10+ | ₹44.10 | ₹441.00 |
| 30+ | ₹38.67 | ₹1,160.10 |
| 100+ | ₹32.15 | ₹3,215.00 |
| 500+ | ₹29.33 | ₹14,665.00 |
| 1,000+ | ₹27.37 | ₹27,370.00 |
1 × ₹56.25
₹56.25
excl. GST
₹66.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG3020EP,115
₹56.25 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 360mV@2A
- Reverse Leakage Current (Ir)
- 3mA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch Mode Power Supply (SMPS)
- Reverse polarity protection
- Low power consumption applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG3020EP-QX#C5829102Nexperia · SOD-128 | Nexperia | SOD-128 | 1,517 | ₹60.38 · 1,517 in stock | View |
 | PMEG3030EP,115#C255587Nexperia · SOD-128 | Nexperia | SOD-128 | 5,592 | ₹64.51 · 5,592 in stock | View |
 | CMS06(TE12L,Q,M)#C261920TOSHIBA · SOD-128 | TOSHIBA | SOD-128 | 2,075 | ₹26.91 · 2,075 in stock | View |
 | PMEG3030BEP,115#C455073Nexperia · SOD-128 | Nexperia | SOD-128 | 1,797 | ₹89.92 · 1,797 in stock | View |
 | PMEG3020CEP,115#C552871Nexperia · SOD-128 | Nexperia | SOD-128 | 89 | ₹112.07 · 89 in stock | View |
