NexperiaDatasheet (PDF)

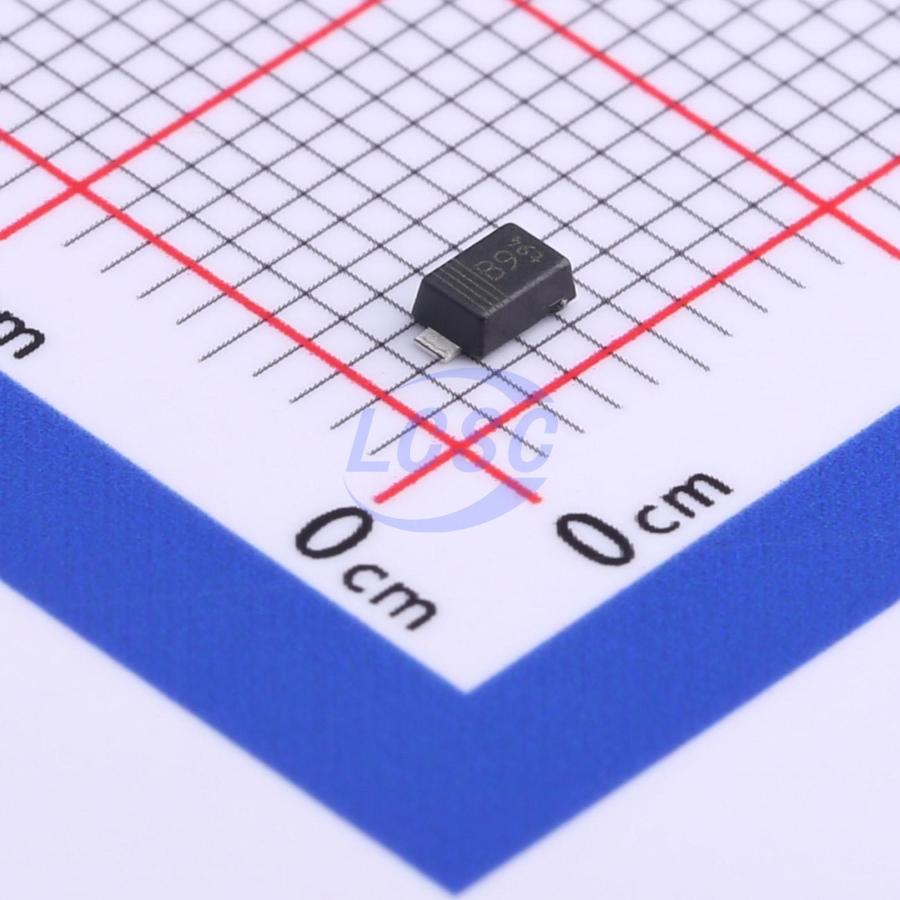

PMEG3020ER,115
Diode 30V 2A Surface Mount SOD-123W
SOD-123WROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG3020ER,115
- Store part #
- C552879
- Package / case
- SOD-123W
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,075 in stock
#C552879
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.49 | ₹51.49 |
| 10+ | ₹40.19 | ₹401.90 |
| 30+ | ₹35.42 | ₹1,062.60 |
| 100+ | ₹29.33 | ₹2,933.00 |
| 500+ | ₹26.51 | ₹13,255.00 |
| 1,000+ | ₹24.99 | ₹24,990.00 |
1 × ₹51.49
₹51.49
excl. GST
₹60.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG3020ER,115
₹51.49 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 420mV@2A
- Reverse Leakage Current (Ir)
- 1.5mA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD123W small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch Mode Power Supply (SMPS)
- Reverse polarity protection
- Low power consumption applications
Key features
- Average forward current: IF(AV) ≤ 2 A
- Reverse voltage: VR ≤ 30 V
- Low forward voltage
- High power capability due to clip-bond technology
- Small and flat lead SMD plastic package
- Suitable for both reflow and wave soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG3020ER-QX#C5846102Nexperia · SOD-123W | Nexperia | SOD-123W | 115 | ₹87.65 · 115 in stock | View |
 | DTSS24L#C2917825ZHIDE · SOD-123FL | ZHIDE | SOD-123FL | 2,180 | ₹10.77 · 2,180 in stock | View |
 | PMEG4020ER#C19268150TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 130 | ₹9.75 · 130 in stock | View |
 | PMEG3020EH#C19268151TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,730 | ₹9.82 · 1,730 in stock | View |
 | MBR230LSFT1G#C19268152TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,940 | ₹8.94 · 1,940 in stock | View |
