JSMSEMIDatasheet (PDF)

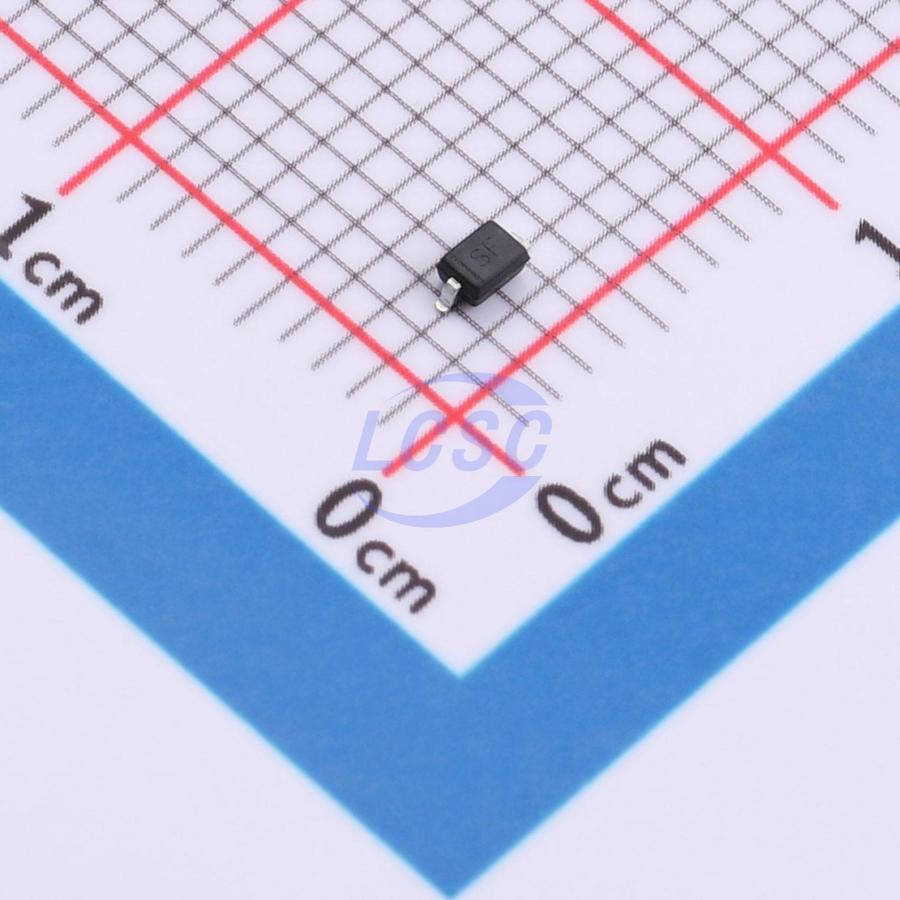

PMEG4005EJ,115-JSM
40V 1 Independent 500mA SOD-323 Single Diodes RoHS
SOD-323ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PMEG4005EJ,115-JSM
- Store part #
- C53114204
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,230 in stock
#C53114204
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.70 | ₹57.00 |
| 100+ | ₹4.55 | ₹455.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.19 | ₹19,140.00 |
| 9,000+ | ₹3.00 | ₹27,000.00 |
10 × ₹5.70
₹57.00
excl. GST
₹67.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG4005EJ,115-JSM
₹57.00 for 10 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Operating Junction Temperature Range
- -55℃~+125℃
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 510mV@500mA;620mV@1A
- Reverse Leakage Current (Ir)
- 10uA
- Current - Rectified
- 500mA
- Non-Repetitive Peak Forward Surge Current
- 22A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Key features
- Low forward voltage drop
- Guard ring structure for transient protection
- High conductance
- Lead-free versions available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG4005AEA,115-JSM#C53114061JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 16,920 | ₹5.57 · 16,920 in stock | View |
 | PMEG2020AEA,115-JSM#C53114115JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,640 | ₹5.86 · 1,640 in stock | View |
 | PMEG3020EJ,115-JSM#C53114155JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 3,850 | ₹9.68 · 3,850 in stock | View |
 | PMEG2005AEA,115-JSM#C53114226JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,420 | ₹5.19 · 2,420 in stock | View |
 | PMEG4010BEA,115-JSM#C53113982JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,380 | ₹4.17 · 2,380 in stock | View |
