NexperiaDatasheet (PDF)

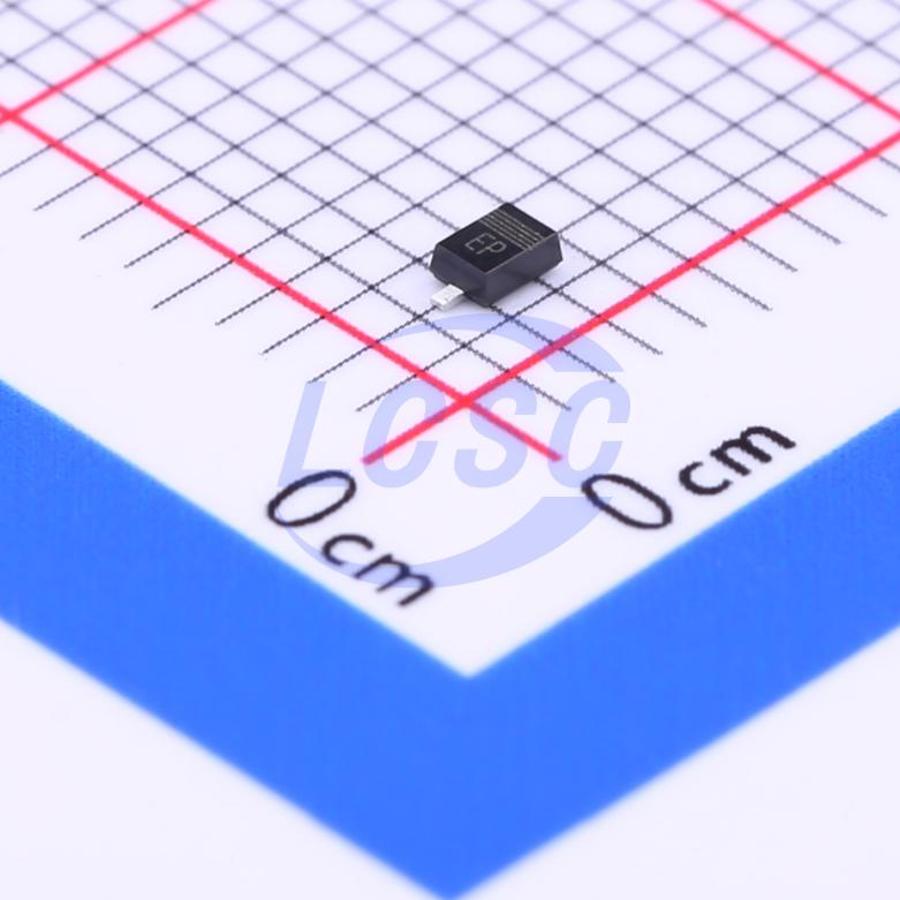

PMEG4010CEJ,115
Diode 1 Independent 40V 1A Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE SCHOTTKY 40V SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG4010CEJ,115
- Store part #
- C50704
- Package / case
- SOD-323F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,005 in stock
#C50704
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.98 | ₹244.90 |
| 50+ | ₹39.07 | ₹1,953.50 |
| 150+ | ₹34.83 | ₹5,224.50 |
| 500+ | ₹29.53 | ₹14,765.00 |
| 3,000+ | ₹26.84 | ₹80,520.00 |
| 6,000+ | ₹25.43 | ₹1,52,580.00 |
5 × ₹48.98
₹244.90
excl. GST
₹288.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG4010CEJ,115
₹244.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 570mV@1A
- Reverse Leakage Current (Ir)
- 50uA@40V
- Non-Repetitive Peak Forward Surge Current
- 10A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small and flat lead Surface- Mounted Device (SMD) plastic packages.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Reverse polarity protection
- Low power consumption applications
Key features
- Forward current: IF ≤ 1 A
- Reverse voltage: VR ≤ 40 V
- Very low forward voltage
- Small and flat lead SMD plastic packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG6010CEJ,115#C406049Nexperia · SOD-323F | Nexperia | SOD-323F | 48,100 | ₹21.46 · 48,100 in stock | View |
 | B5819WS-TP#C78734MCC · SOD-323 | MCC | SOD-323 | 25,480 | ₹8.96 · 25,480 in stock | View |
 | PMEG4010BEA(TOKMAS)#C52941007Tokmas · SOD-323 | Tokmas | SOD-323 | 1,960 | ₹3.77 · 1,960 in stock | View |
 | 1N5819WS#C55544509R+O · SOD-323 | R+O | SOD-323 | On request | ₹2.94 · 0 in stock | View |
 | SMD14PBQ-TP#C22434906MCC · SOD-323HE-B | MCC | SOD-323HE-B | 2,040 | ₹7.38 · 2,040 in stock | View |
