NexperiaDatasheet (PDF)

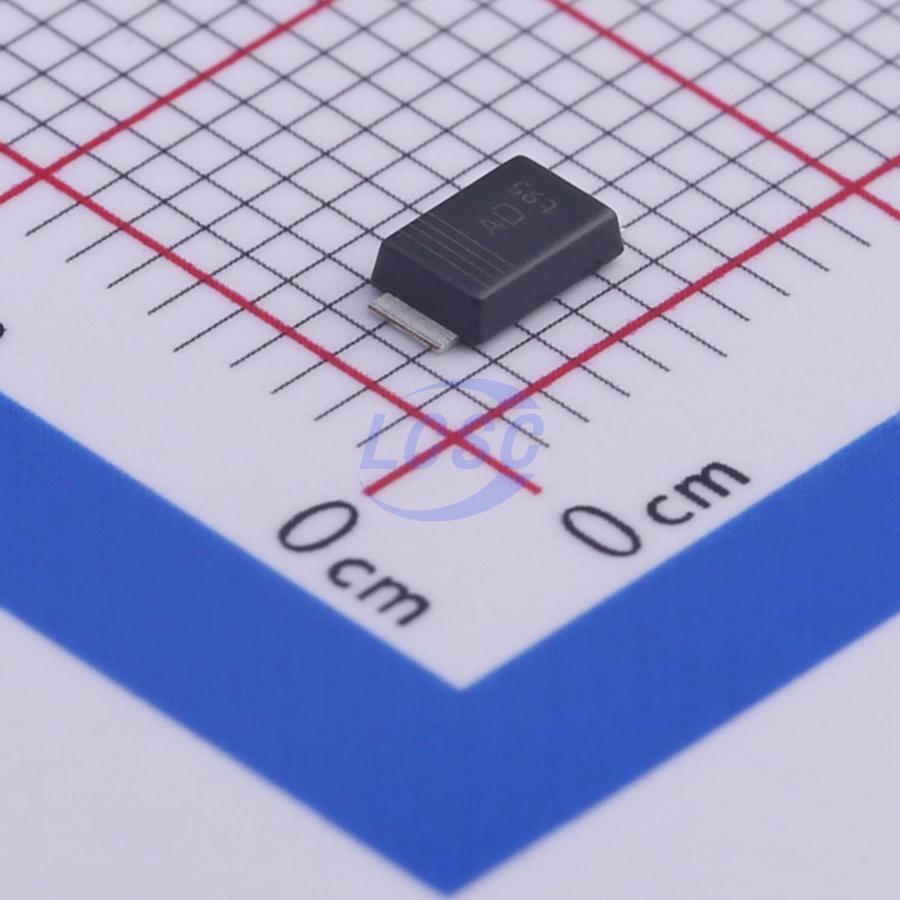

PMEG4020EP,115
Diode 40V 2A Surface Mount SOD-128
SOD-128ROHS3 CompliantActive
DIODE SCHOTTKY 40V SOD-128
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG4020EP,115
- Store part #
- C456125
- Package / case
- SOD-128
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
492 in stock
#C456125
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.10 | ₹57.10 |
| 10+ | ₹45.59 | ₹455.90 |
| 30+ | ₹40.60 | ₹1,218.00 |
| 100+ | ₹34.53 | ₹3,453.00 |
| 500+ | ₹28.23 | ₹14,115.00 |
| 1,000+ | ₹26.49 | ₹26,490.00 |
1 × ₹57.10
₹57.10
excl. GST
₹67.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG4020EP,115
₹57.10 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 490mV@2A
- Reverse Leakage Current (Ir)
- 100uA@40V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
Overview
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch Mode Power Supply (SMPS)
- Reverse polarity protection
- Low power consumption applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG4020EP-QX#C6148259Nexperia · SOD-128 | Nexperia | SOD-128 | 6 | ₹107.55 · 6 in stock | View |
 | RB060LAM-40TR#C253510ROHM · SOD-128 | ROHM | SOD-128 | 1,330 | ₹34.82 · 1,330 in stock | View |
 | PMEG4030ETP-QX#C5709683Nexperia · SOD-128 | Nexperia | SOD-128 | 100 | ₹65.65 · 100 in stock | View |
 | PMEG4030EP,115#C96234Nexperia · SOD-128 | Nexperia | SOD-128 | 28,280 | ₹38.41 · 28,280 in stock | View |
 | PMEG6020EP,115#C179433Nexperia · SOD-128 | Nexperia | SOD-128 | 4,785 | ₹25.30 · 4,785 in stock | View |
