NexperiaDatasheet (PDF)

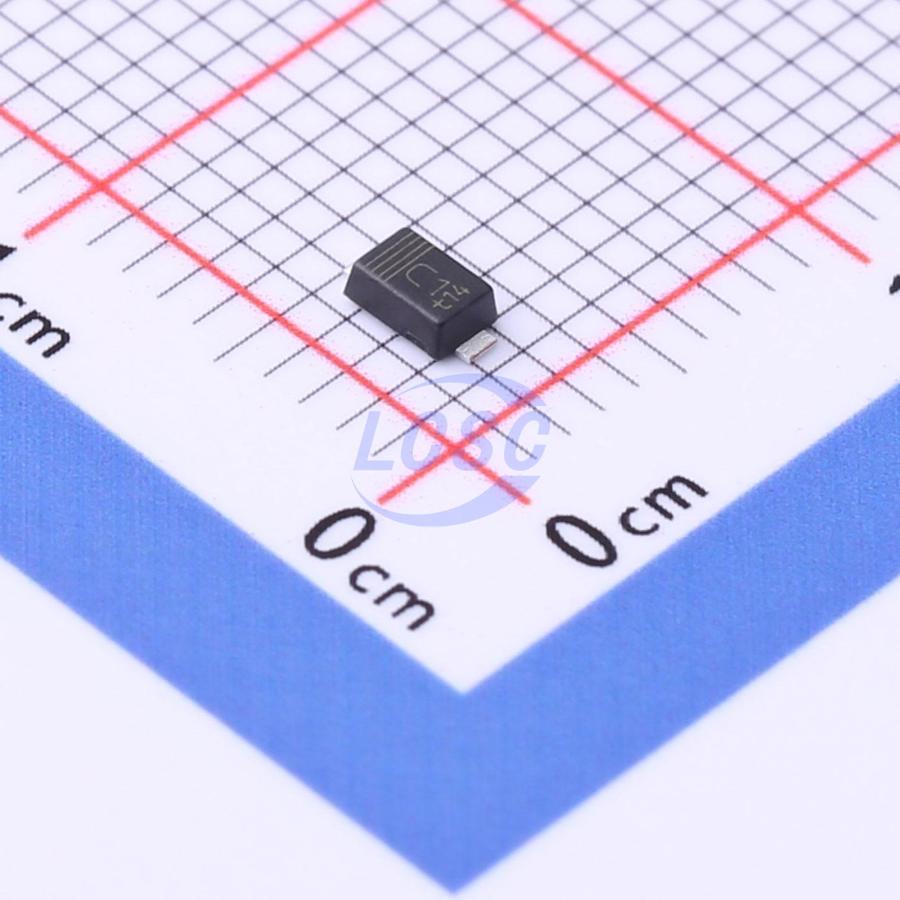

PMEG4020ETR,115
Diode 40V 2A Surface Mount SOD-123W
SOD-123WROHS3 CompliantActive
DIODE SCHOTTKY 40V SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG4020ETR,115
- Store part #
- C552913
- Package / case
- SOD-123W
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
173 in stock
#C552913
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹328.90 | ₹328.90 |
| 10+ | ₹312.59 | ₹3,125.90 |
| 30+ | ₹302.80 | ₹9,084.00 |
| 100+ | ₹293.00 | ₹29,300.00 |
| 500+ | ₹288.44 | ₹1,44,220.00 |
| 1,000+ | ₹271.69 | ₹2,71,690.00 |
1 × ₹328.90
₹328.90
excl. GST
₹388.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG4020ETR,115
₹328.90 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 490mV@2A
- Reverse Leakage Current (Ir)
- 100uA@40V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD123W small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Reverse polarity protection
- Low power consumption applications
- High temperature applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG4020ER,115#C255588Nexperia · SOD-123W | Nexperia | SOD-123W | 7,505 | ₹19.09 · 7,505 in stock | View |
 | SS2040FL#C268712PANJIT · SOD-123FL | PANJIT | SOD-123FL | 8,120 | ₹10.60 · 8,120 in stock | View |
 | MBR230S1F#C41408002TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 1,710 | ₹9.06 · 1,710 in stock | View |
 | S-LMBR240FT1G#C44457947LRC · SOD-123FL | LRC | SOD-123FL | 15 | ₹16.75 · 15 in stock | View |
 | PMEG3020ER-TP#C48886790TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,850 | ₹7.79 · 2,850 in stock | View |
