NexperiaDatasheet (PDF)

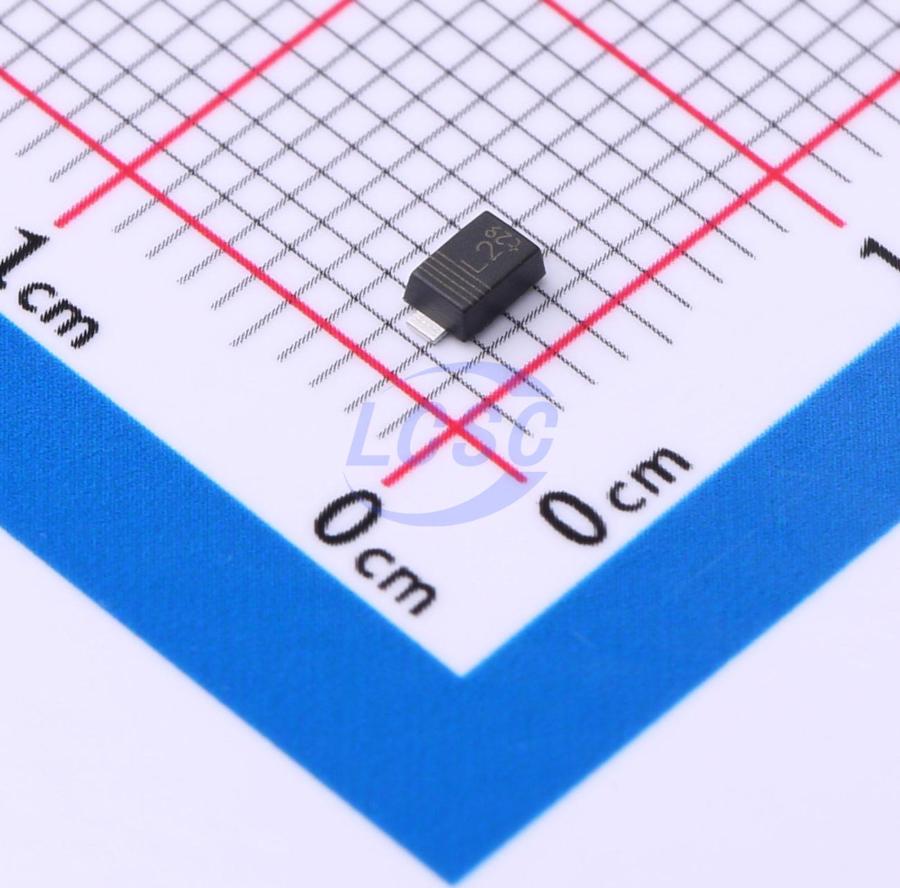

PMEG40T10ERX
Diode 1 Independent 40V 1A Surface Mount SOD-123W
SOD-123WROHS3 CompliantActive
DIODE SCHOTTKY 40V SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG40T10ERX
- Store part #
- C552916
- Package / case
- SOD-123W
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
470 in stock
#C552916
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.94 | ₹254.70 |
| 50+ | ₹40.34 | ₹2,017.00 |
| 150+ | ₹35.79 | ₹5,368.50 |
| 500+ | ₹30.12 | ₹15,060.00 |
| 3,000+ | ₹26.34 | ₹79,020.00 |
| 6,000+ | ₹24.82 | ₹1,48,920.00 |
5 × ₹50.94
₹254.70
excl. GST
₹300.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG40T10ERX
₹254.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 460mV@1A
- Reverse Leakage Current (Ir)
- 22uA@40V
- Non-Repetitive Peak Forward Surge Current
- 20A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Trench Maximum Efficiency General Application (MEGA) Schottky barrier rectifier encapsulated in a CFP3 (SOD123W) small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Freewheeling application
- Reverse polarity protection
- Low power consumption application
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B240S1F-7#C3001607DIODES · SOD-123F | DIODES | SOD-123F | 5 | ₹20.86 · 5 in stock | View |
 | CD123D-B140R#C6138798BOURNS · SOD-123 | BOURNS | SOD-123 | 100 | ₹93.83 · 100 in stock | View |
| XBS104V14R-G#C5295909TOREX · SOD-123 | TOREX | SOD-123 | 7 | ₹29.56 · 7 in stock | View | |
 | CRS04(TE85L,Q,M)#C6490158TOSHIBA · S-FLAT | TOSHIBA | S-FLAT | On request | ₹18.81 · 0 in stock | View |
 | SS14L#C5764085YFW · SOD-123FL | YFW | SOD-123FL | 3,350 | ₹2.29 · 3,350 in stock | View |
