NexperiaDatasheet (PDF)

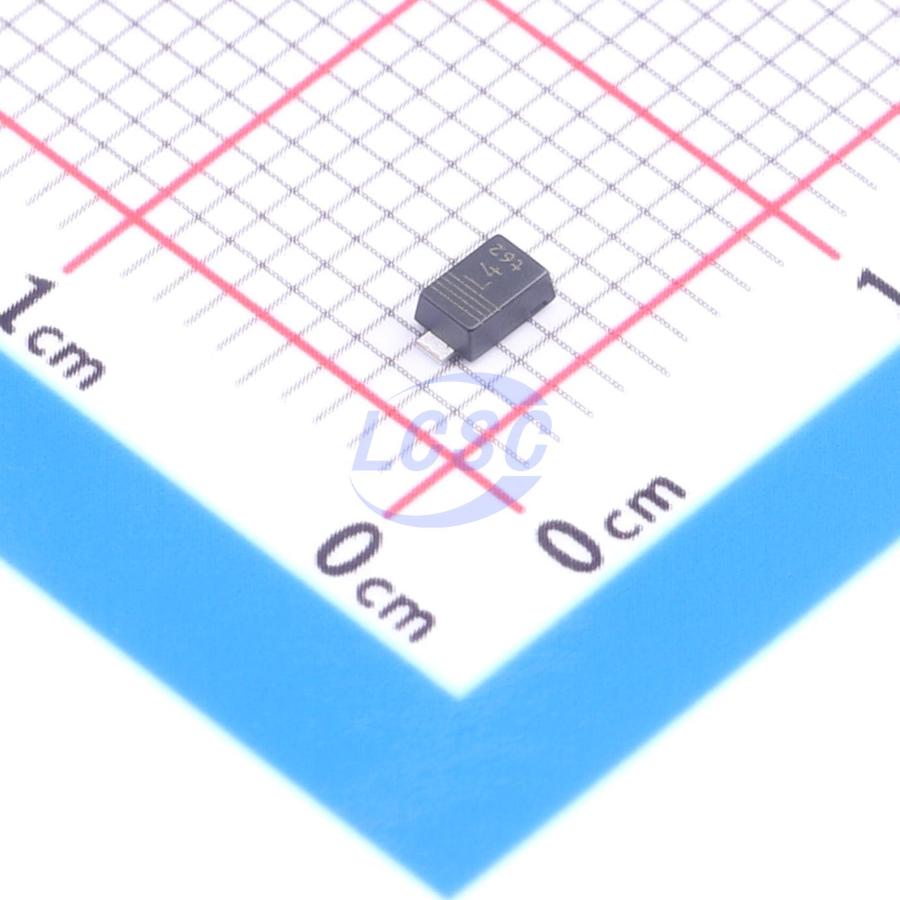

PMEG40T20ER-QX
SOT-23 Single Diodes RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG40T20ER-QX
- Store part #
- C7508910
- Package / case
- SOT-23
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C7508910
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.51 | ₹86.51 |
| 10+ | ₹69.34 | ₹693.40 |
| 30+ | ₹60.86 | ₹1,825.80 |
| 100+ | ₹52.39 | ₹5,239.00 |
| 500+ | ₹47.16 | ₹23,580.00 |
| 1,000+ | ₹44.56 | ₹44,560.00 |
1 × ₹86.51
₹86.51
excl. GST
₹102.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG40T20ER-QX
₹86.51 for 1 + GST
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
Trench Maximum Efficiency General Application (MEGA) Schottky barrier rectifier encapsulated in a CFP3 (SOD123W) small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Freewheeling application
- Reverse polarity protection
- Low power consumption application
Key features
- Average forward current: IF(AV) ≤ 2 A
- Reverse voltage: VR ≤ 40 V
- Low forward voltage
- Low leakage current due to Trench MEGA Schottky technology
- High power capability due to clip-bonding technology
- Small and flat lead SMD plastic package
- Suitable for both reflow and wave soldering
- Qualified according to AEC-Q101 and recommended for use in automotive applications
