NexperiaDatasheet (PDF)

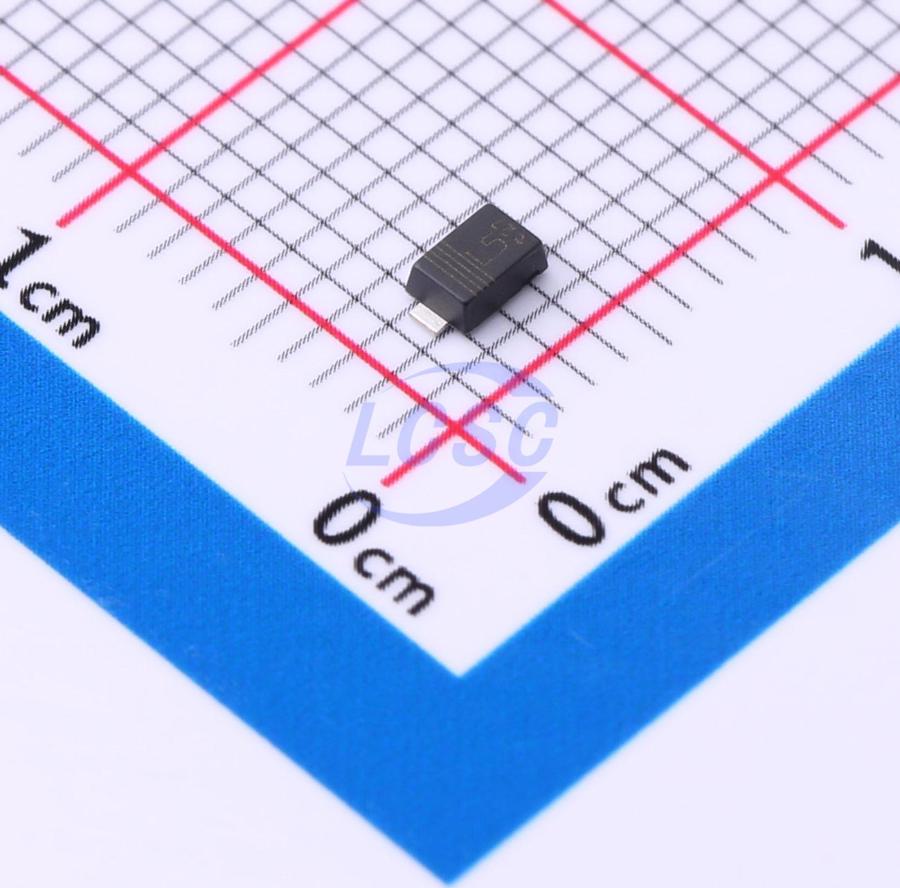

PMEG40T30ERX
Diode 40V 3A Surface Mount SOD-123W
SOD-123WROHS3 CompliantActive
DIODE SCHOTTKY 40V SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG40T30ERX
- Store part #
- C552920
- Package / case
- SOD-123W
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,793 in stock
#C552920
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.56 | ₹97.56 |
| 10+ | ₹74.96 | ₹749.60 |
| 30+ | ₹63.87 | ₹1,916.10 |
| 100+ | ₹52.59 | ₹5,259.00 |
| 500+ | ₹45.84 | ₹22,920.00 |
| 1,000+ | ₹42.38 | ₹42,380.00 |
1 × ₹97.56
₹97.56
excl. GST
₹115.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG40T30ERX
₹97.56 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 525mV@3A
- Reverse Leakage Current (Ir)
- 28uA@40V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
Trench Maximum Efficiency General Application (MEGA) Schottky barrier rectifier encapsulated in a CFP3 (SOD123W) small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Freewheeling application
- Reverse polarity protection
- Low power consumption application
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG40T30ER-QX#C6256029Nexperia · SOD-123W | Nexperia | SOD-123W | 2,043 | ₹56.56 · 2,043 in stock | View |
 | SKL34#C3758199DIOTEC · SOD-123FL | DIOTEC | SOD-123FL | 5 | ₹24.30 · 5 in stock | View |
 | DS34W#C47117528TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,320 | ₹5.04 · 2,320 in stock | View |
 | DSK34#C727076TWGMC · SOD-123FL | TWGMC | SOD-123FL | 5,49,700 | ₹4.31 · 5,49,700 in stock | View |
 | PMEG4030ER,115#C389355Nexperia · SOD-123 | Nexperia | SOD-123 | 10,775 | ₹36.38 · 10,775 in stock | View |
