NexperiaDatasheet (PDF)

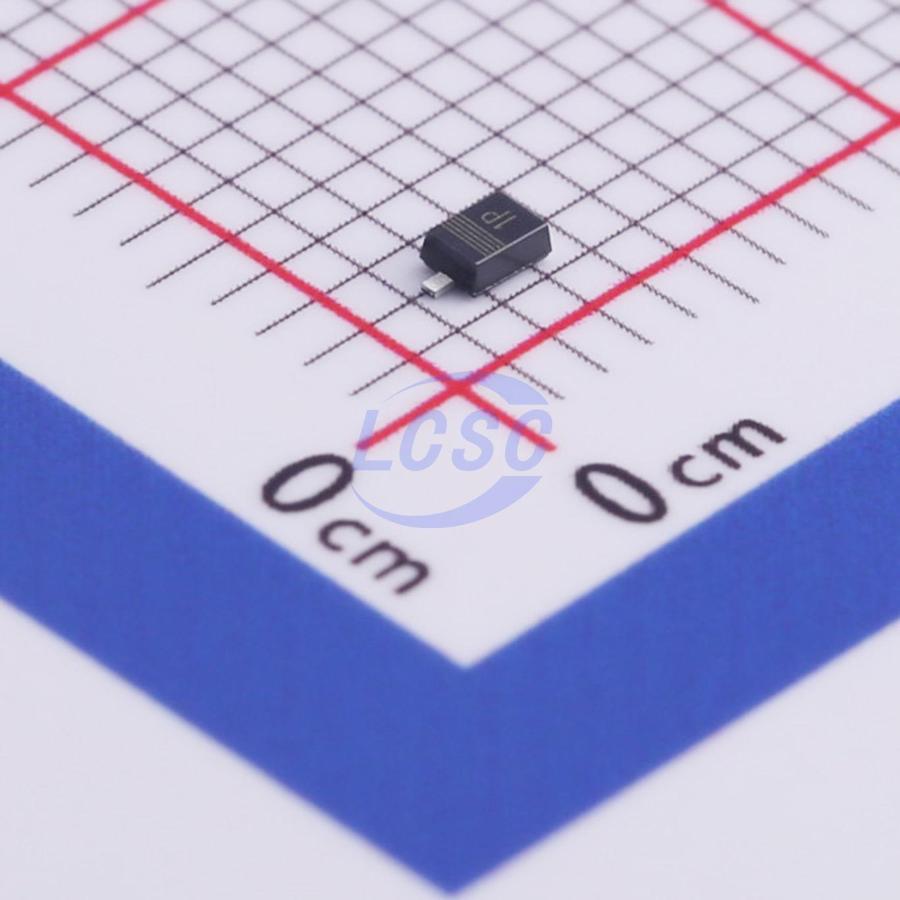

PMEG6002EJ,115
Diode 60V 200mA Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE SCHOTTKY 60V SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG6002EJ,115
- Store part #
- C455059
- Package / case
- SOD-323F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,930 in stock
#C455059
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.63 | ₹83.15 |
| 50+ | ₹13.03 | ₹651.50 |
| 150+ | ₹11.23 | ₹1,684.50 |
| 500+ | ₹9.88 | ₹4,940.00 |
| 3,000+ | ₹8.80 | ₹26,400.00 |
| 6,000+ | ₹8.26 | ₹49,560.00 |
5 × ₹16.63
₹83.15
excl. GST
₹98.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG6002EJ,115
₹83.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 600mV@200mA
- Reverse Leakage Current (Ir)
- 100uA@60V
- Non-Repetitive Peak Forward Surge Current
- 2.75A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in an SOD323F (SC- 90) very small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch Mode Power Supply (SMPS)
- Reverse polarity protection
- Ultra high-speed switching
- Low power consumption applications
Key features
- Average forward current: IF(AV) ≤ 0.2 A
- Reverse voltage: VR ≤ 60 V
- Low forward voltage
- Small and flat lead SMD plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B16WS#C20416649BORN · SOD-323 | BORN | SOD-323 | 7,320 | ₹3.39 · 7,320 in stock | View |
 | B16WS#C22374721DOWO · SOD-323 | DOWO | SOD-323 | 5,300 | ₹2.06 · 5,300 in stock | View |
 | B16WS#C364278MDD(Microdiode Semiconductor) · SOD-323 | MDD(Microdiode Semiconductor) | SOD-323 | 81,620 | ₹3.63 · 81,620 in stock | View |
 | FMSS1P6M3#C42411350FUXINSEMI · SOD-323 | FUXINSEMI | SOD-323 | 3,000 | ₹4.90 · 3,000 in stock | View |
 | B16WS#C42429518YFW · SOD-323 | YFW | SOD-323 | 860 | ₹3.32 · 860 in stock | View |
