NexperiaDatasheet (PDF)

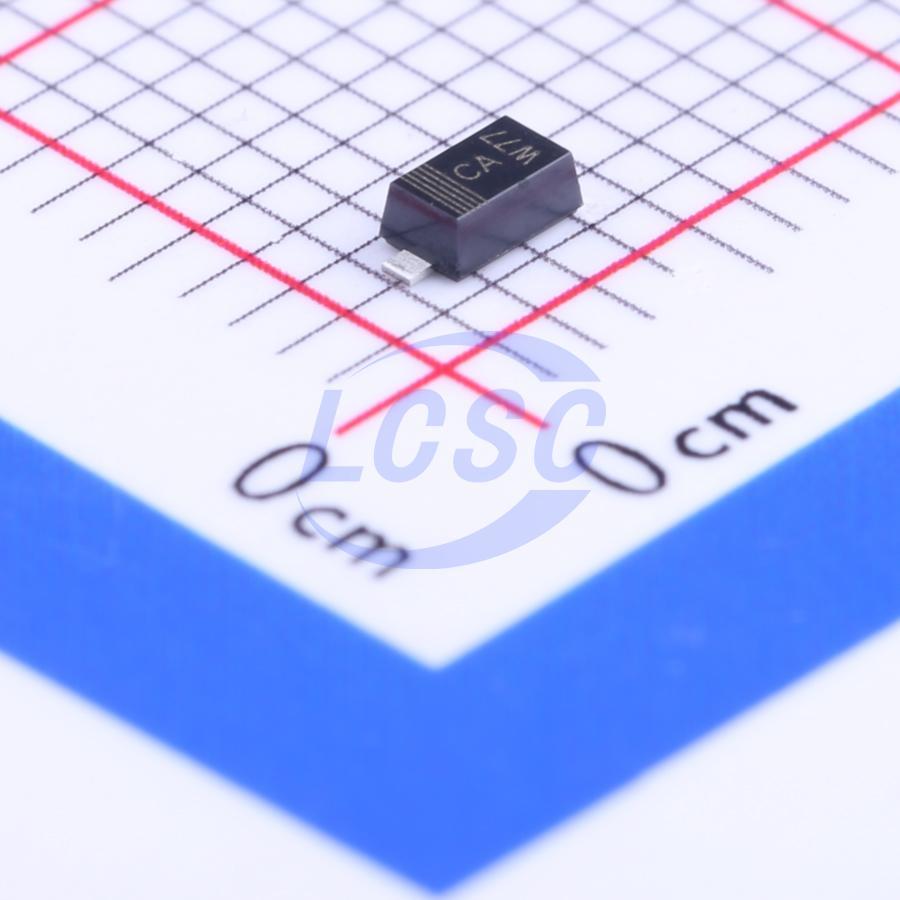

PMEG6010CEH,115
Diode 1 Independent 60V 1A Surface Mount SOD-123F
PopularSOD-123FROHS3 CompliantActive
DIODE SCHOTTKY 60V SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG6010CEH,115
- Store part #
- C110797
- Package / case
- SOD-123F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C110797
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.69 | ₹198.45 |
| 50+ | ₹29.37 | ₹1,468.50 |
| 150+ | ₹24.33 | ₹3,649.50 |
| 500+ | ₹19.83 | ₹9,915.00 |
| 3,000+ | ₹18.60 | ₹55,800.00 |
| 6,000+ | ₹17.86 | ₹1,07,160.00 |
5 × ₹39.69
₹198.45
excl. GST
₹234.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG6010CEH,115
₹198.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 660mV@1A
- Reverse Leakage Current (Ir)
- 50uA@60V
- Non-Repetitive Peak Forward Surge Current
- 9A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Overview
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small and flat lead Surface- Mounted Device (SMD) plastic packages.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Reverse polarity protection
- Low power consumption applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG6010CEH-QX#C5311567Nexperia · SOD-123F | Nexperia | SOD-123F | 8,755 | ₹36.00 · 8,755 in stock | View |
 | DSS16UTR#C22407046SMC · SOD-123FL | SMC | SOD-123FL | 5,620 | ₹5.68 · 5,620 in stock | View |
 | S16Q#C5339860YANGJIE · SOD-123 | YANGJIE | SOD-123 | 3,870 | ₹7.37 · 3,870 in stock | View |
 | RB060M-60TR#C114257ROHM · SOD-123F | ROHM | SOD-123F | 905 | ₹12.58 · 905 in stock | View |
 | RB060MM-60TFTR#C7461334ROHM · SOD-123F | ROHM | SOD-123F | 1,640 | ₹24.65 · 1,640 in stock | View |
