NexperiaDatasheet (PDF)

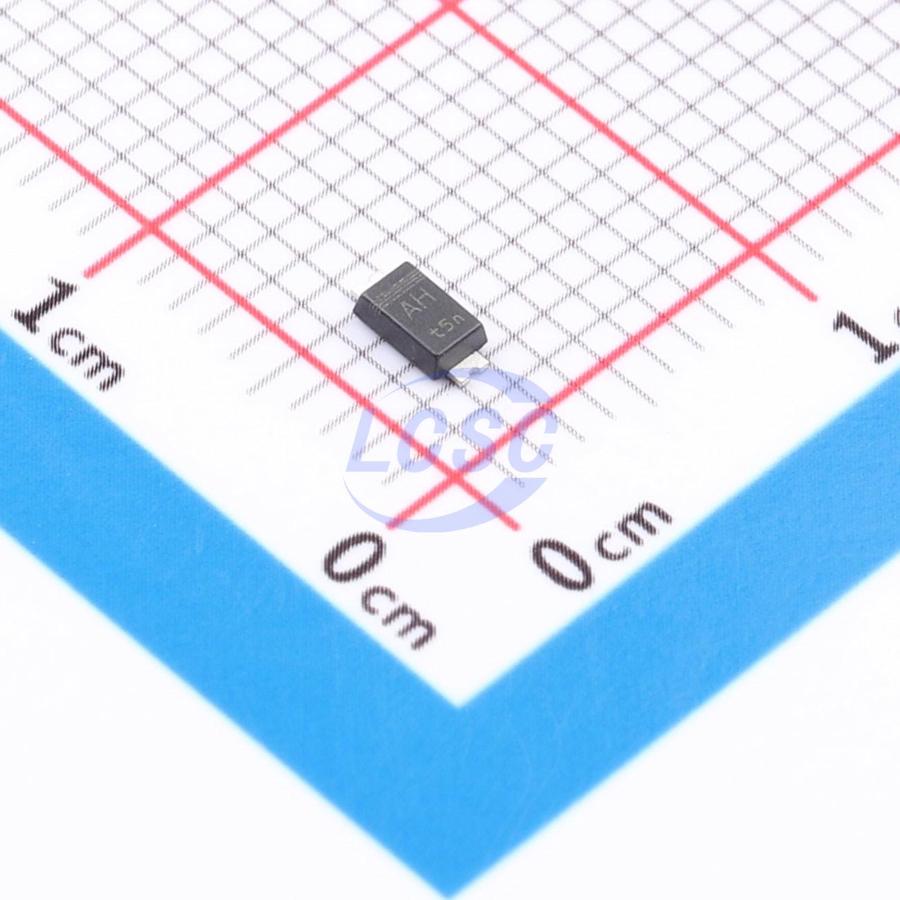

PMEG6010EXEX
60V 1 Independent 1A SOD-123HP Single Diodes RoHS
SOD-123HPROHS CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG6010EXEX
- Store part #
- C29415184
- Package / case
- SOD-123HP
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
155 in stock
#C29415184
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.52 | ₹82.60 |
| 50+ | ₹16.11 | ₹805.50 |
| 150+ | ₹15.85 | ₹2,377.50 |
| 500+ | ₹15.58 | ₹7,790.00 |
5 × ₹16.52
₹82.60
excl. GST
₹97.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG6010EXEX
₹82.60 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 0.75W;1.3W
- Voltage - Forward(Vf@If)
- 475mV@0.5A;530mV@1A
- Reverse Leakage Current (Ir)
- 60uA@60V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
Planar Schottky barrier rectifier in CFP3-HP power flat-lead SMT plastic package.
Applications
- Low-voltage rectification
- High-efficiency DC-DC conversion
- Switch-mode power supplies
- Reverse polarity protection
- Low-power applications
Key features
- Low forward voltage
- Low leakage current
- High surge current robustness
- Clip-bond package with high power capability; power flat-lead plastic package with exposed heatsink for optimized thermal connection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PMEG6010EXE-QX#C25767852Nexperia · SOD-123HP | Nexperia | SOD-123HP | 10 | ₹14.20 · 10 in stock | View | |
 | PMEG6010ER,115#C456121Nexperia · SOD-123W | Nexperia | SOD-123W | 25,190 | ₹22.28 · 25,190 in stock | View |
 | PMEG6010ETR,115#C552936Nexperia · SOD-123W | Nexperia | SOD-123W | 15 | ₹64.54 · 15 in stock | View |
 | PMEG6030CER-QX#C23122428Nexperia · SOD-123W | Nexperia | SOD-123W | 345 | ₹63.13 · 345 in stock | View |
 | PMEG6030EXE-QX#C29247580Nexperia · SOD-123HP | Nexperia | SOD-123HP | 100 | ₹43.05 · 100 in stock | View |
