NexperiaDatasheet (PDF)

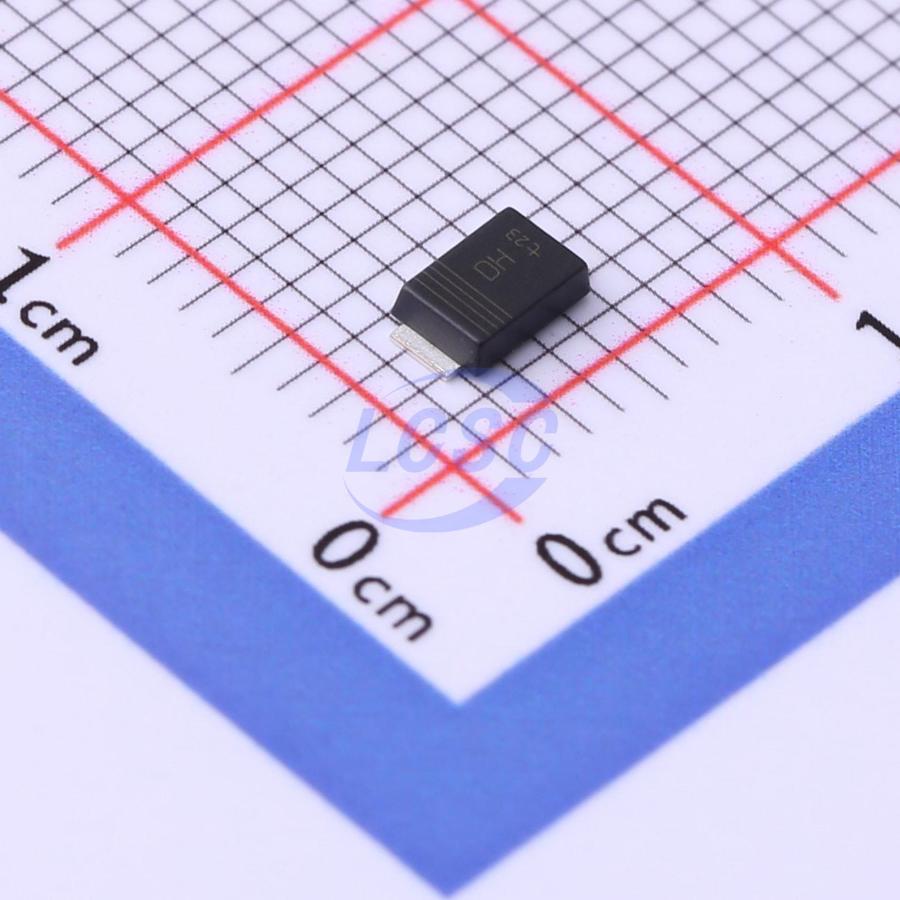

PMEG6030ELPX
Diode Independent 60V 3A Surface Mount SOD-128
SOD-128ROHS3 CompliantActive
DIODE SCHOTTKY 60V SOD-128
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG6030ELPX
- Store part #
- C2908821
- Package / case
- SOD-128
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,197 in stock
#C2908821
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.65 | ₹53.65 |
| 10+ | ₹41.93 | ₹419.30 |
| 30+ | ₹36.92 | ₹1,107.60 |
| 100+ | ₹30.85 | ₹3,085.00 |
| 500+ | ₹28.02 | ₹14,010.00 |
| 1,000+ | ₹25.85 | ₹25,850.00 |
1 × ₹53.65
₹53.65
excl. GST
₹63.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG6030ELPX
₹53.65 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 600mV@3A
- Reverse Leakage Current (Ir)
- 340nA@60V
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
Overview
Planar Schottky barrier rectifier with integrated guard ring for stress protection, housed in SOD128 small flat lead SMD plastic package.
Applications
- Low-voltage rectification
- High-efficiency DC-to-DC conversion
- Switch-mode power supplies
- Reverse polarity protection
- Low-power applications
Key features
- Ultra-low leakage current IR = 340 nA
- Average forward current: IF(AV) ≤ 3 A
- Reverse voltage: VR ≤ 60 V
- Low forward voltage VF = 600 mV
- High power capability due to clip bonding technology
- High junction temperature TJ ≤ 175 °C
- Small flat lead SMD plastic package
- Suitable for reflow and wave soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STPS360AFY#C5268312ST · SOD-128 | ST | SOD-128 | 330 | ₹28.50 · 330 in stock | View |
 | YQ5LAM10ETR#C25737936ROHM · SOD-128 | ROHM | SOD-128 | 161 | ₹49.11 · 161 in stock | View |
 | CMS15(TE12L,Q,M)#C5599368TOSHIBA · SOD-128 | TOSHIBA | SOD-128 | 15 | ₹203.12 · 15 in stock | View |
| PMEG60T30ELP-QX#C7029121Nexperia · SOD-128 | Nexperia | SOD-128 | 424 | ₹103.62 · 424 in stock | View | |
 | RB050LAM-60TR#C2837810ROHM · SOD-128 | ROHM | SOD-128 | 1,715 | ₹33.96 · 1,715 in stock | View |
