NexperiaDatasheet (PDF)

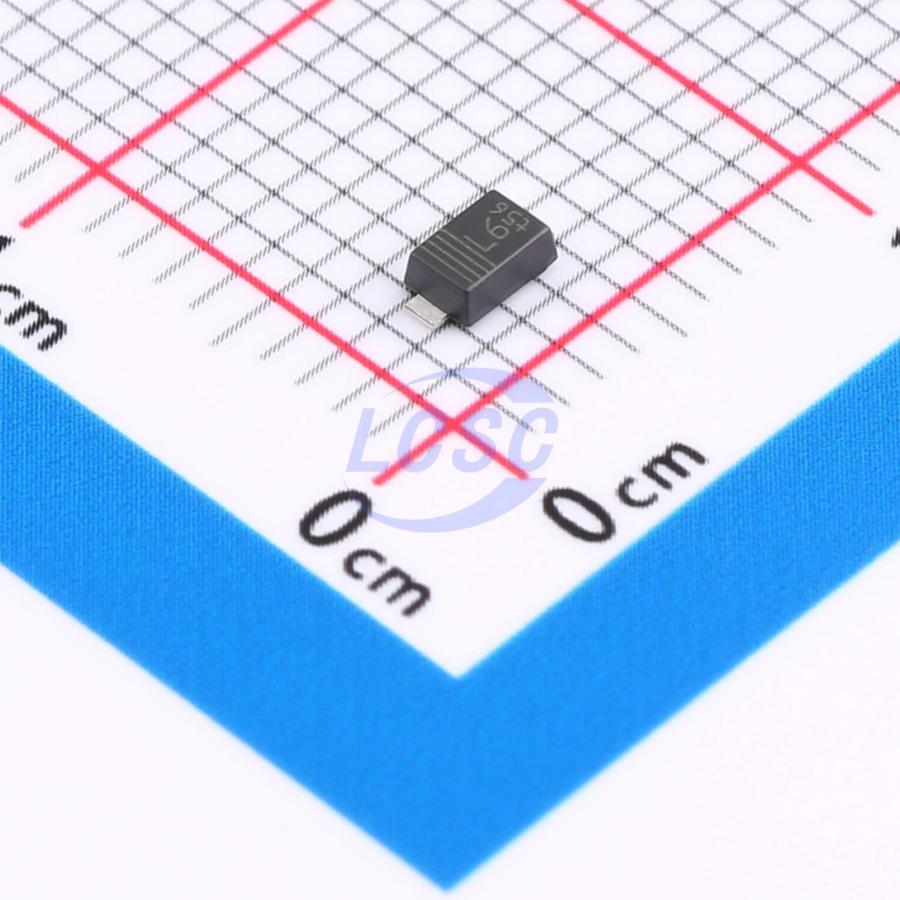

PMEG60T10ELRX
Diode 60V 1A Surface Mount SOD-123W
SOD-123WROHS3 CompliantActive
DIODE SCHOTTKY 60V SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG60T10ELRX
- Store part #
- C552945
- Package / case
- SOD-123W
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,664 in stock
#C552945
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.99 | ₹67.99 |
| 10+ | ₹53.00 | ₹530.00 |
| 30+ | ₹46.70 | ₹1,401.00 |
| 100+ | ₹38.67 | ₹3,867.00 |
| 500+ | ₹35.19 | ₹17,595.00 |
| 1,000+ | ₹33.02 | ₹33,020.00 |
1 × ₹67.99
₹67.99
excl. GST
₹80.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG60T10ELRX
₹67.99 for 1 + GST
Specifications
- Diode Configuration
- Standalone
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 600mV@1A
- Reverse Leakage Current (Ir)
- 650nA@60V
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
Trench Maximum Efficiency General Application (MEGA) Schottky barrier rectifier encapsulated in a CFP3 (SOD123W) small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Freewheeling application
- Reverse polarity protection
- Low power consumption application
Key features
- Average forward current: IF(AV) ≤ 1 A
- Reverse voltage: VR ≤ 60 V
- Low forward voltage
- Low leakage current due to Trench MEGA Schottky technology
- High power capability due to clip-bonding technology
- Small and flat lead SMD power plastic package
- Suitable for both reflow and wave soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG6020AELRX#C552938Nexperia · SOD-123W | Nexperia | SOD-123W | 65 | ₹25.68 · 65 in stock | View |
 | SL110#C698817YANGJIE · SOD-123 | YANGJIE | SOD-123 | 340 | ₹9.37 · 340 in stock | View |
 | SL310#C698821YANGJIE · SOD-123FL | YANGJIE | SOD-123FL | 1,855 | ₹26.01 · 1,855 in stock | View |
 | PMEG60T20ELR-QX#C6629174Nexperia · SOD-123W | Nexperia | SOD-123W | 183 | ₹86.33 · 183 in stock | View |
 | DSK16L#C27975285LGE · SOD-123FL | LGE | SOD-123FL | 2,360 | ₹3.72 · 2,360 in stock | View |
