JSMSEMIDatasheet (PDF)

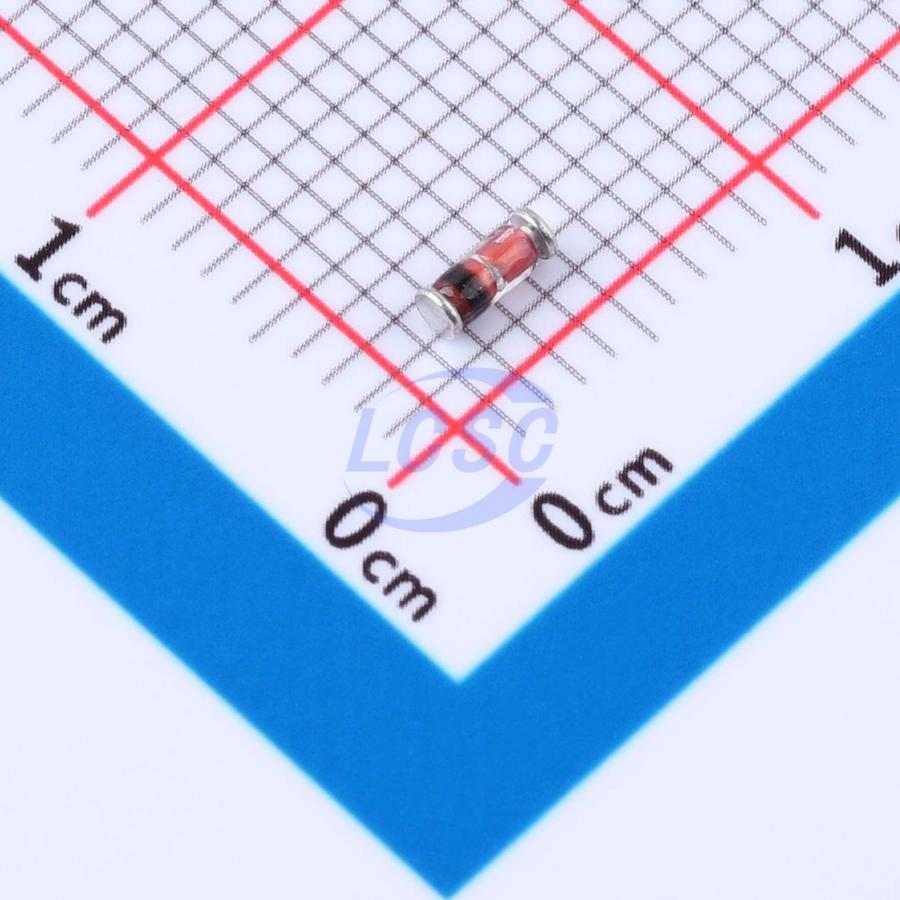

PMLL4148L-JSM
4ns 1 Independent 75V 1V@10mA 150mA SOD-80C Single Diodes RoHS
SOD-80CROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PMLL4148L-JSM
- Store part #
- C53114083
- Package / case
- SOD-80C
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C53114083
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.83 | ₹91.50 |
| 500+ | ₹1.44 | ₹720.00 |
| 3,000+ | ₹1.23 | ₹3,690.00 |
| 6,000+ | ₹1.10 | ₹6,600.00 |
| 24,000+ | ₹0.9393 | ₹22,543.20 |
| 51,000+ | ₹0.8732 | ₹44,533.20 |
50 × ₹1.83
₹91.50
excl. GST
₹107.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMLL4148L-JSM
₹91.50 for 50 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Pd - Power Dissipation
- 500mW
- Voltage - Forward(Vf@If)
- 1V@10mA
- Reverse Leakage Current (Ir)
- 25nA
- Current - Rectified
- 150mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.049 g
Overview
Key features
- Silicon epitaxial diode
- High-speed switching diode
- 500mW power dissipation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LL4148#C2857181JSMSEMI · MiniMELF | JSMSEMI | MiniMELF | 1,25,500 | ₹1.12 · 1,25,500 in stock | View |
 | PMLL4148L,115-JSM#C53113923JSMSEMI · SOD-80C | JSMSEMI | SOD-80C | 7,450 | ₹1.83 · 7,450 in stock | View |
