PNE20010ERX
25ns 1 Independent 200V 930mV@1A 1A SOD-123W Single Diodes RoHS
SOD-123WROHS3 CompliantActive

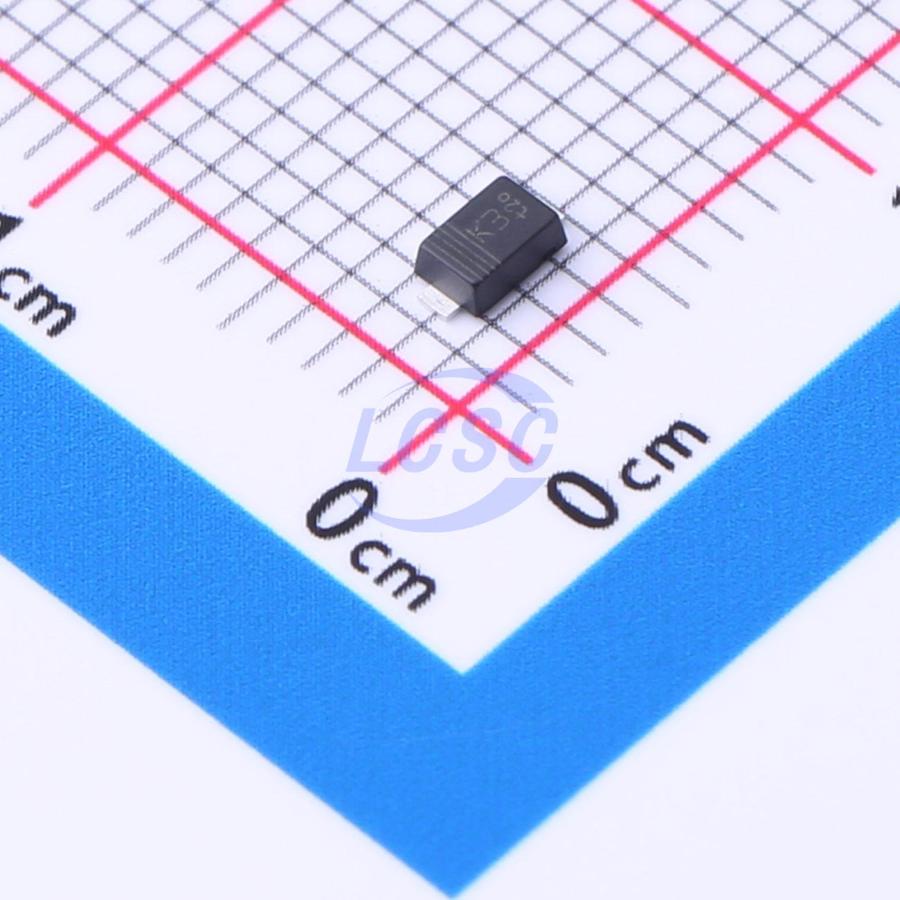

200 V, 1 A hyperfast recovery rectifier
- Manufacturer
- Nexperia
- Manufacturer part #
- PNE20010ERX
- Store part #
- C295449
- Package / case
- SOD-123W
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
463 in stock
#C295449
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.00 | ₹58.00 |
| 10+ | ₹45.41 | ₹454.10 |
| 30+ | ₹39.97 | ₹1,199.10 |
| 100+ | ₹33.23 | ₹3,323.00 |
| 500+ | ₹30.19 | ₹15,095.00 |
| 1,000+ | ₹28.25 | ₹28,250.00 |
1 × ₹58.00
₹58.00
excl. GST
₹68.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PNE20010ERX
₹58.00 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 25ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Pd - Power Dissipation
- 882mW
- Voltage - Forward(Vf@If)
- 930mV@1A
- Reverse Leakage Current (Ir)
- 200nA
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.027 g
Overview
High power density, hyperfast recovery rectifier with high-efficiency planar technology, encapsulated in a small and flat lead SOD123W Surface-Mounted Device (SMD) plastic package.
Applications
- General-purpose rectification
- Reverse polarity protection
- Hyperfast switching
- Freewheeling applications
Key features
- Reverse voltage VR ≤ 200 V
- Forward current IF ≤ 1 A
- Hyperfast recovery time tfr ≤ 25 ns
- Pt doped lifetime control
- Low inductance
- Small and flat lead SMD plastic package
- Package height typ. 1 mm
- High power capability due to clip-bond technology
- Planar die design
- Capable for reflow and wave soldering
