NexperiaDatasheet (PDF)
PNE20020EPX
10ns 1 Independent 200V 880mV@2A 2A SOD-128 Single Diodes RoHS
SOD-128ROHS3 CompliantActive

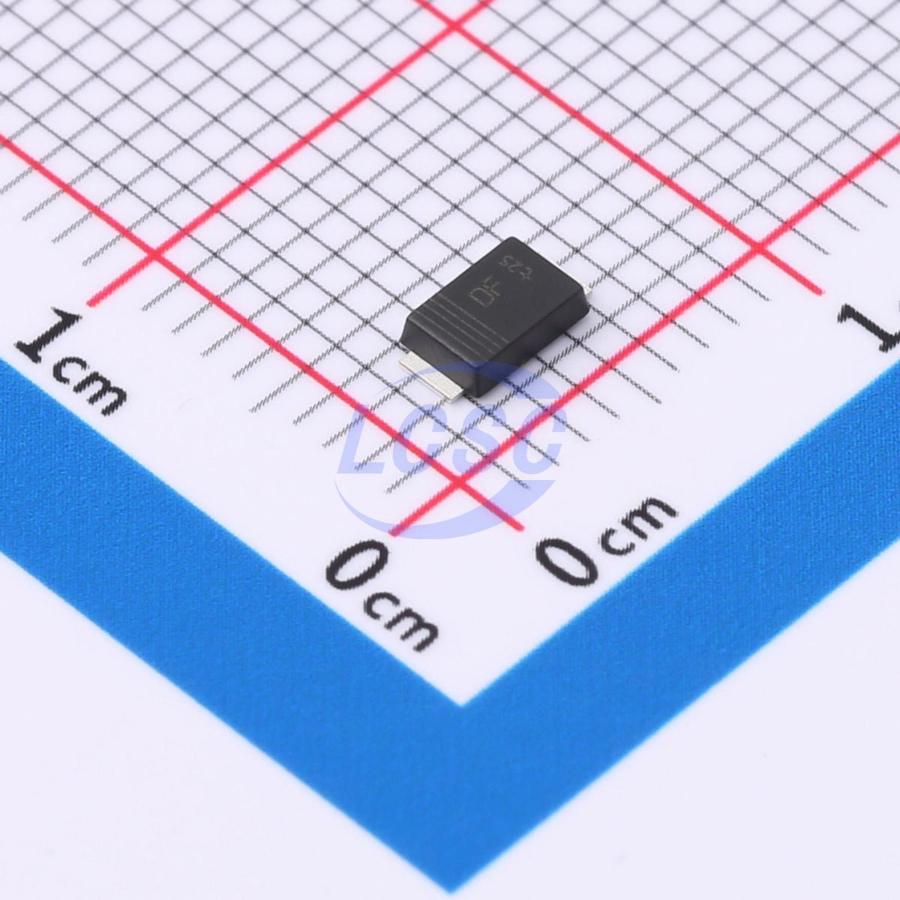

Diode 200V 2A SOD-128
- Manufacturer
- Nexperia
- Manufacturer part #
- PNE20020EPX
- Store part #
- C547304
- Package / case
- SOD-128
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
515 in stock
#C547304
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.25 | ₹121.25 |
| 50+ | ₹19.08 | ₹954.00 |
| 150+ | ₹16.86 | ₹2,529.00 |
| 500+ | ₹14.09 | ₹7,045.00 |
| 3,000+ | ₹12.24 | ₹36,720.00 |
| 6,000+ | ₹11.51 | ₹69,060.00 |
5 × ₹24.25
₹121.25
excl. GST
₹143.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PNE20020EPX
₹121.25 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 10ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 880mV@2A
- Reverse Leakage Current (Ir)
- 1uA@200V
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.076 g
Overview
High power density, ultra-fast recovery rectifier utilizing efficient planar technology, housed in a compact flat-lead CFP5 (SOD128) SMD plastic package.
Applications
- General-purpose rectification
- Reverse polarity protection
- Ultrafast switching
- Freewheeling applications
Key features
- Reverse voltage VR ≤ 200V
- Forward current IF ≤ 2A
- Switching time trr ≤ 25 ns
- Platinum-doped lifetime control
- Low inductance
- Small flat-lead SMD plastic package
- Typical package height 1 mm
- High power capability due to clip-bonding technology
- Planar die design
- Compatible with reflow and wave soldering
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PNE20030EPX#C547305Nexperia · SOD-128 | Nexperia | SOD-128 | 6,770 | ₹32.53 · 6,770 in stock | View |
 | RF201LAM2STR#C509969ROHM · SOD-128 | ROHM | SOD-128 | 2,940 | ₹28.72 · 2,940 in stock | View |
 | RF201LAM2STFTR#C5336540ROHM · SOD-128 | ROHM | SOD-128 | 13 | ₹71.05 · 13 in stock | View |
 | STTH2R02AFY#C2970165ST · SOD-128 | ST | SOD-128 | 212 | ₹55.95 · 212 in stock | View |
 | STTH3R02AFY#C2970181ST · SOD-128 | ST | SOD-128 | 11 | ₹114.48 · 11 in stock | View |
