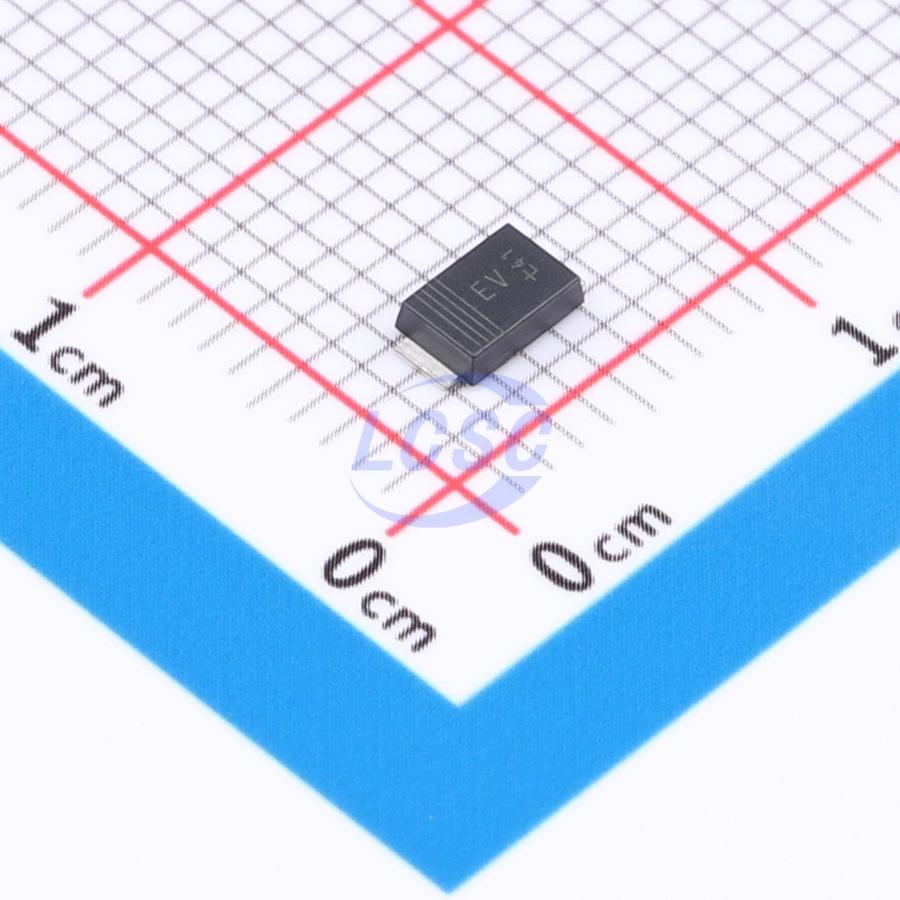

PNU65020EP-QX
650V 1.2V@2A 2A SOD-128 Single Diodes RoHS
SOD-128ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PNU65020EP-QX
- Store part #
- C20235870
- Package / case
- SOD-128
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C20235870
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.13 | ₹64.13 |
| 10+ | ₹62.60 | ₹626.00 |
| 30+ | ₹61.52 | ₹1,845.60 |
| 100+ | ₹60.42 | ₹6,042.00 |
1 × ₹64.13
₹64.13
excl. GST
₹75.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PNU65020EP-QX
₹64.13 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.2V@2A
- Reverse Leakage Current (Ir)
- 1uA@650V
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.087 g
Overview
High power density, ultra-fast switching recovery rectifier using high-efficiency planar technology, housed in a compact flat-lead CFP5 (SOD128) SMD plastic package.
Applications
- On-board charger
- DC/DC converter
- AC/DC converter
- Battery heating/cooling
- Inverter
- Freewheeling applications
Key features
- Reverse voltage VR ≤ 650 V
- Forward current IF ≤ 2 A
- Typical reverse recovery time trr of 35 ns
- Platinum-doped lifetime control
- Low inductance
- Power flat-lead SMD plastic package
- Clip-bonding technology for high power capability
- Planar die design
- AEC-Q101 qualified, recommended for automotive applications
