NexperiaDatasheet (PDF)

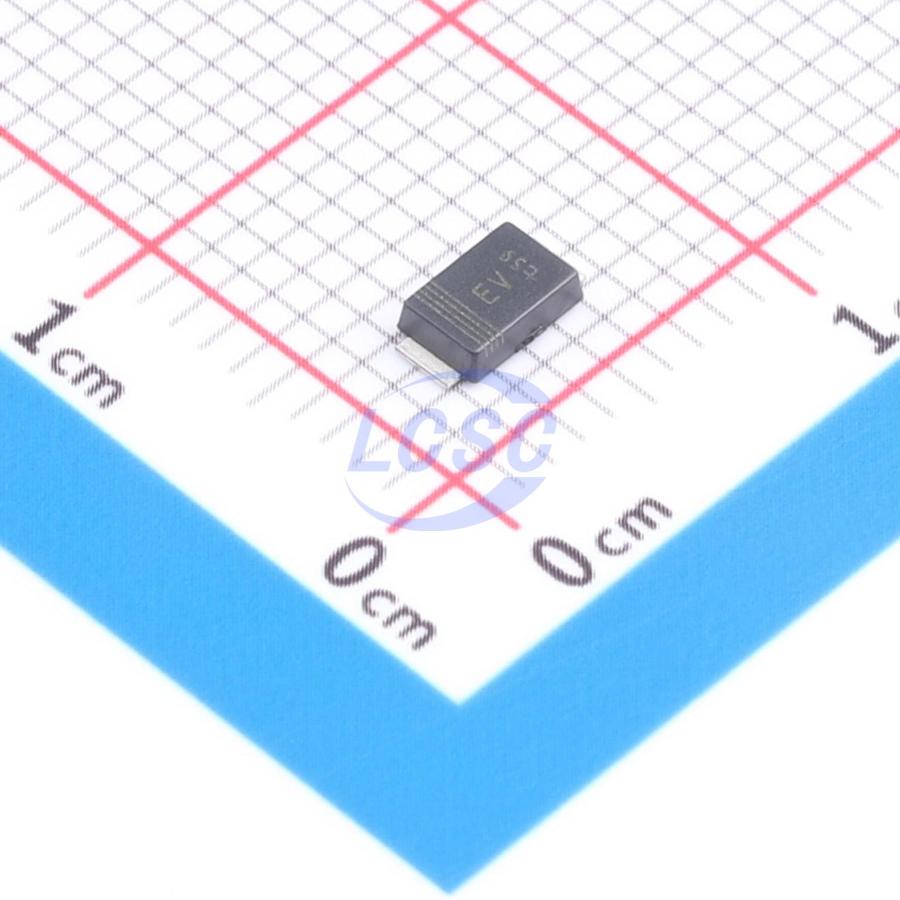

PNU65020EPX
35ns 1 Independent 650V 1.2V@2A 2A SOD-128 Single Diodes RoHS
SOD-128ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PNU65020EPX
- Store part #
- C20235871
- Package / case
- SOD-128
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C20235871
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.73 | ₹61.73 |
| 10+ | ₹60.21 | ₹602.10 |
| 30+ | ₹59.34 | ₹1,780.20 |
| 100+ | ₹58.25 | ₹5,825.00 |
1 × ₹61.73
₹61.73
excl. GST
₹72.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PNU65020EPX
₹61.73 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Pd - Power Dissipation
- 0.81W
- Voltage - Forward(Vf@If)
- 1.2V@2A
- Reverse Leakage Current (Ir)
- 1uA@650V
- Non-Repetitive Peak Forward Surge Current
- 60A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.089 g
Overview
High power density, ultra-fast switching recovery rectifier utilizing advanced planar technology, housed in a compact flat-lead CFP5 (SOD128) SMD plastic package.
Applications
- AC/DC converters
- Switching power supplies/UPS
- Battery chargers
- Inverters
- Freewheeling applications
Key features
- Reverse voltage VR ≤ 650 V
- Forward current IF ≤ 2 A
- Typical switching time trr of 35 ns
- Platinum-doped lifetime control
- Low inductance
- Power flat lead SMD plastic package
- High power capability with clip bonding technology
- Planar die design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| HS2KFS#C17534246Taiwan Semiconductor · SOD-128 | Taiwan Semiconductor | SOD-128 | On request | ₹13.80 · 0 in stock | View | |
| RS2KFS#C17485941Taiwan Semiconductor · SOD-128 | Taiwan Semiconductor | SOD-128 | On request | ₹9.38 · 0 in stock | View | |
| RS2MFS#C17455787Taiwan Semiconductor · SOD-128 | Taiwan Semiconductor | SOD-128 | On request | ₹11.15 · 0 in stock | View | |
| RS2MFSH#C20422989Taiwan Semiconductor · SOD-128 | Taiwan Semiconductor | SOD-128 | On request | ₹9.67 · 0 in stock | View | |
| RS2KFSH#C19854065Taiwan Semiconductor · SOD-128 | Taiwan Semiconductor | SOD-128 | On request | ₹9.67 · 0 in stock | View | |
