YAGEODatasheet (PDF)

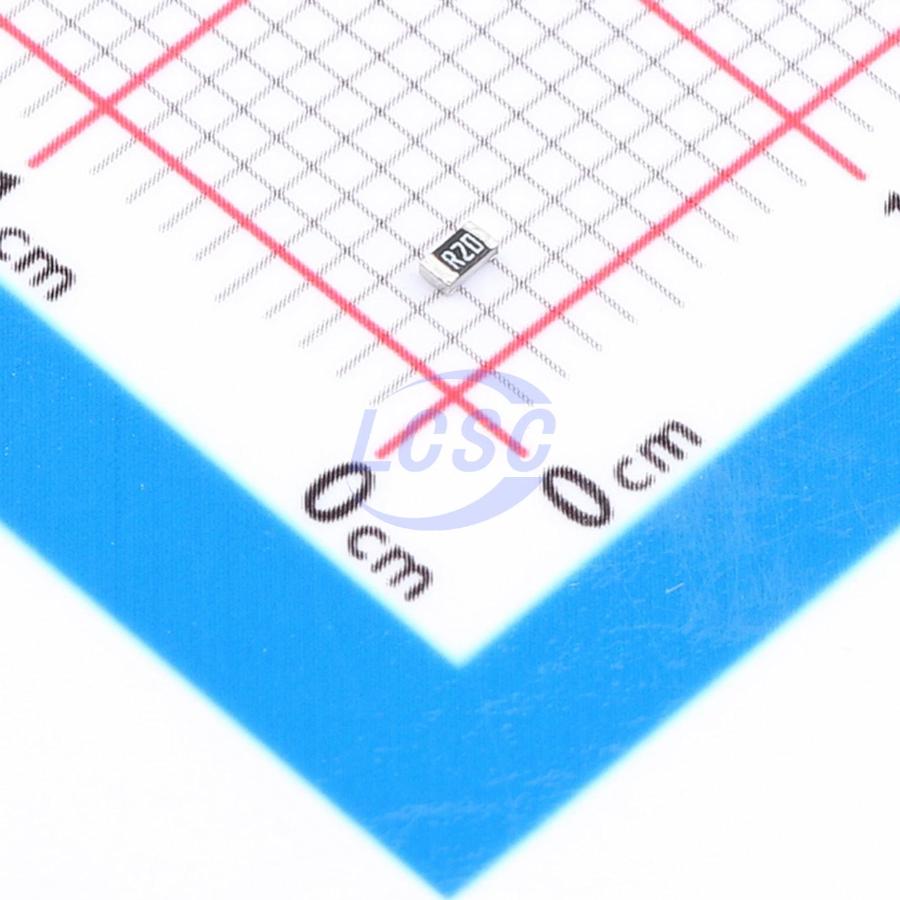

PT0603FR-7W0R2L
200mW 200mΩ Thick Film Resistor ±1% ±200ppm/℃ 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 0.2Ω ±1% 200mW 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0603FR-7W0R2L
- Store part #
- C858645
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C858645
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.53 | ₹70.60 |
| 200+ | ₹2.84 | ₹568.00 |
| 600+ | ₹2.46 | ₹1,476.00 |
| 5,000+ | ₹2.22 | ₹11,100.00 |
| 10,000+ | ₹2.02 | ₹20,200.00 |
| 20,000+ | ₹1.92 | ₹38,400.00 |
20 × ₹3.53
₹70.60
excl. GST
₹83.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0603FR-7W0R2L
₹70.60 for 20 + GST
Specifications
- Power(Watts)
- 200mW
- Resistance
- 200mΩ
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- ±200ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CS03W5F200LT5E#C2771761UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | ₹2.50 · 0 in stock | View |
 | RCWE0603R200FKEA#C2075835VISHAY · 0603 | VISHAY | 0603 | 4,865 | ₹18.19 · 4,865 in stock | View |
| SR731JRTTDR200F#C7084283KOA · 0603 | KOA | 0603 | On request | ₹48.73 · 0 in stock | View | |
| RLC16-R200FTP#C2597580KAMAYA · 0603 | KAMAYA | 0603 | On request | ₹4.93 · 0 in stock | View | |
| UCR03EVPFLR200#C4163917ROHM · 0603 | ROHM | 0603 | On request | ₹18.24 · 0 in stock | View | |
