YAGEODatasheet (PDF)

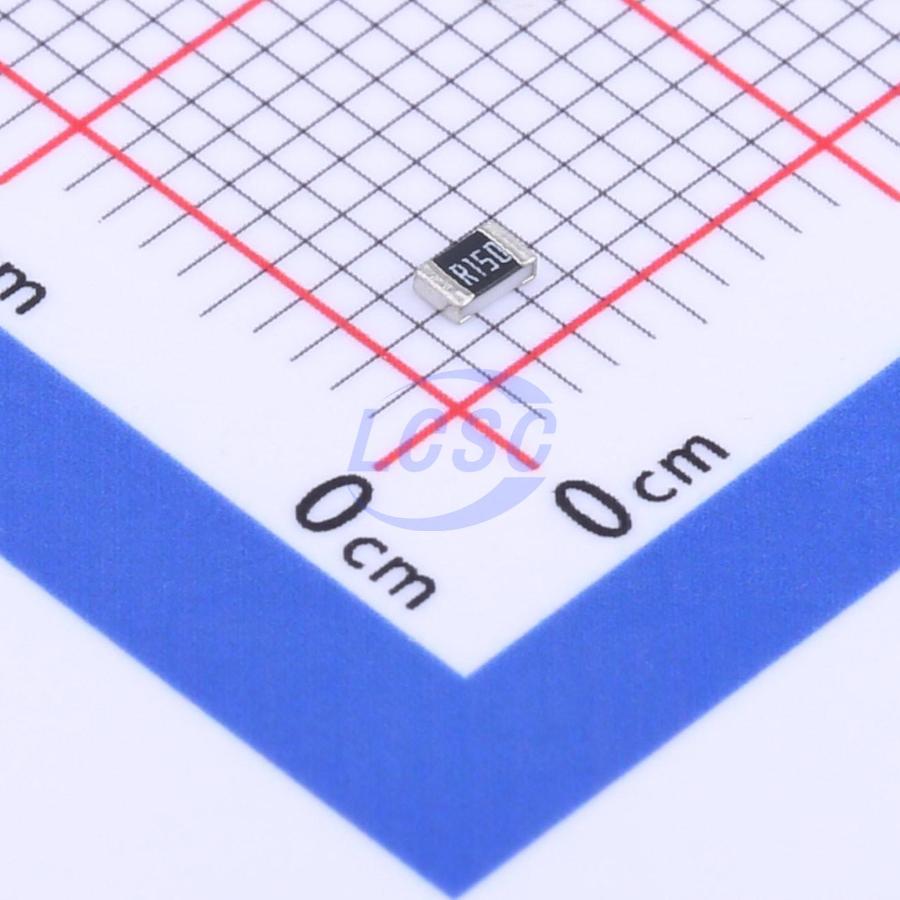

PT0805FR-7W0R15L
150mΩ 250mW Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0.15Ω ±1% 0.25W 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0805FR-7W0R15L
- Store part #
- C914842
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,680 in stock
#C914842
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.41 | ₹108.20 |
| 200+ | ₹4.31 | ₹862.00 |
| 600+ | ₹3.69 | ₹2,214.00 |
| 5,000+ | ₹3.33 | ₹16,650.00 |
| 10,000+ | ₹3.02 | ₹30,200.00 |
| 20,000+ | ₹2.84 | ₹56,800.00 |
20 × ₹5.41
₹108.20
excl. GST
₹127.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0805FR-7W0R15L
₹108.20 for 20 + GST
Specifications
- Resistance
- 150mΩ
- Power(Watts)
- 250mW
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJ-6BSFR15V#C4002791PANASONIC · 0805 | PANASONIC | 0805 | 1,355 | ₹14.09 · 1,355 in stock | View |
 | ERJ-6DSFR15V#C2074760PANASONIC · 0805 | PANASONIC | 0805 | 1,435 | ₹15.55 · 1,435 in stock | View |
 | RL0805FR-7W0R15L#C859799YAGEO · 0805 | YAGEO | 0805 | 7,050 | ₹2.51 · 7,050 in stock | View |
| WSL0805R1500FEA18#C4117326VISHAY · 0805 | VISHAY | 0805 | 488 | ₹149.83 · 488 in stock | View | |
 | WW08WR150FTL#C171369Walsin · 0805 | Walsin | 0805 | On request | ₹0.7144 · 0 in stock | View |
