YAGEODatasheet (PDF)

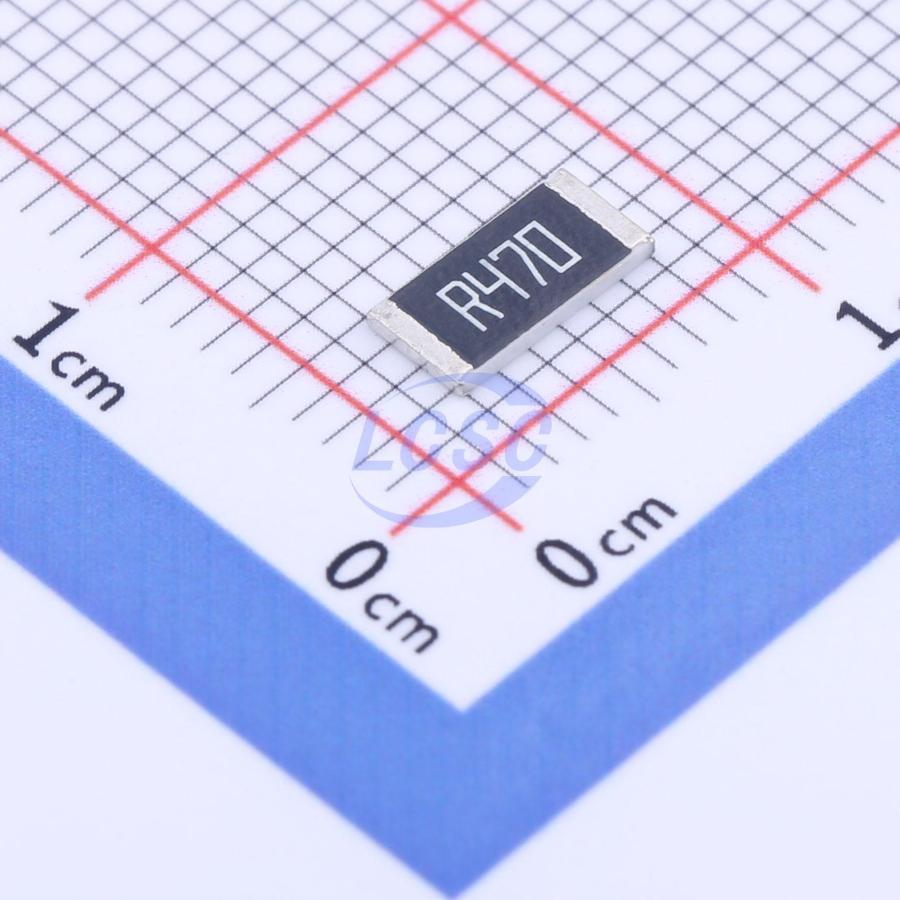

PT2512FK-070R47L
470mΩ 1W Thick Film Resistor ±75ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.47Ω ±1% 1W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-070R47L
- Store part #
- C875855
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,805 in stock
#C875855
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.93 | ₹124.65 |
| 50+ | ₹19.88 | ₹994.00 |
| 150+ | ₹17.73 | ₹2,659.50 |
| 500+ | ₹15.03 | ₹7,515.00 |
| 2,500+ | ₹12.97 | ₹32,425.00 |
| 4,000+ | ₹12.25 | ₹49,000.00 |
5 × ₹24.93
₹124.65
excl. GST
₹147.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-070R47L
₹124.65 for 5 + GST
Specifications
- Resistance
- 470mΩ
- Power(Watts)
- 1W
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CR2512FR470E04R#C165324EVER OHMS · 2512 | EVER OHMS | 2512 | 10 | ₹8.30 · 10 in stock | View |
 | 25121WF470LT4E#C21097UNI-ROYAL · 2512 | UNI-ROYAL | 2512 | 990 | ₹5.68 · 990 in stock | View |
 | HoRF2512-1W-470mR-1%#C2912724Milliohm · 2512 | Milliohm | 2512 | 3,280 | ₹3.93 · 3,280 in stock | View |
 | FRL2512FR470TS#C2934368FOJAN · 2512 | FOJAN | 2512 | 3,340 | ₹5.54 · 3,340 in stock | View |
 | SCR2512FR470#C3017417VO · 2512 | VO | 2512 | 20 | ₹5.36 · 20 in stock | View |
