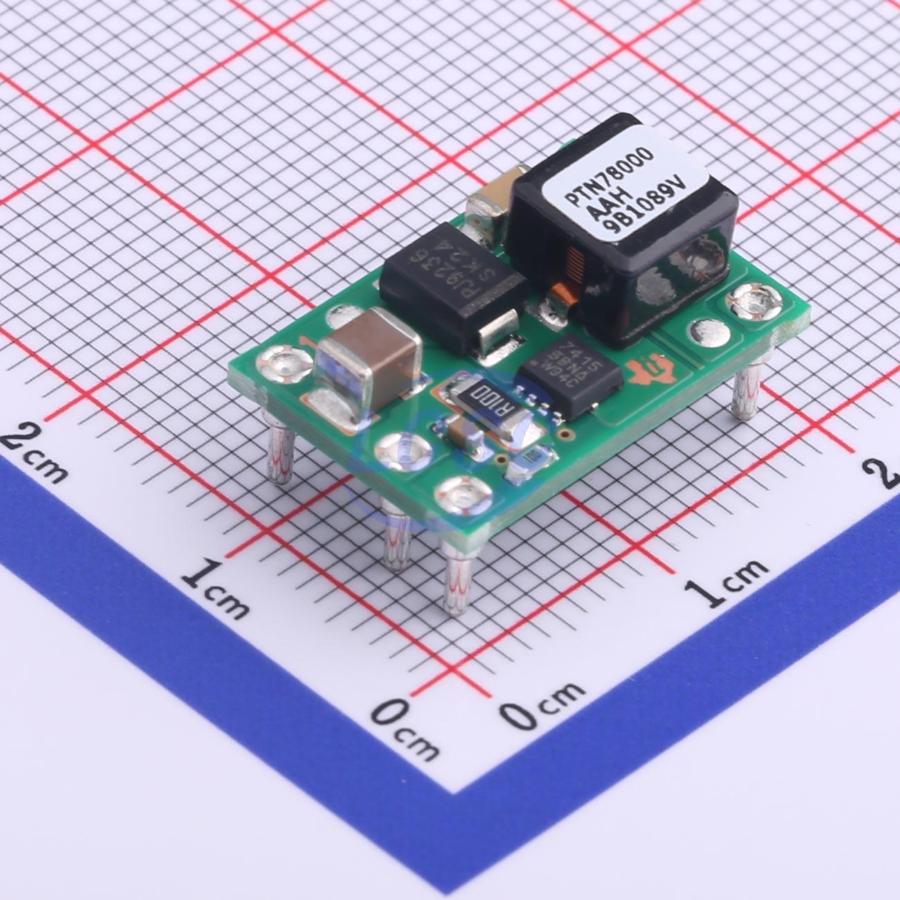

PTN78000AAH

-15V~-3V 7V~29V DIP-5 DC DC Converters RoHS

DIP-5ROHS3 CompliantActive

1.5A, wide-input adjustable step-up/step-down switching regulator

Manufacturer: TI
Manufacturer part #: PTN78000AAH
Store part #: C840106
Package / case: DIP-5
Category: DC DC Converters
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

30 in stock

#C840106

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹3,166.57	₹3,166.57
10+	₹3,026.73	₹30,267.30
30+	₹2,784.33	₹83,529.90
100+	₹2,572.94	₹2,57,294.00

Quantity (min 1)

1 × ₹3,166.57

₹3,166.57

excl. GST

₹3,736.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 56 per tray

PTN78000AAH

₹3,166.57 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Outputs: 1
Iout: 1.5A
Output Voltage: -15V~-3V
Frequency - Switching: 550kHz
Operating Temperature: -40℃~+85℃
Voltage - Supply: 7V~29V
Conversion Efficiency: 84%
Features: Over Current Protection;Over-temperature protection;Under Voltage Protection
Output Power: 9W
Capacitive Load(Max): 100uF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tray
Standard pack: 56 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 4.48 g

Overview

The PTN78000A is a series of high-efficiency, buck-boost integrated switching regulators (ISR). It is smaller and lighter than its predecessor, and has either similar or improved electrical performance characteristics. The caseless, double-sided package also exhibits improved thermal characteristics, and is compatible with TI's roadmap for RoHS and lead-free compliance. Operating from a wide-input voltage range, the PTN78000A provides high-efficiency, positive-to-negative voltage conversion for loads of up to 1.5 A. The output voltage is set using a single external resistor, and may be set to any value within the range, -15 V to -3 V. The PTN78000A has undervoltage lockout, and is suited to a wide variety of general-purpose applications that operate off 12-V, 24-V, or tightly regulated 28-V dc power.
