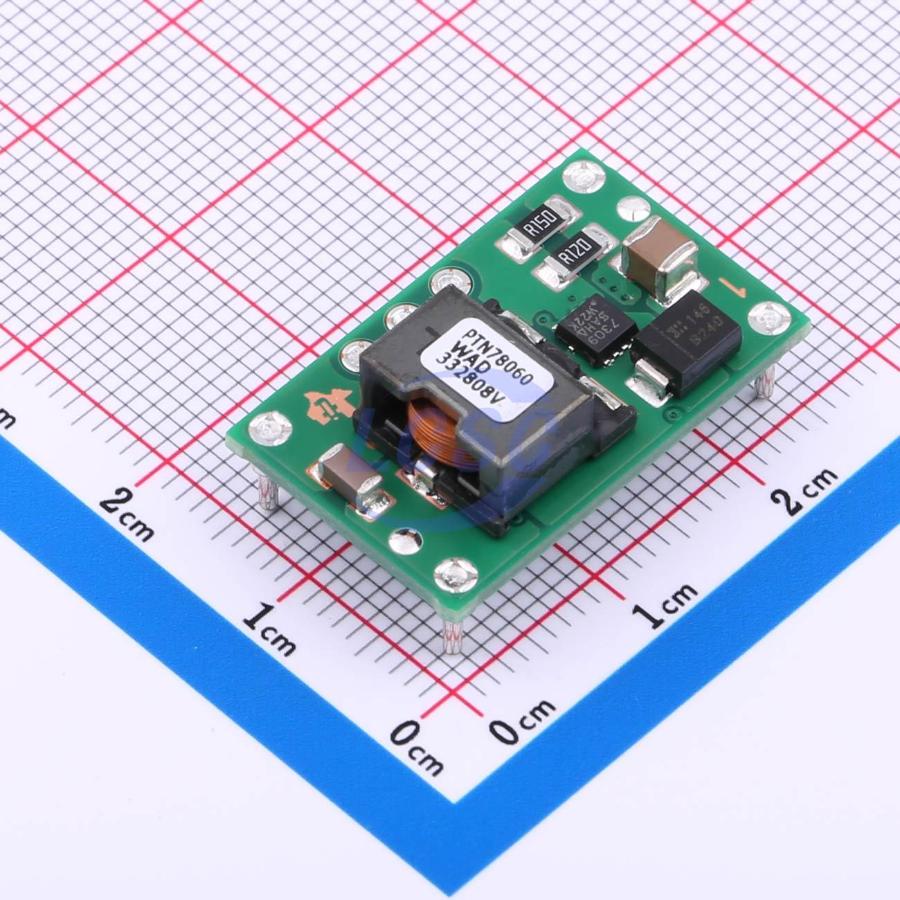

PTN78060WAD
Step-down type 2.5V~12.6V 7V~36V DIP-7 DC DC Converters RoHS
DIP-7ROHS3 CompliantActive
3-A, Wide-Input Adjustable Switching Regulator
- Manufacturer
- TI
- Manufacturer part #
- PTN78060WAD
- Store part #
- C5219956
- Package / case
- DIP-7
- Category
- DC DC Converters
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C5219956
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹3,113.24 | ₹3,113.24 |
| 10+ | ₹2,968.84 | ₹29,688.40 |
| 36+ | ₹2,718.42 | ₹97,863.12 |
| 108+ | ₹2,500.09 | ₹2,70,009.72 |
1 × ₹3,113.24
₹3,113.24
excl. GST
₹3,673.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 36 per tray
PTN78060WAD
₹3,113.24 for 1 + GST
Specifications
- Function
- Step-down type
- Output Voltage
- 2.5V~12.6V
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 17mA
- Voltage - Supply
- 7V~36V
- Capacitive Load(Max)
- 2000uF
- Number of Outputs
- 1
- Iout
- 3A
- Output Voltage Accuracy
- ±3%
- Frequency - Switching
- 550kHz
- Conversion Efficiency
- 94%
- Features
- Programmable output voltage;Under Voltage Protection;Over Current Protection;Over-temperature protection;Remote sampling compensation
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 36 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.033 g
Overview
The PTN78060 is a series of high-efficiency, step-down integrated switching regulators (ISR). Operating from a wide-input voltage range, the PTN78060 provides high-efficiency, step-down voltage conversion for loads of up to 3 A. The output voltage can be set to any value over a wide adjustment range using a single external resistor. The PTN78060 has undervoltage lockout, an integral on/off inhibit, and includes an output current limit and overtemperature protection. It is well suited to a wide variety of general-purpose applications that operate off 12-V, 24-V, or 28-V DC power.
Applications
- General-Purpose
- Industrial Controls
- HVAC Systems
- Test and Measurement
- Medical Instrumentation
- AC/DC Adaptors
- Vehicles
- Marine
Key features
- 3-A Output Current
- Wide-Input Voltage (7 V to 36 V) / (15 V to 36 V)
- Wide-Output Voltage Adjust (2.5 V to 12.6 V) / (11.85 V to 22 V)
- High Efficiency (Up to 96%)
- On/Off Inhibit
- Under-Voltage Lockout
- Output Current Limit
- Overtemperature Shutdown
- Operating Temperature: -40°C to 85°C
- Surface Mount Package Available
