ROHMDatasheet (PDF)

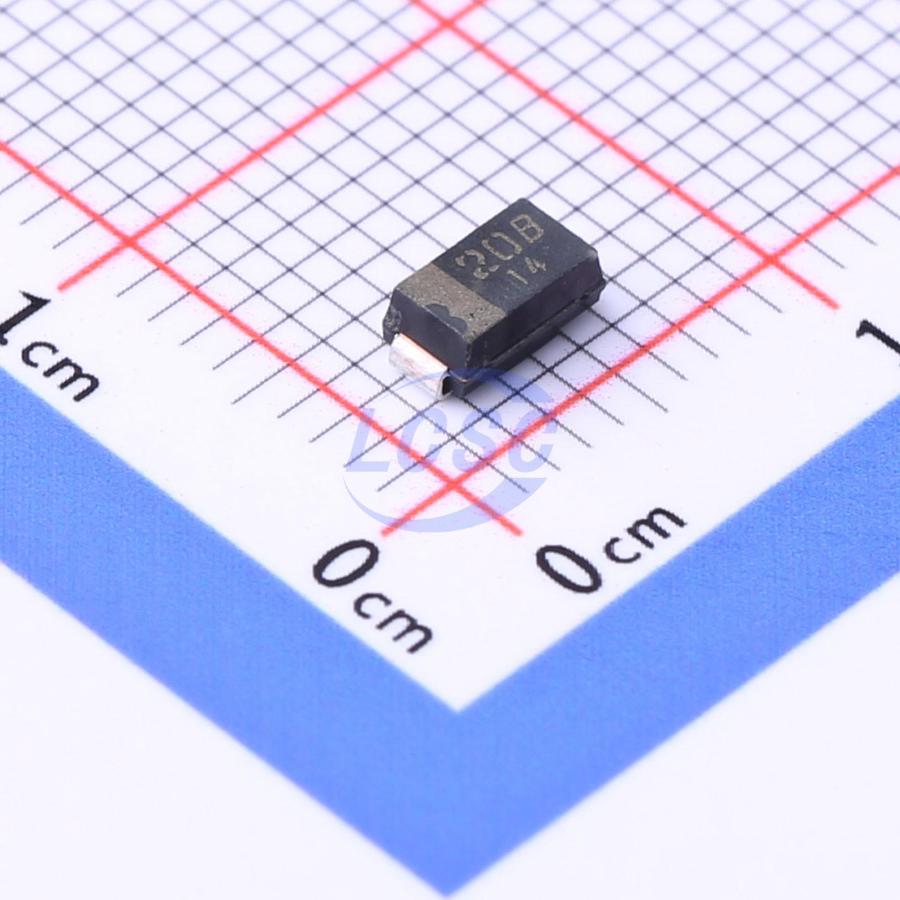

PTZTE2520B
Zener Diode 20.8V 1W Surface Mount DO-214AC(SMA)
DO-214AC(SMA)ROHS3 CompliantActive
DIODE ZENER 20.8V 1W DO-214AC(SMA)
- Manufacturer
- ROHM
- Manufacturer part #
- PTZTE2520B
- Store part #
- C2926477
- Package / case
- DO-214AC(SMA)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
535 in stock
#C2926477
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.66 | ₹78.30 |
| 50+ | ₹12.53 | ₹626.50 |
| 150+ | ₹10.97 | ₹1,645.50 |
| 1,500+ | ₹9.79 | ₹14,685.00 |
| 3,000+ | ₹8.86 | ₹26,580.00 |
| 4,500+ | ₹8.39 | ₹37,755.00 |
5 × ₹15.66
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
PTZTE2520B
₹78.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 1W
- Reverse Leakage Current (Ir)
- 10uA@15V
- Impedance(Zzt)
- 14Ω
- Zener Voltage(Range)
- 20V~22.4V
- Zener Voltage(Nom)
- 20.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.123 g
Overview
Applications
- Voltage regulation and voltage limiting.
- Voltage surge absorption.
Key features
- Small surface mounting type. (PMDS)
- 1W of power can be obtained despite compact size.
- High surge withstand level.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTZ20B-MS#C22459396MSKSEMI · SMA | MSKSEMI | SMA | 1,840 | ₹9.16 · 1,840 in stock | View |
 | PTZ20B#C3014343EIC · DO-214AC(SMA) | EIC | DO-214AC(SMA) | 3,595 | ₹11.14 · 3,595 in stock | View |
 | 1SMA4747A#C4154520TWGMC · SMA(DO-214AC) | TWGMC | SMA(DO-214AC) | 5,000 | ₹4.78 · 5,000 in stock | View |
 | TP1SMA5932BT3G#C49274869TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,400 | ₹9.29 · 2,400 in stock | View |
 | SMAZ20-MS#C22459352MSKSEMI · SMA | MSKSEMI | SMA | 1,410 | ₹9.16 · 1,410 in stock | View |
