ROHMDatasheet (PDF)

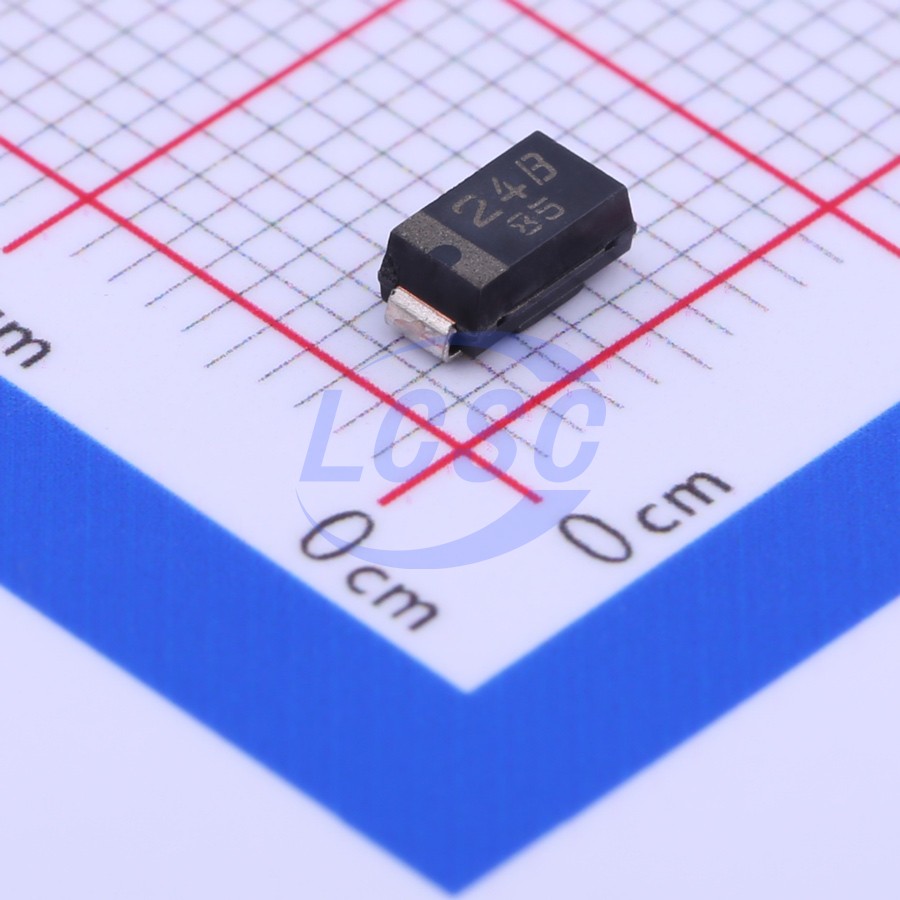

PTZTE2524B
Zener Diode Independent 25.3V 1000mW Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE ZENER 25.3V 1000mW SMA(DO-214AC)
- Manufacturer
- ROHM
- Manufacturer part #
- PTZTE2524B
- Store part #
- C308714
- Package / case
- SMA(DO-214AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C308714
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.94 | ₹69.70 |
| 50+ | ₹10.93 | ₹546.50 |
| 150+ | ₹9.42 | ₹1,413.00 |
| 1,500+ | ₹8.28 | ₹12,420.00 |
| 3,000+ | ₹7.38 | ₹22,140.00 |
| 4,500+ | ₹6.93 | ₹31,185.00 |
5 × ₹13.94
₹69.70
excl. GST
₹82.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
PTZTE2524B
₹69.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 1W
- Reverse Leakage Current (Ir)
- 10uA@19V
- Impedance(Zzt)
- 16Ω
- Zener Voltage(Range)
- 24V~27.6V
- Zener Voltage(Nom)
- 25.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTZTE2524B-MS#C22459374MSKSEMI · SMA | MSKSEMI | SMA | 1,350 | ₹9.37 · 1,350 in stock | View |
 | PTZ24B#C3015363EIC · DO-214AC(SMA) | EIC | DO-214AC(SMA) | 1,370 | ₹12.94 · 1,370 in stock | View |
 | PTZ24B#C20603122YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 3,500 | ₹5.03 · 3,500 in stock | View |
 | 1SMA4749A#C4154522TWGMC · SMA(DO-214AC) | TWGMC | SMA(DO-214AC) | 4,720 | ₹5.28 · 4,720 in stock | View |
 | TP1SMA5934BT3G#C49274871TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,750 | ₹9.42 · 4,750 in stock | View |
