JSCJ

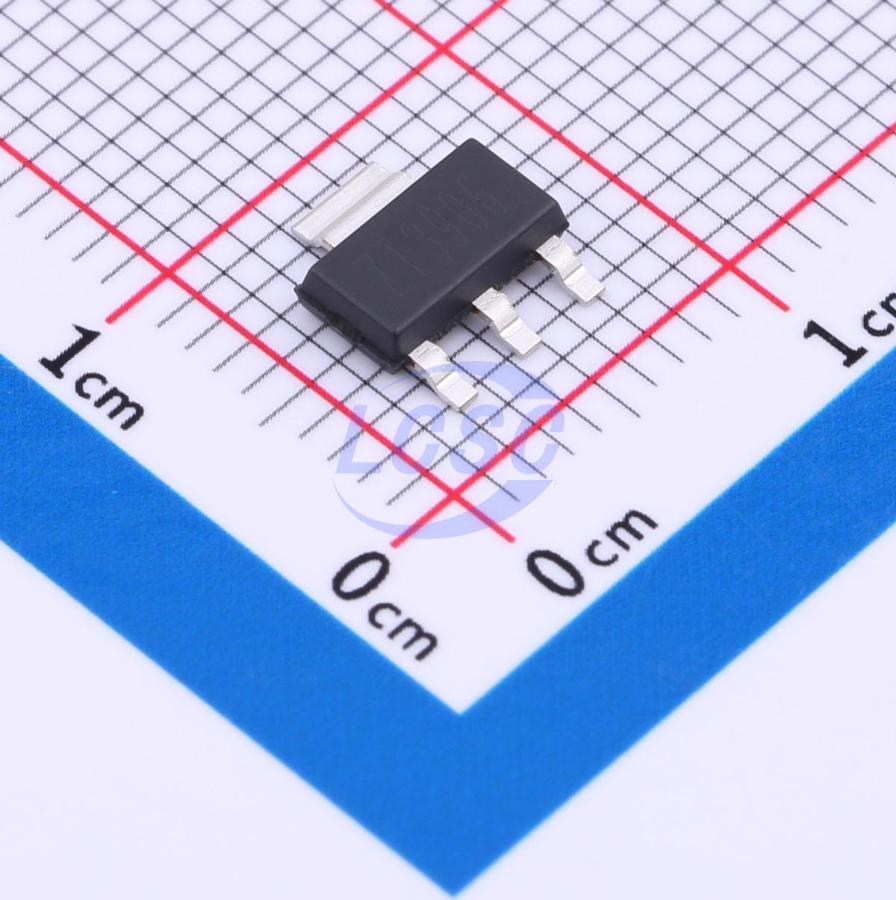

PZT3906

Bipolar (BJT) Transistor PNP 40V 200mA 250MHz 1W Surface Mount SOT-223

SOT-223ROHS CompliantActive

TRANS PNP 40V 200mA SOT-223

Manufacturer: JSCJ
Manufacturer part #: PZT3906
Store part #: C189434
Package / case: SOT-223
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

770 in stock

#C189434

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹9.58	₹95.80
100+	₹7.54	₹754.00
300+	₹6.52	₹1,956.00
2,500+	₹5.76	₹14,400.00
5,000+	₹5.15	₹25,750.00
10,000+	₹4.84	₹48,400.00

Quantity (min 10, multiples of 10)

10 × ₹9.58

₹95.80

excl. GST

₹113.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

PZT3906

₹95.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 50nA
Transition frequency(fT): 250MHz
Collector - Emitter Voltage VCEO: 40V
Emitter-Base Voltage VEBO: 5V
DC Current Gain: 60
Current - Collector(Ic): 200mA
Pd - Power Dissipation: 1W
Number: 1 PNP
type: PNP
Vce Saturation(VCE(sat)): 400mV

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.258 g

Overview

Key features

Low Voltage and Low Current
Complementary to PZT3904
General Purpose Amplifier and Switch Application

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	PZTA94#C2910142JSCJ · SOT-223	JSCJ	SOT-223	2,390	₹13.15 · 2,390 in stock	View
