NexperiaDatasheet (PDF)

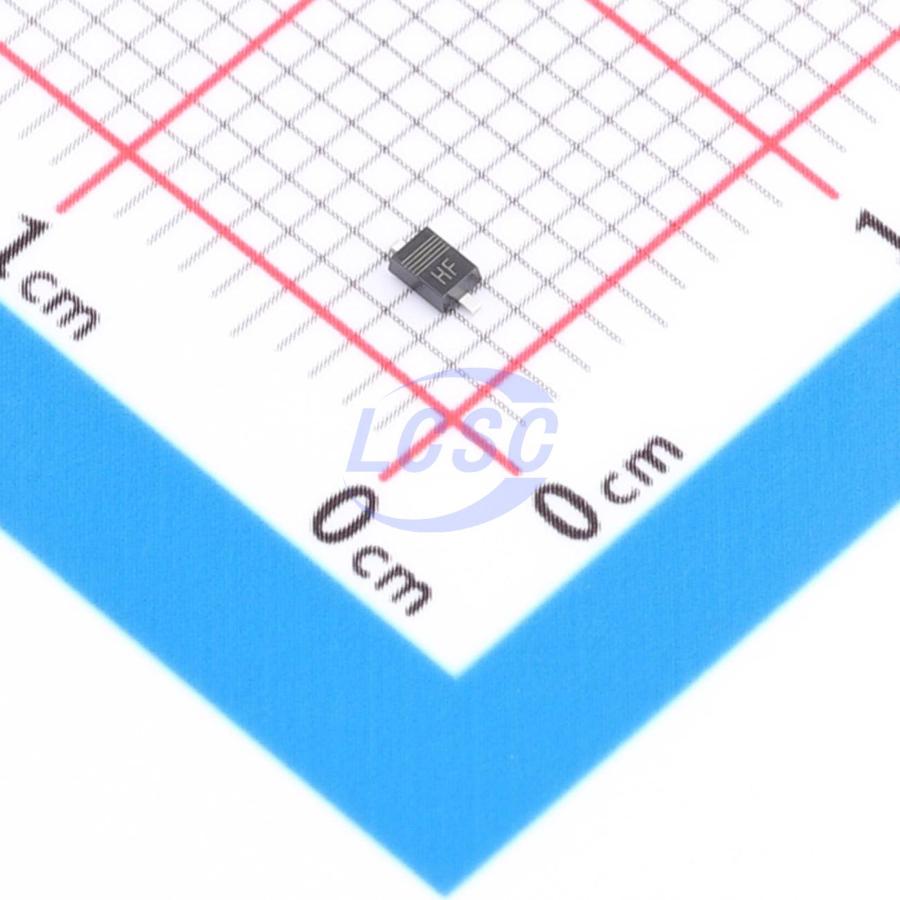

PZU10B2,115
1 Independent 9.77V~10.21V 10V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU10B2,115
- Store part #
- C455007
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C455007
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.62 | ₹50.62 |
| 10+ | ₹39.53 | ₹395.30 |
| 30+ | ₹34.76 | ₹1,042.80 |
| 100+ | ₹28.89 | ₹2,889.00 |
| 500+ | ₹26.29 | ₹13,145.00 |
| 1,000+ | ₹24.77 | ₹24,770.00 |
1 × ₹50.62
₹50.62
excl. GST
₹59.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU10B2,115
₹50.62 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 310mW
- Reverse Leakage Current (Ir)
- 100nA@7V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 9.77V~10.21V
- Zener Voltage(Nom)
- 10V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
General- purpose Zener diodes in a SOD323F (SC- 90) very small and flat lead Surface Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: 550 mW
- Tolerance series: B: approximately 5%; B1, B2, B3: sequential, approximately 2%
- Small plastic package suitable for surface mounted design
- Wide working voltage range: nominal 2.4 V to 36 V
- Very low leakage current for a given reverse voltage for types PZU5.1B, PZU10B
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z10B#C2826565Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 850 | ₹2.43 · 850 in stock | View |
 | MM3ZB10#C3009888WPMtek · SOD-323 | WPMtek | SOD-323 | 1,000 | ₹2.30 · 1,000 in stock | View |
 | MM3Z10-TD#C51902121TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 3,000 | ₹2.18 · 3,000 in stock | View |
 | PDZ10B,115-JSM#C53114256JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,560 | ₹5.07 · 2,560 in stock | View |
 | MM3Z10BW#C5365454JUXING · SOD-323 | JUXING | SOD-323 | 29,200 | ₹2.06 · 29,200 in stock | View |
