NexperiaDatasheet (PDF)

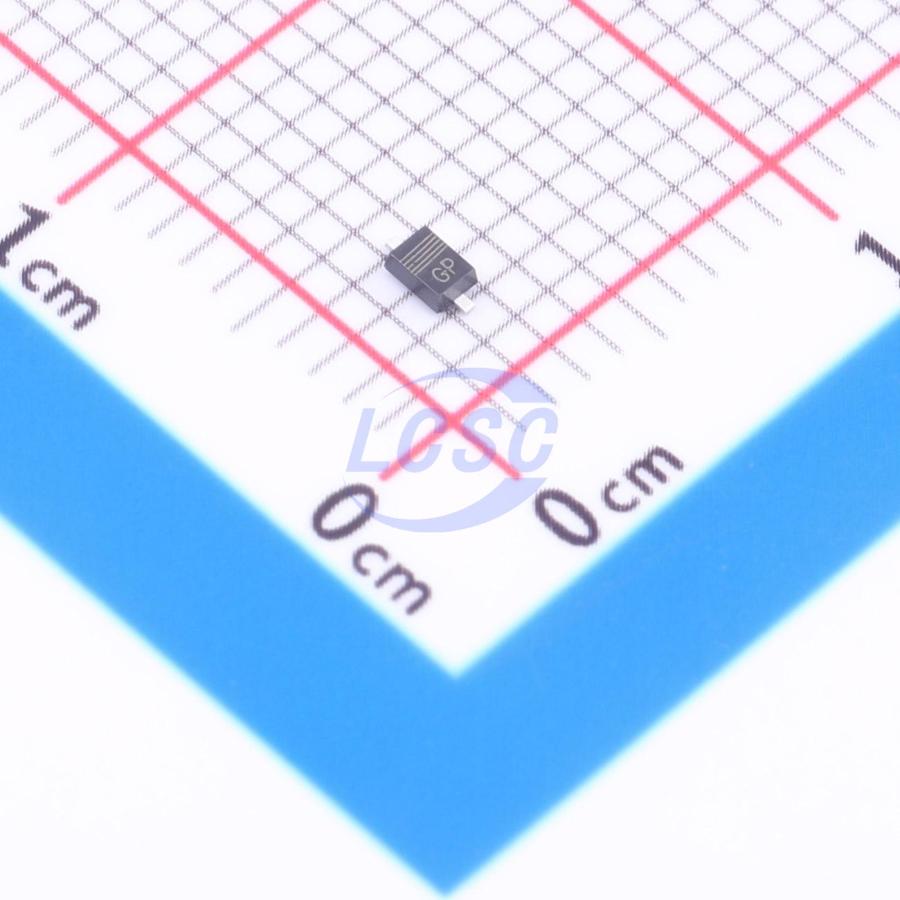

PZU16B,115
1 Independent 15.37V~17.09V 16V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU16B,115
- Store part #
- C553622
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C553622
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.70 | ₹94.70 |
| 10+ | ₹75.81 | ₹758.10 |
| 30+ | ₹66.47 | ₹1,994.10 |
| 100+ | ₹57.13 | ₹5,713.00 |
| 500+ | ₹51.70 | ₹25,850.00 |
| 1,000+ | ₹48.66 | ₹48,660.00 |
1 × ₹94.70
₹94.70
excl. GST
₹111.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU16B,115
₹94.70 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 310mW
- Reverse Leakage Current (Ir)
- 50uA@12V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 15.37V~17.09V
- Zener Voltage(Nom)
- 16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.032 g
Overview
General- purpose Zener diodes in a SOD323F (SC- 90) very small and flat lead Surface Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: 550 mW
- Tolerance series: B: approximately 5%; B1, B2, B3: sequential, approximately 2%
- Small plastic package suitable for surface mounted design
- Wide working voltage range: nominal 2.4 V to 36 V
- Very low leakage current for a given reverse voltage for types PZU5.1B, PZU10B
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SZMM3Z16VT1GX#C3732012Nexperia · SOD-323 | Nexperia | SOD-323 | 56,480 | ₹6.63 · 56,480 in stock | View | |
 | MM3Z16W#C2962421Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 2,150 | ₹1.87 · 2,150 in stock | View |
 | BZX84J-C16,115#C551003Nexperia · SOD-323F(SC-90) | Nexperia | SOD-323F(SC-90) | 870 | ₹6.50 · 870 in stock | View |
 | MM3Z16#C123915Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 50 | ₹1.85 · 50 in stock | View |
 | TPZ16VC-323#C42379170TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,700 | ₹2.67 · 2,700 in stock | View |
