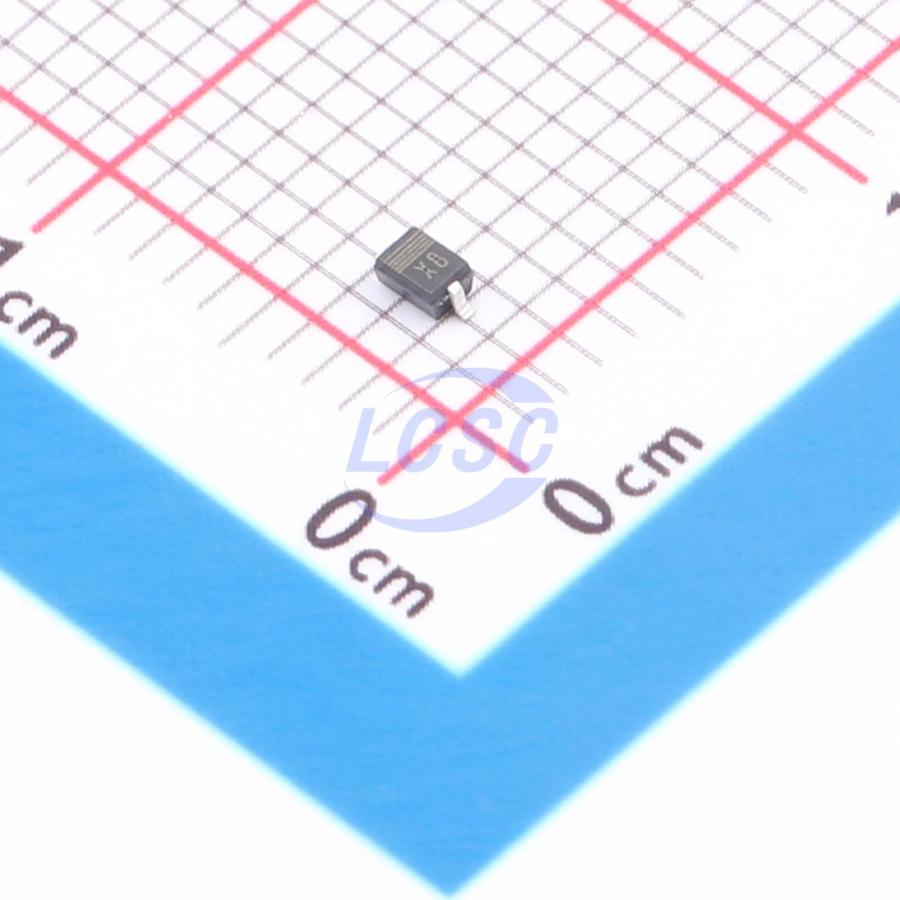

PZU2.4BA-QX
1 Independent 2.3V~2.6V 2.45V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU2.4BA-QX
- Store part #
- C7329009
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C7329009
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.67 | ₹93.40 |
| 200+ | ₹3.61 | ₹722.00 |
| 600+ | ₹3.03 | ₹1,818.00 |
| 3,000+ | ₹2.67 | ₹8,010.00 |
| 9,000+ | ₹2.37 | ₹21,330.00 |
| 21,000+ | ₹2.20 | ₹46,200.00 |
20 × ₹4.67
₹93.40
excl. GST
₹110.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU2.4BA-QX
₹93.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 320mW
- Reverse Leakage Current (Ir)
- 50uA@1V
- Impedance(Zzt)
- 100Ω
- Zener Voltage(Range)
- 2.3V~2.6V
- Zener Voltage(Nom)
- 2.45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
General- purpose Zener diodes in a SOD323 (SC- 76) very small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W
- Total power dissipation: Ptot ≤ 320 mW
- Tolerance series:
- B: approximately ± 5%
- B1, B2, B3: approximately ± 2%
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current IR range
- Small plastic package suitable for surface-mounted design
- PZU5.1BA-Q - 10BA-Q: Very low dynamic impedances at low currents, very low leakage current, hard breakdown knee
- PZU-types: ± 10 V: Intentional minor rise of leakage current for optimized fast switching and noise reduction [Ref. AN90031]
- Qualified according to AEC-Q101 and recommended for use in automotive applications
