NexperiaDatasheet (PDF)

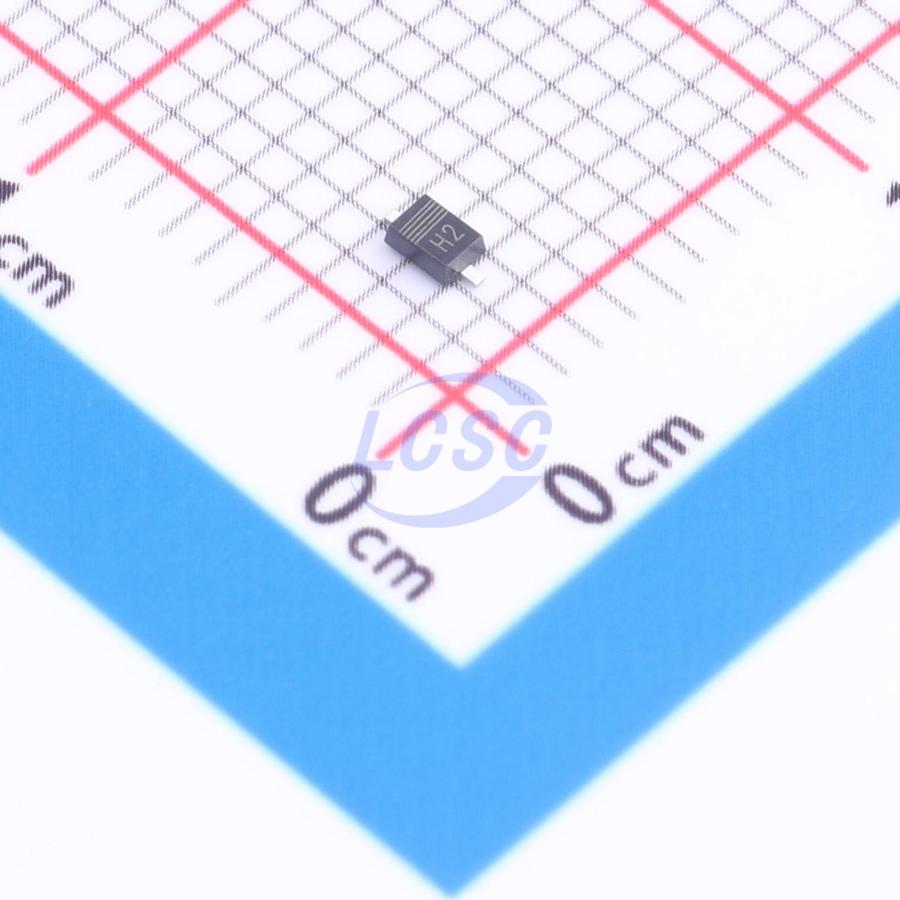

PZU3.0B2,115
1 Independent 2.95V~3.2V 3V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU3.0B2,115
- Store part #
- C553687
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C553687
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.51 | ₹85.10 |
| 100+ | ₹6.68 | ₹668.00 |
| 300+ | ₹5.77 | ₹1,731.00 |
| 3,000+ | ₹5.09 | ₹15,270.00 |
| 6,000+ | ₹4.54 | ₹27,240.00 |
| 9,000+ | ₹4.27 | ₹38,430.00 |
10 × ₹8.51
₹85.10
excl. GST
₹100.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU3.0B2,115
₹85.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 310mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 2.95V~3.2V
- Zener Voltage(Nom)
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
General- purpose Zener diodes in a SOD323F (SC- 90) very small and flat lead Surface Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: 550 mW
- Tolerance series: B: approximately 5%; B1, B2, B3: sequential, approximately 2%
- Small plastic package suitable for surface mounted design
- Wide working voltage range: nominal 2.4 V to 36 V
- Very low leakage current for a given reverse voltage for types PZU5.1B, PZU10B
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-B3V0,115#C550556Nexperia · SOD-323(SC-76) | Nexperia | SOD-323(SC-76) | 18,460 | ₹4.33 · 18,460 in stock | View |
 | PZU3.0B1A,115#C553686Nexperia · SOD-323 | Nexperia | SOD-323 | 500 | ₹19.00 · 500 in stock | View |
 | BZX384-B3V0-QX#C7508089Nexperia · SOD-323 | Nexperia | SOD-323 | 3,000 | ₹5.83 · 3,000 in stock | View |
 | BZX384B3V0-G3-08#C5957727VISHAY · SOD-323 | VISHAY | SOD-323 | 2,890 | ₹21.80 · 2,890 in stock | View |
 | BZT52C3V0SQ#C20600078YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 2,200 | ₹4.62 · 2,200 in stock | View |
