NexperiaDatasheet (PDF)

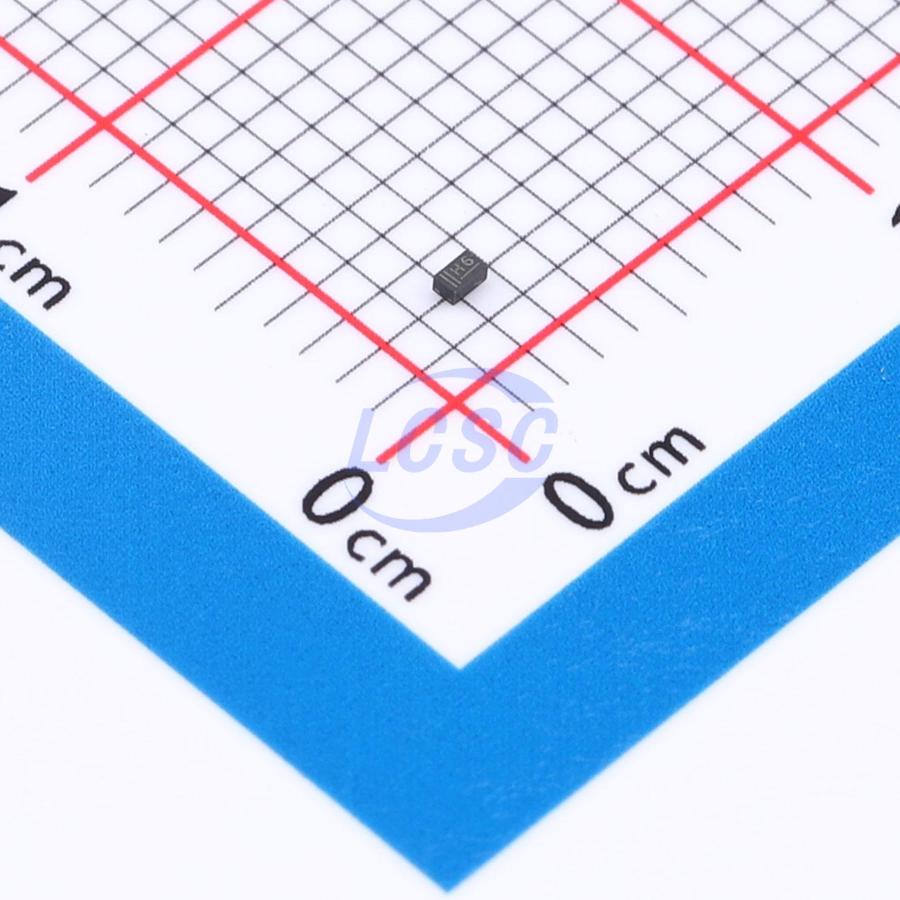

PZU3.6BL,315
1 Independent 3.4V~3.8V 3.6V DFN1006-2 Single Zener Diodes RoHS
DFN1006-2ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU3.6BL,315
- Store part #
- C553707
- Package / case
- DFN1006-2
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C553707
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.99 | ₹62.99 |
| 10+ | ₹49.31 | ₹493.10 |
| 30+ | ₹43.45 | ₹1,303.50 |
| 100+ | ₹36.06 | ₹3,606.00 |
| 500+ | ₹32.80 | ₹16,400.00 |
| 1,000+ | ₹30.85 | ₹30,850.00 |
1 × ₹62.99
₹62.99
excl. GST
₹74.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PZU3.6BL,315
₹62.99 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 3.4V~3.8V
- Zener Voltage(Nom)
- 3.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
General- purpose Zener diodes in a SOD882 leadless ultra small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: PZSM ≤ 40 W
- Total power dissipation: Ptot ≤ 250 mW
- Tolerance series: B: approximately ± 5%; B2: approximately ± 2%
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current IR range
- Small plastic package suitable for surface- mounted design
- AEC- Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C3V6LP#C2999126TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 18,280 | ₹6.35 · 18,280 in stock | View |
| BZX884C3V6#C7529010amsem · DFN1006-2L | amsem | DFN1006-2L | 9,700 | ₹2.20 · 9,700 in stock | View | |
 | PZU3.6B2L,315#C553705Nexperia · DFN1006-2 | Nexperia | DFN1006-2 | 8,500 | ₹3.89 · 8,500 in stock | View |
 | BZX884B3V6#C53283943R+O · DFN1006-2L | R+O | DFN1006-2L | 31,060 | ₹3.85 · 31,060 in stock | View |
 | TPZ3V6C-1006#C2923392TECH PUBLIC · DFN1006-2 | TECH PUBLIC | DFN1006-2 | 10,810 | ₹6.40 · 10,810 in stock | View |
