NexperiaDatasheet (PDF)

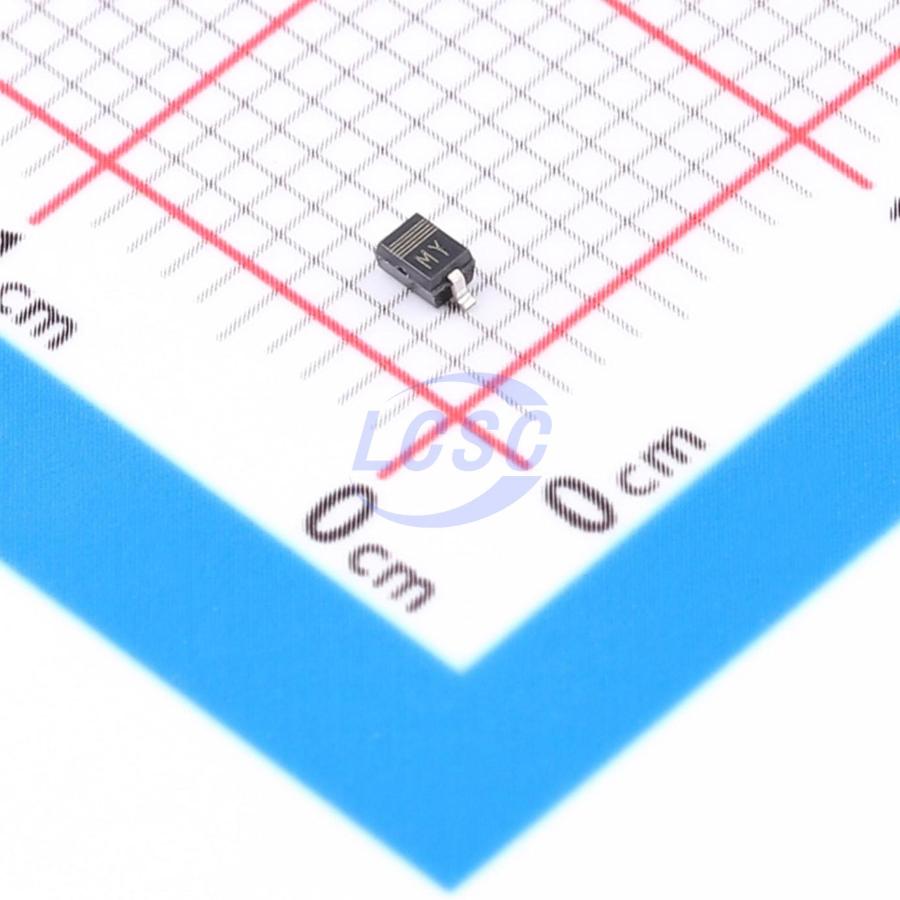

PZU5.1B2A-QX
1 Independent 4.98V~5.2V 5.09V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU5.1B2A-QX
- Store part #
- C5713820
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5713820
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹26.50 | ₹26.50 |
| 10+ | ₹25.85 | ₹258.50 |
| 30+ | ₹25.41 | ₹762.30 |
| 100+ | ₹24.98 | ₹2,498.00 |
1 × ₹26.50
₹26.50
excl. GST
₹31.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU5.1B2A-QX
₹26.50 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 320mW
- Reverse Leakage Current (Ir)
- 2uA@1.5V
- Impedance(Zzt)
- 60Ω
- Zener Voltage(Range)
- 4.98V~5.2V
- Zener Voltage(Nom)
- 5.09V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.052 g
Overview
General- purpose Zener diodes in a SOD323 (SC- 76) very small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W
- Total power dissipation: Ptot ≤ 320 mW
- Tolerance series:
- B: approximately ± 5%
- B1, B2, B3: approximately ± 2%
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current IR range
- Small plastic package suitable for surface-mounted design
- PZU5.1BA-Q - 10BA-Q: Very low dynamic impedances at low currents, very low leakage current, hard breakdown knee
- PZU-types: ± 10 V: Intentional minor rise of leakage current for optimized fast switching and noise reduction [Ref. AN90031]
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PZU5.1B2,115#C553747Nexperia · SOD-323F | Nexperia | SOD-323F | 460 | ₹53.78 · 460 in stock | View |
 | BZT52B5V1SQ#C20167638YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 1,060 | ₹4.26 · 1,060 in stock | View |
 | BZX384-B5V1,115#C426823Nexperia · SOD-323 | Nexperia | SOD-323 | On request | ₹15.78 · 0 in stock | View |
 | PZU5.1B2A,115#C478176Nexperia · SOD-323 | Nexperia | SOD-323 | 2,940 | ₹2.65 · 2,940 in stock | View |
 | BZT52B5V1BS#C3019974Slkor · SOD-323 | Slkor | SOD-323 | 40 | ₹2.90 · 40 in stock | View |
