NexperiaDatasheet (PDF)

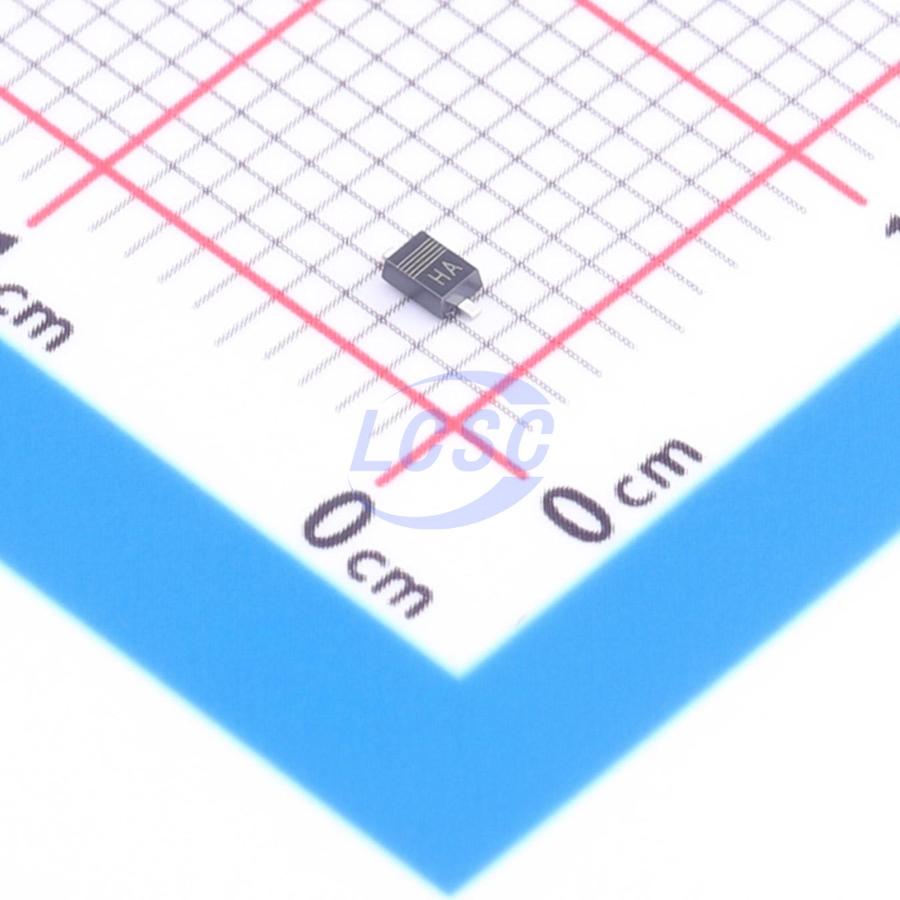

PZU6.2B2,115
1 Independent 6.06V~6.33V 6.2V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU6.2B2,115
- Store part #
- C553765
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C553765
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.78 | ₹77.80 |
| 100+ | ₹6.11 | ₹611.00 |
| 300+ | ₹5.28 | ₹1,584.00 |
| 3,000+ | ₹4.64 | ₹13,920.00 |
| 6,000+ | ₹4.15 | ₹24,900.00 |
| 9,000+ | ₹3.90 | ₹35,100.00 |
10 × ₹7.78
₹77.80
excl. GST
₹91.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU6.2B2,115
₹77.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 310mW
- Reverse Leakage Current (Ir)
- 500uA@3V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 6.06V~6.33V
- Zener Voltage(Nom)
- 6.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
General- purpose Zener diodes in a SOD323F (SC- 90) very small and flat lead Surface Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: 550 mW
- Tolerance series: B: approximately 5%; B1, B2, B3: sequential, approximately 2%
- Small plastic package suitable for surface mounted design
- Wide working voltage range: nominal 2.4 V to 36 V
- Very low leakage current for a given reverse voltage for types PZU5.1B, PZU10B
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z6B2#C51814216CBI · SOD-323 | CBI | SOD-323 | 2,400 | ₹2.08 · 2,400 in stock | View |
 | MM3Z6V2-TD#C51902116TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,950 | ₹2.51 · 2,950 in stock | View |
 | BZX384-B6V2,115#C550572Nexperia · SOD-323(SC-76) | Nexperia | SOD-323(SC-76) | 2,800 | ₹4.71 · 2,800 in stock | View |
 | BZX384B6V2-E3-08#C241957VISHAY · SOD-323 | VISHAY | SOD-323 | 30 | ₹10.64 · 30 in stock | View |
 | BZT52B6V2S#C7427955NH · SOD-323 | NH | SOD-323 | 1,100 | ₹2.12 · 1,100 in stock | View |
