NexperiaDatasheet (PDF)

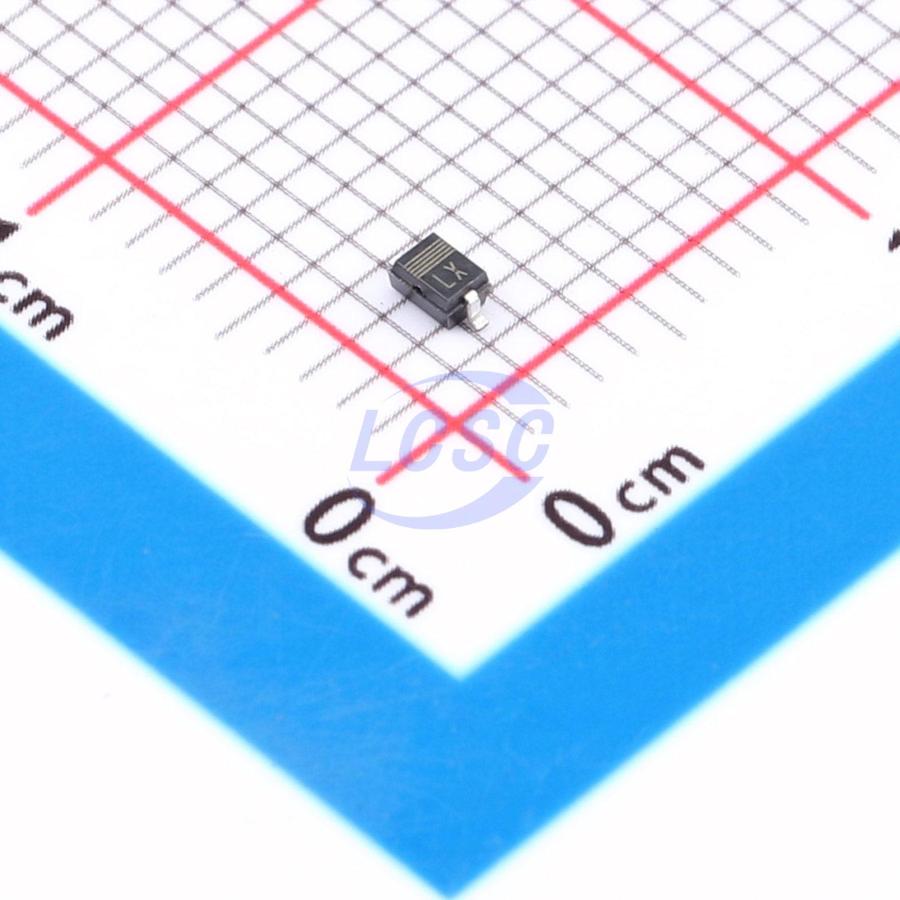

PZU7.5B2A,115
1 Independent 7.28V~7.6V 7.5V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU7.5B2A,115
- Store part #
- C553785
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C553785
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.56 | ₹117.80 |
| 50+ | ₹23.03 | ₹1,151.50 |
| 150+ | ₹22.69 | ₹3,403.50 |
| 500+ | ₹22.33 | ₹11,165.00 |
5 × ₹23.56
₹117.80
excl. GST
₹139.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU7.5B2A,115
₹117.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 320mW
- Reverse Leakage Current (Ir)
- 500nA@4V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 7.28V~7.6V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.067 g
Overview
General- purpose Zener diodes in a SOD323 (SC- 76) very small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W
- Total power dissipation: Ptot ≤ 320 mW
- Tolerance series:
- B: approximately ± 5%
- B1, B2, B3: approximately ± 2%
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current IR range
- Small plastic package suitable for surface-mounted design
- PZU5.1BA - 10BA: Very low dynamic impedances at low currents, very low leakage current, hard breakdown knee
- PZU-types at 10 V: Intentional minor rise of leakage current for optimized fast switching and noise reduction [Ref. AN90031]
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PZU7.5B2A-QX#C5713826Nexperia · SOD-323 | Nexperia | SOD-323 | 100 | ₹28.21 · 100 in stock | View | |
 | BZT52B7V5S#C2993005MDD(Microdiode Semiconductor) · SOD-323 | MDD(Microdiode Semiconductor) | SOD-323 | 2,340 | ₹2.88 · 2,340 in stock | View |
 | MM3Z7V5BW#C3027196Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 1,000 | ₹2.26 · 1,000 in stock | View |
 | MM3Z7V5-TD#C51902118TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,950 | ₹2.71 · 2,950 in stock | View |
 | PDZ7.5B,115-JSM#C53114184JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,260 | ₹3.52 · 1,260 in stock | View |
