NexperiaDatasheet (PDF)

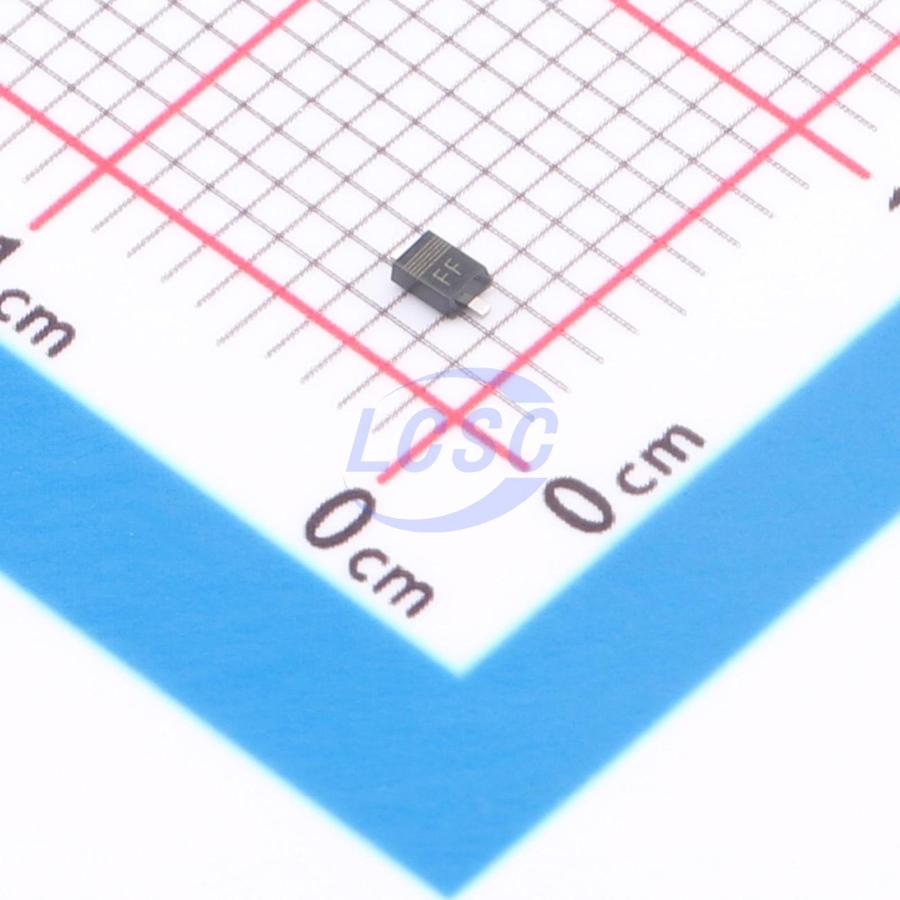

PZU8.2B1,115
1 Independent 7.76V~8.1V 8.2V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU8.2B1,115
- Store part #
- C553792
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,760 in stock
#C553792
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.12 | ₹102.40 |
| 200+ | ₹3.96 | ₹792.00 |
| 600+ | ₹3.31 | ₹1,986.00 |
| 3,000+ | ₹2.92 | ₹8,760.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
| 21,000+ | ₹2.41 | ₹50,610.00 |
20 × ₹5.12
₹102.40
excl. GST
₹120.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU8.2B1,115
₹102.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 310mW
- Reverse Leakage Current (Ir)
- 500nA@5V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 7.76V~8.1V
- Zener Voltage(Nom)
- 8.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
General- purpose Zener diodes in a SOD323F (SC- 90) very small and flat lead Surface Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: 550 mW
- Tolerance series: B: approximately 5%; B1, B2, B3: sequential, approximately 2%
- Small plastic package suitable for surface mounted design
- Wide working voltage range: nominal 2.4 V to 36 V
- Very low leakage current for a given reverse voltage for types PZU5.1B, PZU10B
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z8V2B#C2826557Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 3,000 | ₹2.58 · 3,000 in stock | View |
 | MM3Z8V2-TD#C51902119TDSEMIC · SOD-323 | TDSEMIC | SOD-323 | 2,950 | ₹2.58 · 2,950 in stock | View |
 | BZX384-B8V2,115#C295459Nexperia · SOD-323 | Nexperia | SOD-323 | 220 | ₹5.27 · 220 in stock | View |
 | BZX384-B8V2-QX#C7508108Nexperia · SOD-323 | Nexperia | SOD-323 | 2,670 | ₹6.39 · 2,670 in stock | View |
 | SZMM3Z8V2T1GX#C3737310Nexperia · SOD-323 | Nexperia | SOD-323 | 6,000 | ₹6.62 · 6,000 in stock | View |
