HXY MOSFETDatasheet (PDF)

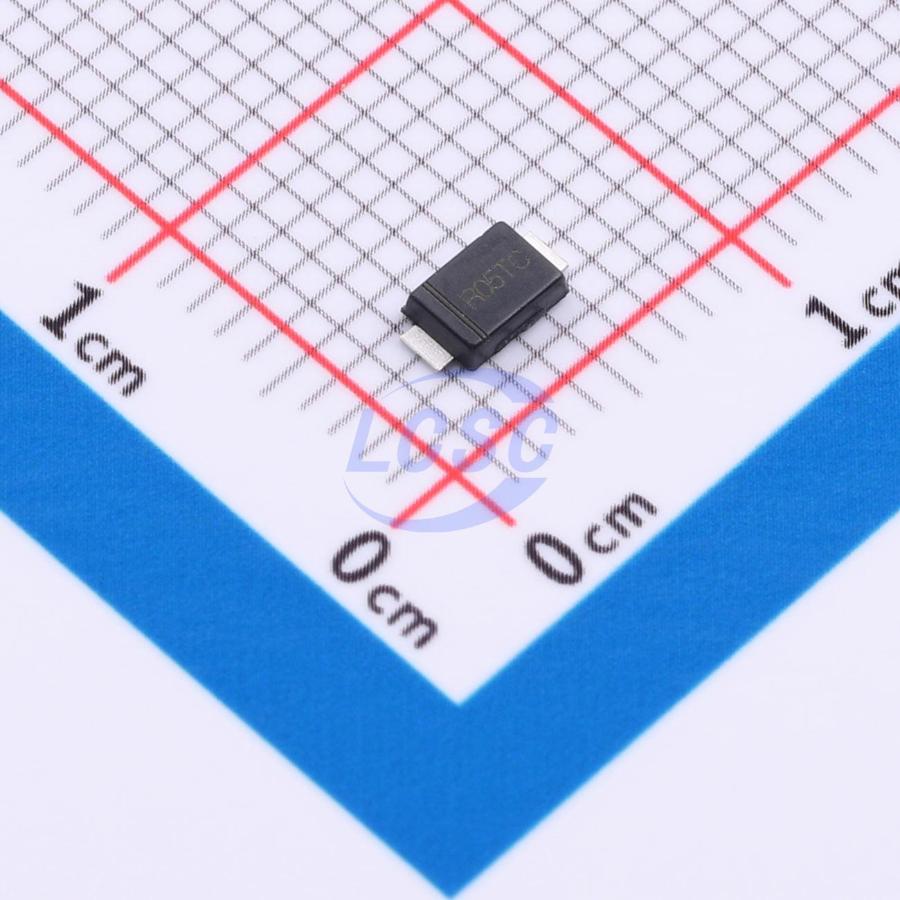

RB058LAM-40TR-HXY
40V 1 Independent 550mV@3A 3A SMAF Single Diodes
SMAFRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RB058LAM-40TR-HXY
- Store part #
- C52988754
- Package / case
- SMAF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C52988754
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.54 | ₹157.70 |
| 50+ | ₹25.27 | ₹1,263.50 |
| 150+ | ₹22.57 | ₹3,385.50 |
| 500+ | ₹19.21 | ₹9,605.00 |
| 3,000+ | ₹17.71 | ₹53,130.00 |
| 6,000+ | ₹16.83 | ₹1,00,980.00 |
5 × ₹31.54
₹157.70
excl. GST
₹186.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RB058LAM-40TR-HXY
₹157.70 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - Forward(Vf@If)
- 550mV@3A
- Reverse Leakage Current (Ir)
- 510uA
- Current - Rectified
- 3A
- Non-Repetitive Peak Forward Surge Current
- 80A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG40T30EPX-HXY#C52988664HXY MOSFET · SMAF | HXY MOSFET | SMAF | 120 | ₹36.58 · 120 in stock | View |
 | RB050LAM-40TR-HXY#C52988665HXY MOSFET · SMAF | HXY MOSFET | SMAF | 180 | ₹20.88 · 180 in stock | View |
 | RBR3LAM40CTR-HXY#C52988666HXY MOSFET · SMAF | HXY MOSFET | SMAF | 165 | ₹37.67 · 165 in stock | View |
 | RB055LAM-40TFTR-HXY#C52988752HXY MOSFET · SMAF | HXY MOSFET | SMAF | 180 | ₹45.82 · 180 in stock | View |
 | RBR3LAM40ATFTR-HXY#C52988755HXY MOSFET · SMAF | HXY MOSFET | SMAF | 510 | ₹26.35 · 510 in stock | View |
