ROHMDatasheet (PDF)

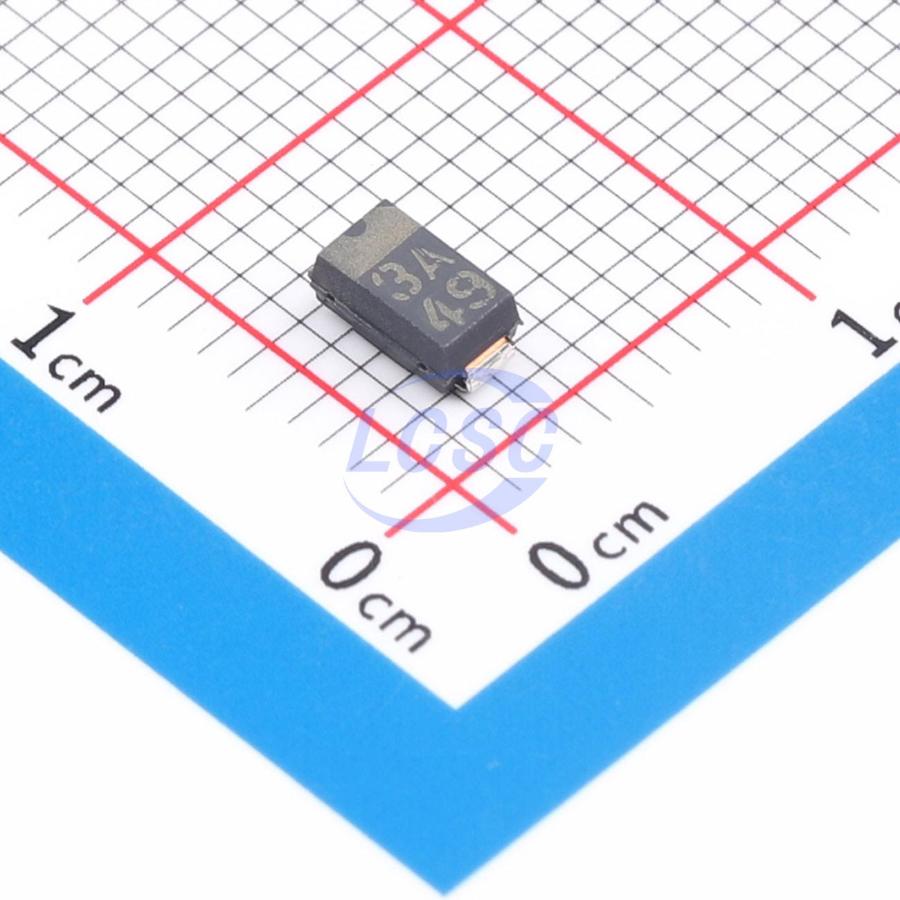

RB168L-40TE25
40V 1 Independent 1A DO-214AC(SMA) Single Diodes RoHS
DO-214AC(SMA)ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- RB168L-40TE25
- Store part #
- C17462018
- Package / case
- DO-214AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C17462018
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.42 | ₹35.42 |
| 10+ | ₹34.56 | ₹345.60 |
| 30+ | ₹34.12 | ₹1,023.60 |
| 100+ | ₹33.46 | ₹3,346.00 |
1 × ₹35.42
₹35.42
excl. GST
₹41.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RB168L-40TE25
₹35.42 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 650mV@1A;650mV@1A
- Reverse Leakage Current (Ir)
- 550nA@40V;550nA@40V
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 50A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
Applications
- General Rectification
Key features
- High reliability
- Low power die type
- Ultra-low reverse current (IR)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS14HE3-LTP#C7087044MCC · DO-214AC(SMA) | MCC | DO-214AC(SMA) | 4,130 | ₹17.15 · 4,130 in stock | View |
 | SL13#C7428114NH · DO-214AC | NH | DO-214AC | 4,090 | ₹5.69 · 4,090 in stock | View |
 | SS24#C115726Jingdao Microelectronics · SMA(DO-214AC) | Jingdao Microelectronics | SMA(DO-214AC) | 93,020 | ₹3.88 · 93,020 in stock | View |
 | B240AQ-13-F#C134441DIODES · SMA | DIODES | SMA | 1,985 | ₹30.15 · 1,985 in stock | View |
 | SK24A#C174029Suzhou Good-Ark Elec · SMA(DO-214AC) | Suzhou Good-Ark Elec | SMA(DO-214AC) | 9,080 | ₹9.66 · 9,080 in stock | View |
