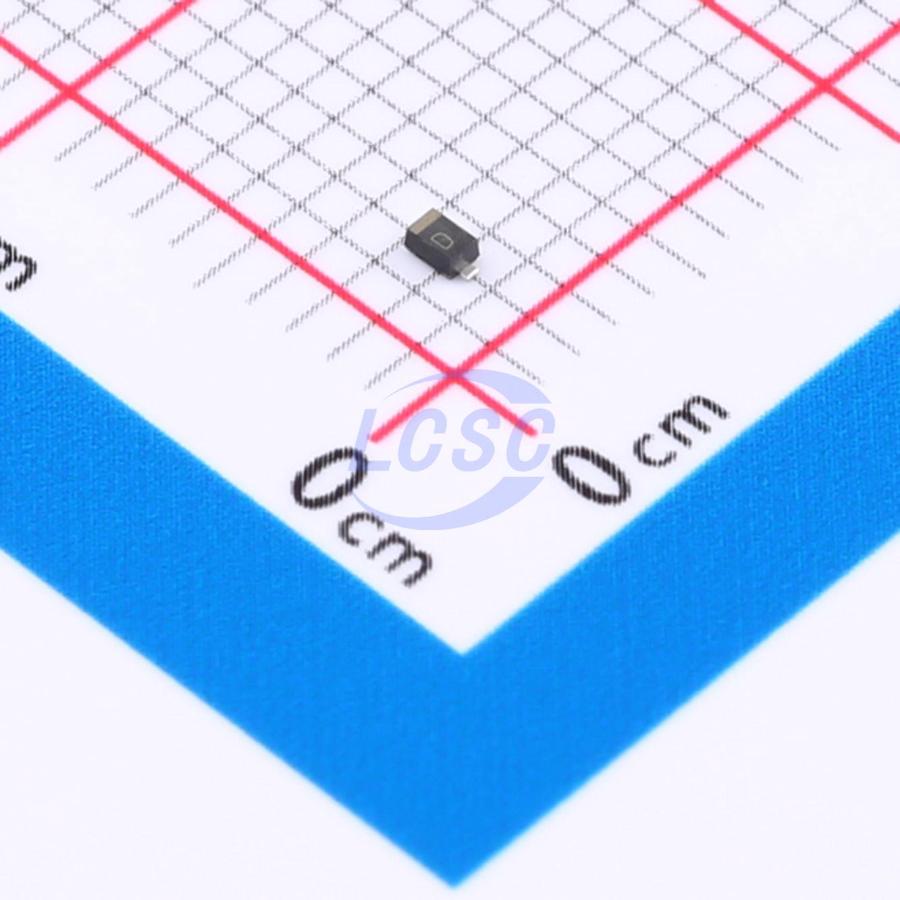

RB520S-40TE61
Diode 40V 200mA Surface Mount SOD-523
SOD-523ROHS CompliantActive
DIODE SCHOTTKY 40V SOD-523
- Manufacturer
- ROHM
- Manufacturer part #
- RB520S-40TE61
- Store part #
- C5443919
- Package / case
- SOD-523
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C5443919
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.42 | ₹57.10 |
| 50+ | ₹9.14 | ₹457.00 |
| 150+ | ₹8.00 | ₹1,200.00 |
| 500+ | ₹7.14 | ₹3,570.00 |
| 3,000+ | ₹6.46 | ₹19,380.00 |
| 6,000+ | ₹6.13 | ₹36,780.00 |
5 × ₹11.42
₹57.10
excl. GST
₹67.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RB520S-40TE61
₹57.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 550mV@100mA
- Reverse Leakage Current (Ir)
- 10uA@40V
- Current - Rectified
- 200mA
- Non-Repetitive Peak Forward Surge Current
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
Applications
- Rectifying small power
Key features
- Ultra small mold type. (EMD2)
- Low IR
- High reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RB520SM-40T2R#C253514ROHM · SOD-523 | ROHM | SOD-523 | 12,760 | ₹4.29 · 12,760 in stock | View |
 | RB520S-40#C77347JSCJ · SOD-523 | JSCJ | SOD-523 | 900 | ₹2.66 · 900 in stock | View |
 | RB521SM-40T2R#C253516ROHM · SOD-523 | ROHM | SOD-523 | 10,140 | ₹3.47 · 10,140 in stock | View |
 | LRB521S-40T1G#C27636127DOWO · SOD-523 | DOWO | SOD-523 | 18,850 | ₹1.88 · 18,850 in stock | View |
 | 1PS79SB30-HXY#C52754549HXY MOSFET · SOD-523 | HXY MOSFET | SOD-523 | 2,180 | ₹4.14 · 2,180 in stock | View |
