onsemiDatasheet (PDF)

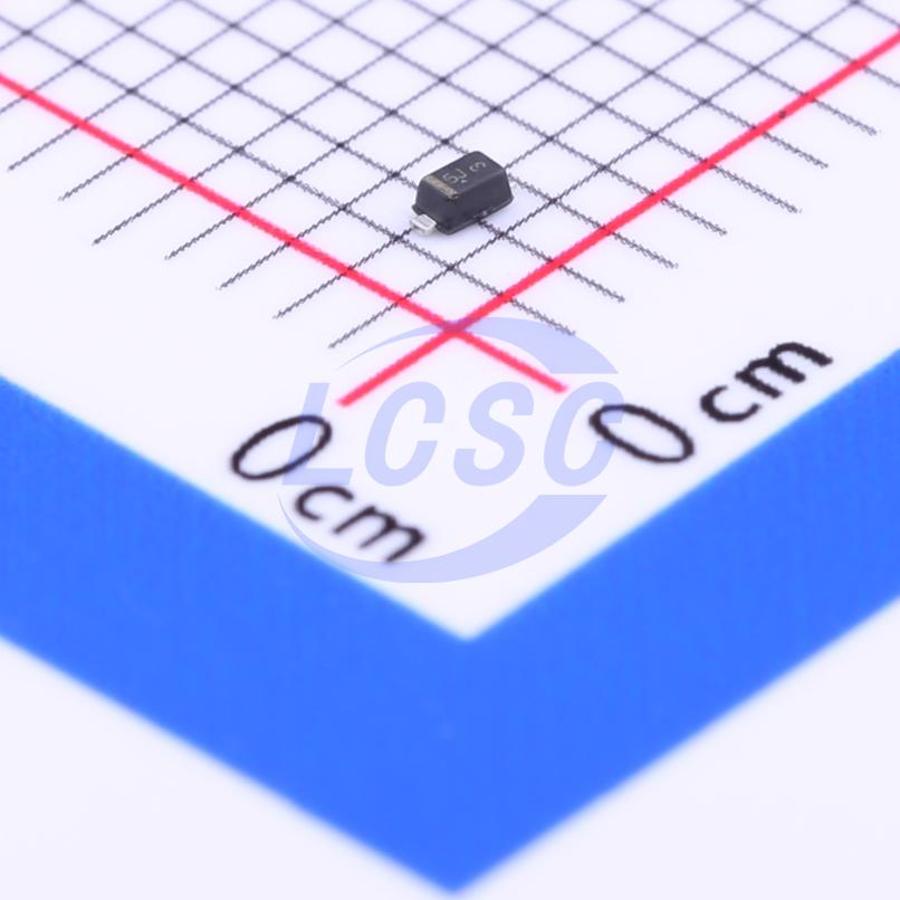

RB520S30T5G
Diode 30V 200mA Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE SCHOTTKY 30V SOD-523
- Manufacturer
- onsemi
- Manufacturer part #
- RB520S30T5G
- Store part #
- C232575
- Package / case
- SOD-523
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C232575
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.93 | ₹69.30 |
| 100+ | ₹5.66 | ₹566.00 |
| 300+ | ₹5.01 | ₹1,503.00 |
| 1,000+ | ₹4.54 | ₹4,540.00 |
| 5,000+ | ₹4.15 | ₹20,750.00 |
| 8,000+ | ₹3.97 | ₹31,760.00 |
10 × ₹6.93
₹69.30
excl. GST
₹81.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
RB520S30T5G
₹69.30 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 600mV@200mA
- Reverse Leakage Current (Ir)
- 1uA@10V
- Non-Repetitive Peak Forward Surge Current
- 600mA
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
These Schottky barrier diodes are designed for high - speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand - held and portable applications where space is limited.
Key features
- Extremely Fast Switching Speed
- Extremely Low Forward Voltage 0.6V max IF = 200mA
- Low Reverse Current
- ESD Rating: Class 3B per Human Body Model Class C per Machine Model
- These Devices are Pb - Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RB520S30T1G#C154821onsemi · SOD-523 | onsemi | SOD-523 | On request | ₹9.43 · 0 in stock | View |
 | RB520S-30#C18221543PAKER · SOD-523 | PAKER | SOD-523 | 4,100 | ₹4.59 · 4,100 in stock | View |
 | AD-RB520S-30#C2975770JSCJ · SOD-523 | JSCJ | SOD-523 | 20 | ₹5.05 · 20 in stock | View |
 | RB520S30#C304492PANJIT · SOD-523 | PANJIT | SOD-523 | 2,880 | ₹5.24 · 2,880 in stock | View |
 | RB520S30_R1_00101#C39296821PANJIT · SOD-523 | PANJIT | SOD-523 | 3,940 | ₹3.24 · 3,940 in stock | View |
