HXY MOSFETDatasheet (PDF)

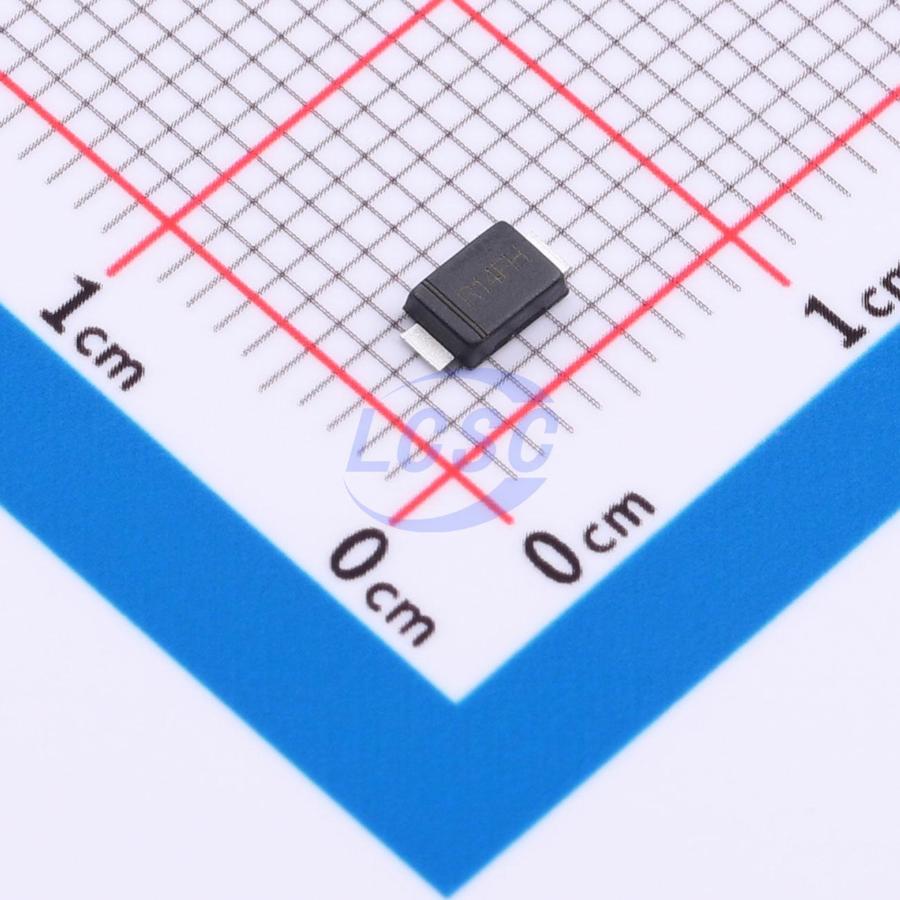

RBR1LAM40ATR-HXY
40V 1 Independent 550mV@2A 1A SMAF Single Diodes
SMAFRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RBR1LAM40ATR-HXY
- Store part #
- C52988657
- Package / case
- SMAF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
180 in stock
#C52988657
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.99 | ₹139.95 |
| 50+ | ₹22.17 | ₹1,108.50 |
| 150+ | ₹19.69 | ₹2,953.50 |
| 500+ | ₹16.58 | ₹8,290.00 |
| 3,000+ | ₹15.19 | ₹45,570.00 |
| 6,000+ | ₹14.35 | ₹86,100.00 |
5 × ₹27.99
₹139.95
excl. GST
₹165.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RBR1LAM40ATR-HXY
₹139.95 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - Forward(Vf@If)
- 550mV@2A
- Reverse Leakage Current (Ir)
- 200uA@40V
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RB160LAM-40TR-HXY#C52988655HXY MOSFET · SMAF | HXY MOSFET | SMAF | 175 | ₹15.36 · 175 in stock | View |
 | RB162LAM-40TR-HXY#C52988656HXY MOSFET · SMAF | HXY MOSFET | SMAF | 180 | ₹29.53 · 180 in stock | View |
 | RB160LAM-40TFTR-HXY#C52988763HXY MOSFET · SMAF | HXY MOSFET | SMAF | 180 | ₹35.13 · 180 in stock | View |
 | RB162LAM-40TFTR-HXY#C52988764HXY MOSFET · SMAF | HXY MOSFET | SMAF | 180 | ₹32.07 · 180 in stock | View |
 | RB168LAM-40TFTR-HXY#C52988765HXY MOSFET · SMAF | HXY MOSFET | SMAF | 180 | ₹25.45 · 180 in stock | View |
