RC0603FR-07330RL

The YAGEO RC0603FR-07330RL is a fixed general-purpose thick film surface-mount chip resistor with a nominal resistance of 330Ω. It is rated for 0.1W (1/10W) continuous power dissipation at 70°C and provides a ±1% resistance tolerance (F grade). The resistor has a temperature coefficient of resistance (TCR) of ±100ppm/°C.

The resistor has a maximum working voltage of 75V RMS and a maximum overload voltage of 150V. It operates over a temperature range of -55°C to +155°C. The rated power applies at 70°C, with power derating required above this temperature until it reaches zero at +155°C.

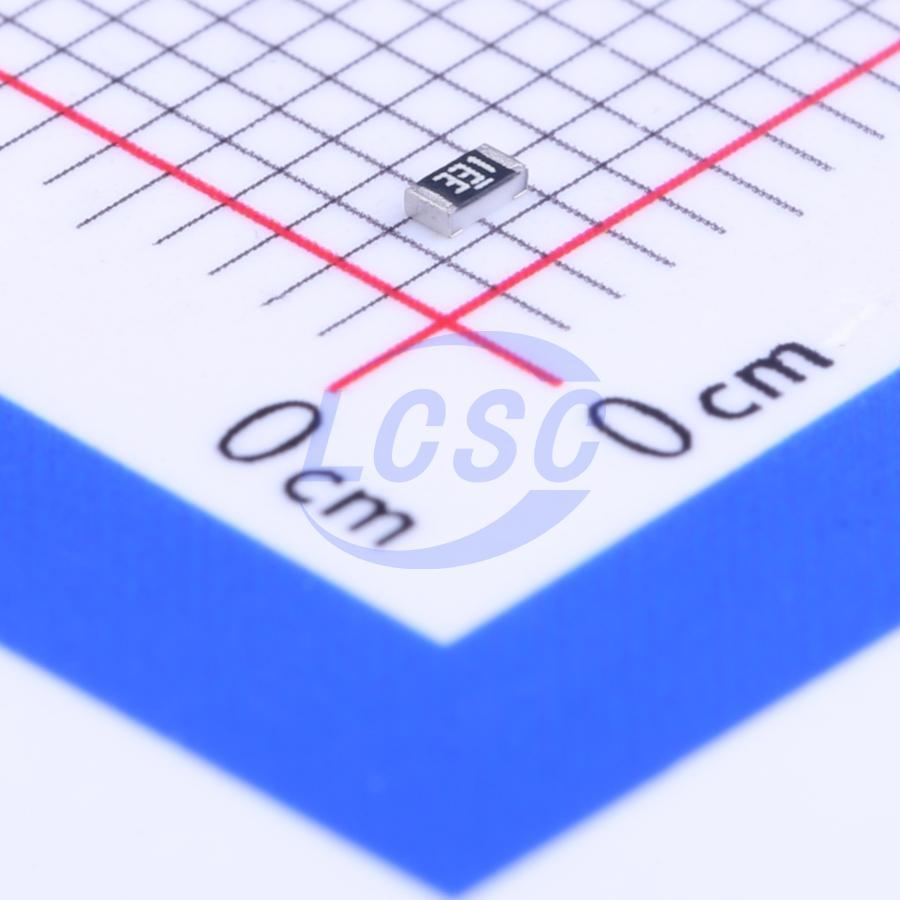

The resistor is supplied in a 0603 surface-mount package measuring 1.60mm × 0.80mm × 0.45mm. It is constructed on a high-grade ceramic substrate with a glass-protected thick film resistive element and Ni-barrier terminations plated with matte tin to provide reliable solderability.

The part number RC0603FR-07330RL identifies an RC series chip resistor in the 0603 package size. The F indicates a ±1% resistance tolerance, while R denotes paper tape reel packaging. The 07 code specifies a 7-inch reel with the standard configuration, and 330R represents a 330Ω resistance value, with R serving as the decimal marker where applicable. The final L is YAGEO's default ordering code. For this packaging option, the standard 7-inch paper tape reel contains 5,000 pieces.

The RC0603FR-07330RL is rated MSL 1 (Moisture Sensitivity Level 1) and is RoHS compliant with lead-free matte-tin terminations. For soldering, the resistor is tested for resistance to soldering heat at 260°C ± 5°C for 10 ± 1 seconds under the conditions specified in the datasheet. YAGEO also refers users to its separate "Chip Resistors Mounting" datasheet for the recommended footprint and soldering profile.
