RC0603FR-0747KL

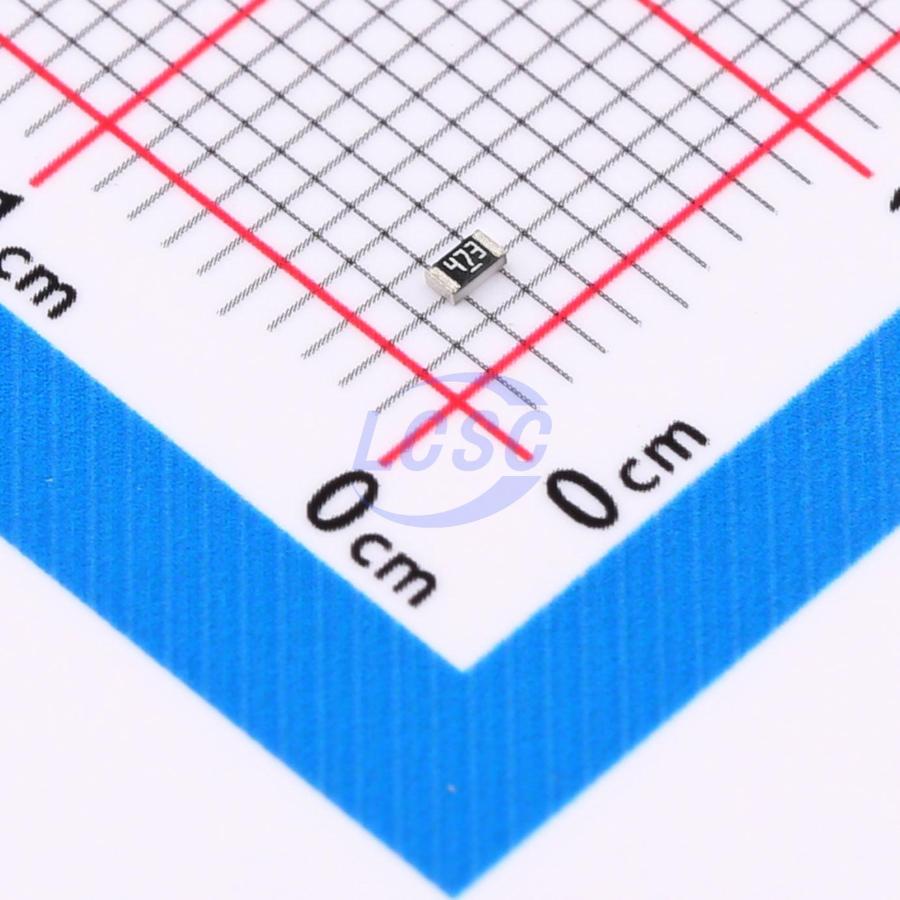

100mW 47kΩ 75V Thick Film Resistor ±100ppm/℃ ±1% 0603 Chip Resistor - Surface Mount RoHS
RES 47kΩ ±1% 100mW 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- RC0603FR-0747KL
- Store part #
- C105579
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,89,800 in stock
#C105579
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.4101 | ₹41.01 |
| 1,000+ | ₹0.3308 | ₹330.80 |
| 5,000+ | ₹0.3043 | ₹1,521.50 |
| 10,000+ | ₹0.2911 | ₹2,911.00 |
| 50,000+ | ₹0.2646 | ₹13,230.00 |
100 × ₹0.4101
₹41.01
excl. GST
₹48.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RC0603FR-0747KL
₹41.01 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 47kΩ
- Voltage Rating
- 75V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.036 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RTT034702FTP#C103657RALEC · 0603 | RALEC | 0603 | 200 | ₹0.1985 · 200 in stock | View |
 | AC0603FR-0747KL#C111134YAGEO · 0603 | YAGEO | 0603 | 1,46,100 | ₹0.5689 · 1,46,100 in stock | View |
 | AF0603FR-0747KL#C144107YAGEO · 0603 | YAGEO | 0603 | 31,400 | ₹1.22 · 31,400 in stock | View |
 | RK73H1JTTD4702F#C160044KOA · 0603 | KOA | 0603 | 4,500 | ₹0.807 · 4,500 in stock | View |
 | RCS060347K0FKEA#C2090967VISHAY · 0603 | VISHAY | 0603 | 860 | ₹6.92 · 860 in stock | View |
Questions about RC0603FR-0747KL
What are the fundamental resistance ratings, tolerance limits, and temperature coefficients of the RC0603FR-0747KL?
The YAGEO RC0603FR-0747KL is a general-purpose thick film surface-mount resistor with a nominal resistance of 47 kΩ. In the part number, "F" indicates a ±1% resistance tolerance, while "R" denotes paper tape and reel packaging. The resistor has a Temperature Coefficient of Resistance (TCR) of ±100 ppm/°C.
Which maximum power dissipation limits and working voltage thresholds constrain circuit design?
The RC0603FR-0747KL is rated for 0.1 W (100 mW, 1/10 W) at 70°C. It has a maximum continuous working voltage of 75 V, a maximum overload voltage of 150 V, and a dielectric withstanding voltage of 150 V.
What standardized package dimensions and board space requirements define this component?
The resistor is supplied in a 0603 surface-mount package with nominal body dimensions of 1.60 ± 0.10 mm × 0.80 ± 0.10 mm and a height of 0.45 ± 0.10 mm. Its external terminations feature a nickel barrier with a matte tin finish for lead-free assembly.
What operating temperature range and environmental characteristics define this component?
The RC0603FR-0747KL is specified for operation over a temperature range of −55°C to +155°C. It is constructed on a high-grade ceramic substrate with a glass-covered thick film resistive element and a protective epoxy overcoat. The device is classified as Moisture Sensitivity Level (MSL) 1.
What packaging and assembly characteristics support high-volume SMT manufacturing?
The "07" ordering code specifies 7-inch (178 mm) paper tape reel packaging. For the RC0603 package, a standard 7-inch reel contains 5,000 pieces. The resistor features lead-free matte tin terminations and complies with RoHS requirements.
