YLPTECDatasheet (PDF)

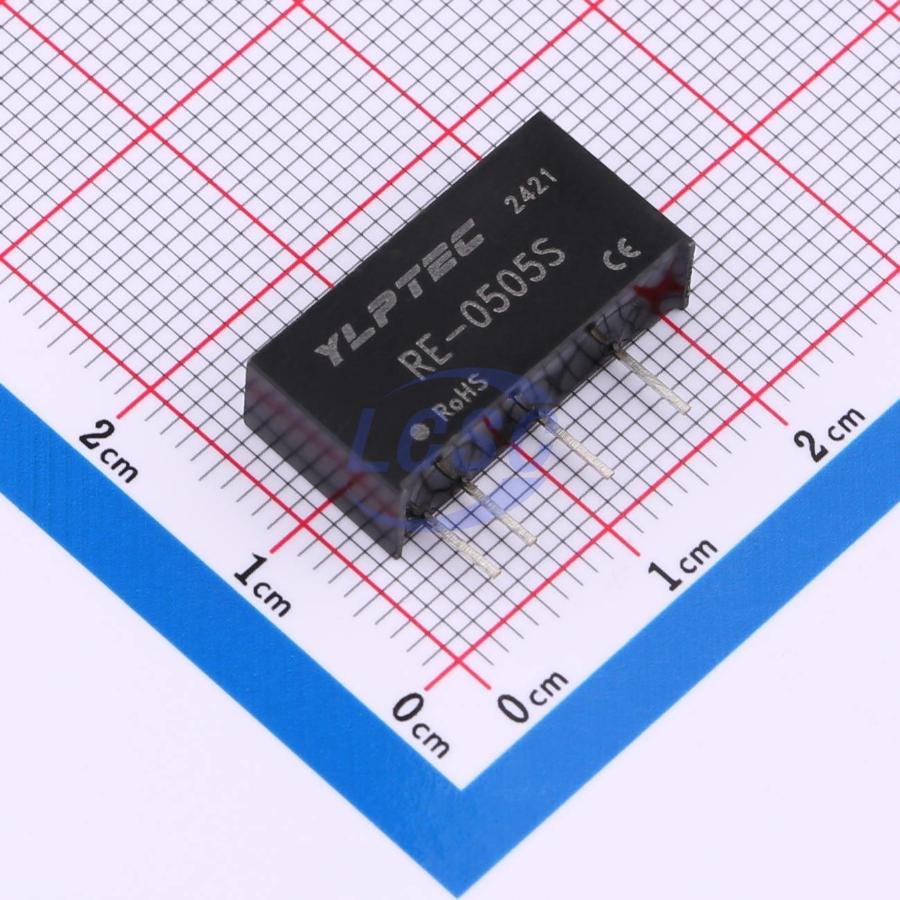

RE-0505S
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V~5.5V Input
SIP,19.5x6mmRoHSActive
DC/DC modular power supply, 1W fixed voltage input, isolated unregulated single-channel output
- Manufacturer
- YLPTEC
- Manufacturer part #
- RE-0505S
- Store part #
- C22372024
- Package / case
- SIP,19.5x6mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C22372024
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹655.00 | ₹655.00 |
| 10+ | ₹561.98 | ₹5,619.80 |
| 25+ | ₹506.70 | ₹12,667.50 |
| 100+ | ₹450.76 | ₹45,076.00 |
| 500+ | ₹425.19 | ₹2,12,595.00 |
| 1,000+ | ₹413.48 | ₹4,13,480.00 |
1 × ₹655.00
₹655.00
excl. GST
₹772.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
RE-0505S
₹655.00 for 1 + GST
Specifications
- Output Voltage
- 5V
- Ripple Noise
- 80mVp-p
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 4.5V~5.5V
- Capacitive Load(Max)
- 2400uF
- Number of Outputs
- 1
- Iout
- 200mA
- Height
- 10mm
- Frequency - Switching
- 100kHz
- Isolation Voltage(Vrms)
- 1.5kV
- Output Power
- 1W
- Conversion Efficiency
- 84%
- Features
- Short Circuit Protection;Automatic fault recovery;Over-temperature protection
- Length
- 19.5mm
- Width
- 6mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.039 g
Overview
Key features
- No-load input current as low as 8mA
- Operating temperature range: -40°C to +105°C
- High efficiency up to 85%
- I/O isolation test voltage: 1.5kV DC
- Industry-standard pinout
- 1W isolated DC-DC converter
- Fixed input voltage, unregulated dual/single output
- RoHS compliant
