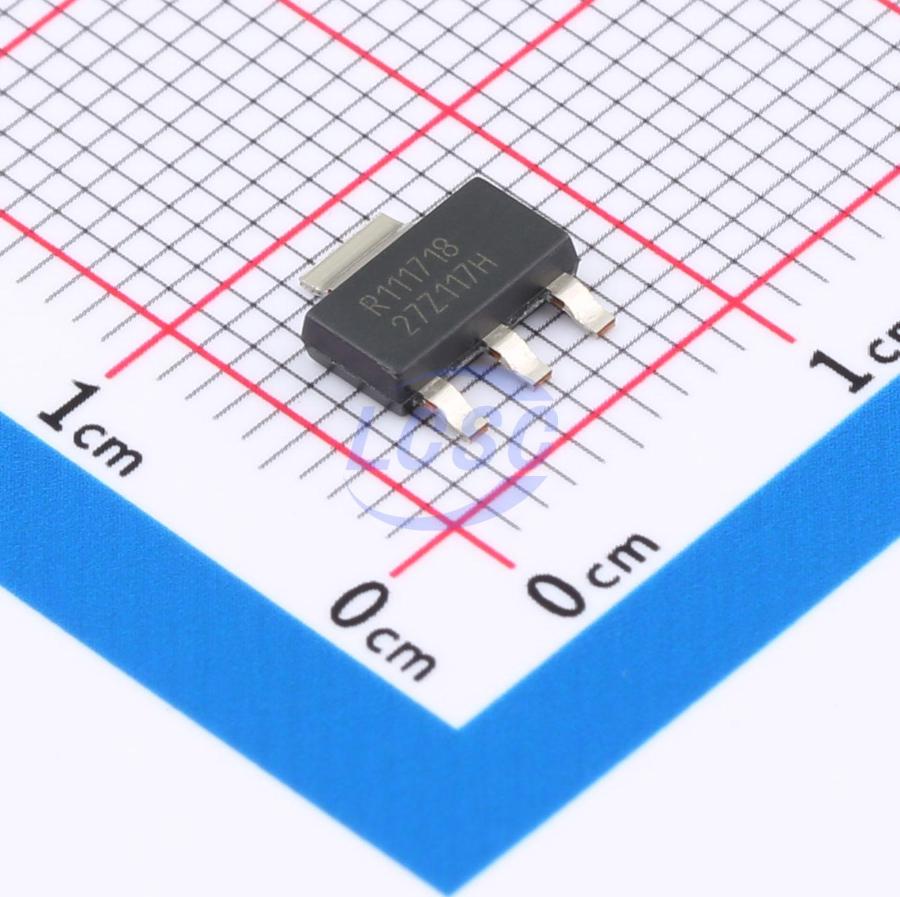

REG1117A-1.8/2K5
1.8V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
1A, 15V linear regulator with a working temperature range of -40°C to +125°C
- Manufacturer
- TI
- Manufacturer part #
- REG1117A-1.8/2K5
- Store part #
- C2872257
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C2872257
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹610.25 | ₹610.25 |
| 10+ | ₹544.24 | ₹5,442.40 |
| 30+ | ₹501.92 | ₹15,057.60 |
| 100+ | ₹461.11 | ₹46,111.00 |
1 × ₹610.25
₹610.25
excl. GST
₹720.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
REG1117A-1.8/2K5
₹610.25 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.413 g
Overview
The REG1117 is a family of easy-to-use three-terminal voltage regulators. The family includes a variety of fixed and adjustable-voltage versions, two currents (800mA and 1A) and two package types (SOT-223 and DDPAK). Output voltage of the adjustable versions is set with two external resistors. The REG1117 low dropout voltage allows its use with as little as 1V input-output voltage differential. Laser trimming assures excellent output voltage accuracy without adjustment. An NPN output stage allows output stage drive to contribute to the load current for maximum efficiency.
Applications
- SCSI-2 ACTIVE TERMINATION
- HAND-HELD DATA COLLECTION DEVICES
- HIGH EFFICIENCY LINEAR REGULATORS
- BATTERY-POWERED INSTRUMENTATION
- BATTERY MANAGEMENT CIRCUITS FOR NOTEBOOK AND PALMTOP PCs
- CORE VOLTAGE SUPPLY: FPGA, PLD, DSP, CPU
Key features
- FIXED AND ADJUSTABLE VERSIONS
- 2.85V MODEL FOR SCSI-2 ACTIVE TERMINATION
- OUTPUT CURRENT: REG1117: 800mA max; REG1117A: 1A max
- OUTPUT TOLERANCE: ±1% max
- DROPOUT VOLTAGE: REG1117: 1.2V max at I₀ = 800mA; REG1117A: 1.3V max at I₀ = 1A
- INTERNAL CURRENT LIMIT
- THERMAL OVERLOAD PROTECTION
- SOT-223 AND DDPAK SURFACE-MOUNT PACKAGES
