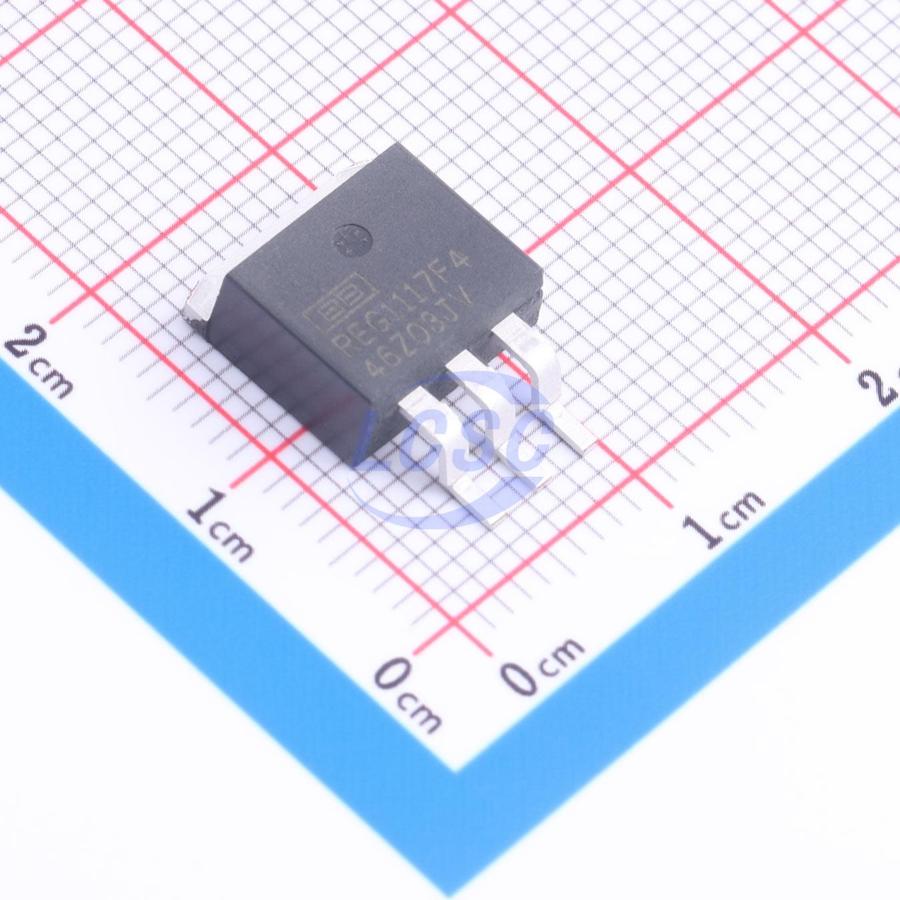

REG1117F-3.3/500
3.3V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-3ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- REG1117F-3.3/500
- Store part #
- C2868621
- Package / case
- TO-263-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2868621
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹974.92 | ₹974.92 |
| 10+ | ₹952.12 | ₹9,521.20 |
| 30+ | ₹937.07 | ₹28,112.10 |
| 100+ | ₹922.01 | ₹92,201.00 |
1 × ₹974.92
₹974.92
excl. GST
₹1,150.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
REG1117F-3.3/500
₹974.92 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4mA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.37 g
Overview
The REG1117 is a family of easy-to-use three-terminal voltage regulators. The family includes a variety of fixed and adjustable-voltage versions, two currents (800mA and 1A) and two package types (SOT-223 and DDPAK). Output voltage of the adjustable versions is set with two external resistors. The REG1117 low dropout voltage allows its use with as little as 1V input-output voltage differential. Laser trimming assures excellent output voltage accuracy without adjustment. An NPN output stage allows output stage drive to contribute to the load current for maximum efficiency.
Applications
- SCSI-2 ACTIVE TERMINATION
- HAND-HELD DATA COLLECTION DEVICES
- HIGH EFFICIENCY LINEAR REGULATORS
- BATTERY-POWERED INSTRUMENTATION
- BATTERY MANAGEMENT CIRCUITS FOR NOTEBOOK AND PALMTOP PCs
- CORE VOLTAGE SUPPLY: FPGA, PLD, DSP, CPU
Key features
- FIXED AND ADJUSTABLE VERSIONS
- 2.85V MODEL FOR SCSI-2 ACTIVE TERMINATION
- OUTPUT CURRENT: REG1117: 800mA max; REG1117A: 1A max
- OUTPUT TOLERANCE: ±1% max
- DROPOUT VOLTAGE: REG1117: 1.2V max at I₀ = 800mA; REG1117A: 1.3V max at I₀ = 1A
- INTERNAL CURRENT LIMIT
- THERMAL OVERLOAD PROTECTION
- SOT-223 AND DDPAK SURFACE-MOUNT PACKAGES
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UZ1085L-33-TQ3-R#C75491UTC · TO-263-3 | UTC | TO-263-3 | On request | ₹55.08 · 0 in stock | View |
 | LT1117CM-3.3#PBF#C662446ADI · DDPAK-3 | ADI | DDPAK-3 | 9 | ₹1,455.91 · 9 in stock | View |
 | SPX1587AT-L-3-3/TR#C9069MaxLinear · TO-263-3 | MaxLinear | TO-263-3 | 615 | ₹165.55 · 615 in stock | View |
 | LM1085IS-3.3RG#C5145337HANSCHIP semiconductor · TO-263-3 | HANSCHIP semiconductor | TO-263-3 | 755 | ₹41.86 · 755 in stock | View |
 | LM1085ISX-3.3/NOPB-TUDI#C54741341Tudi · TO-263-3 | Tudi | TO-263-3 | 440 | ₹122.72 · 440 in stock | View |
