ROHMDatasheet (PDF)
RF101L2STE25

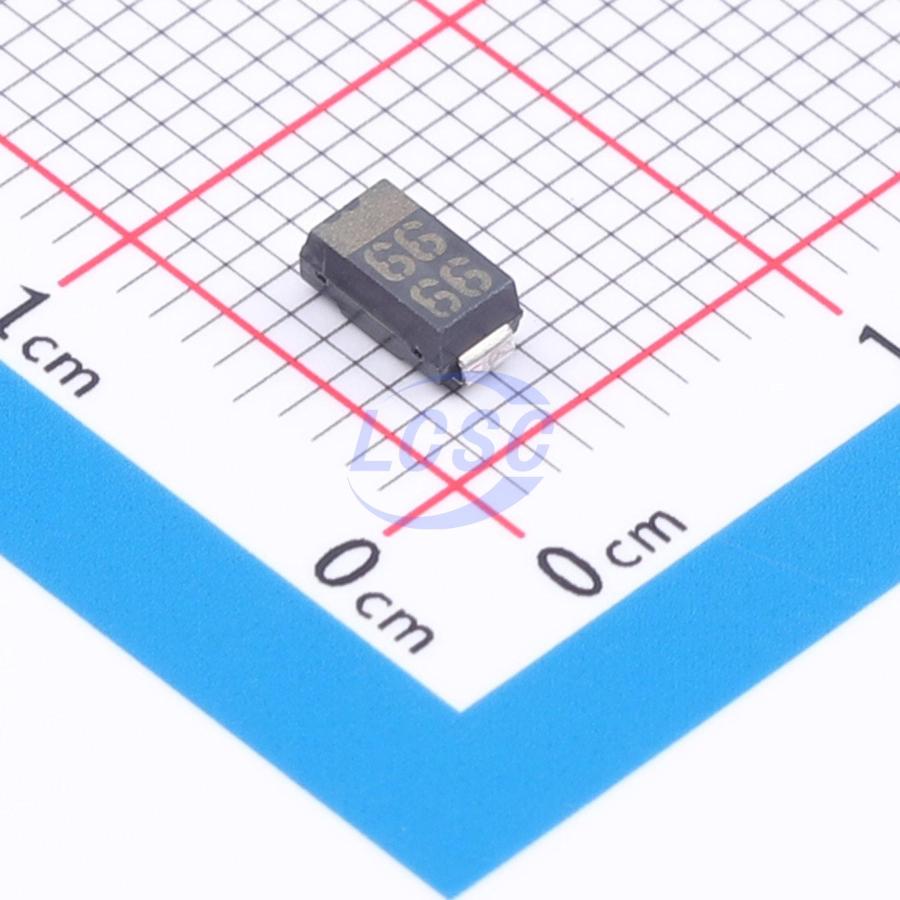

Diode 200V 1A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE STANDARD 200V 1A SMA(DO-214AC)
- Manufacturer
- ROHM
- Manufacturer part #
- RF101L2STE25
- Store part #
- C126315
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
880 in stock
#C126315
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.29 | ₹86.45 |
| 50+ | ₹13.67 | ₹683.50 |
| 150+ | ₹11.85 | ₹1,777.50 |
| 1,500+ | ₹9.74 | ₹14,610.00 |
| 3,000+ | ₹8.64 | ₹25,920.00 |
| 4,500+ | ₹8.10 | ₹36,450.00 |
5 × ₹17.29
₹86.45
excl. GST
₹102.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RF101L2STE25
₹86.45 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 815mV@1A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Non-Repetitive Peak Forward Surge Current
- 20A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Overview
Applications
- General rectification
Key features
- Small power mold type. (PMDS)
- Ultra low VF
- Ultra high switching speed
- Low switching loss
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH1L06A#C98801ST · SMA(DO-214AC) | ST | SMA(DO-214AC) | 7,825 | ₹27.15 · 7,825 in stock | View |
 | MRA4003T3G#C94410onsemi · SMA(DO-214AC) | onsemi | SMA(DO-214AC) | 11,150 | ₹14.88 · 11,150 in stock | View |
 | NRVA4004T3G#C236165onsemi · SMA | onsemi | SMA | 5,250 | ₹10.65 · 5,250 in stock | View |
 | 1SR154-400TE25#C24002ROHM · SMA(DO-214AC) | ROHM | SMA(DO-214AC) | 12,350 | ₹15.43 · 12,350 in stock | View |
 | MRA4004T3G#C40324onsemi · SMA(DO-214AC) | onsemi | SMA(DO-214AC) | 15,565 | ₹13.71 · 15,565 in stock | View |
