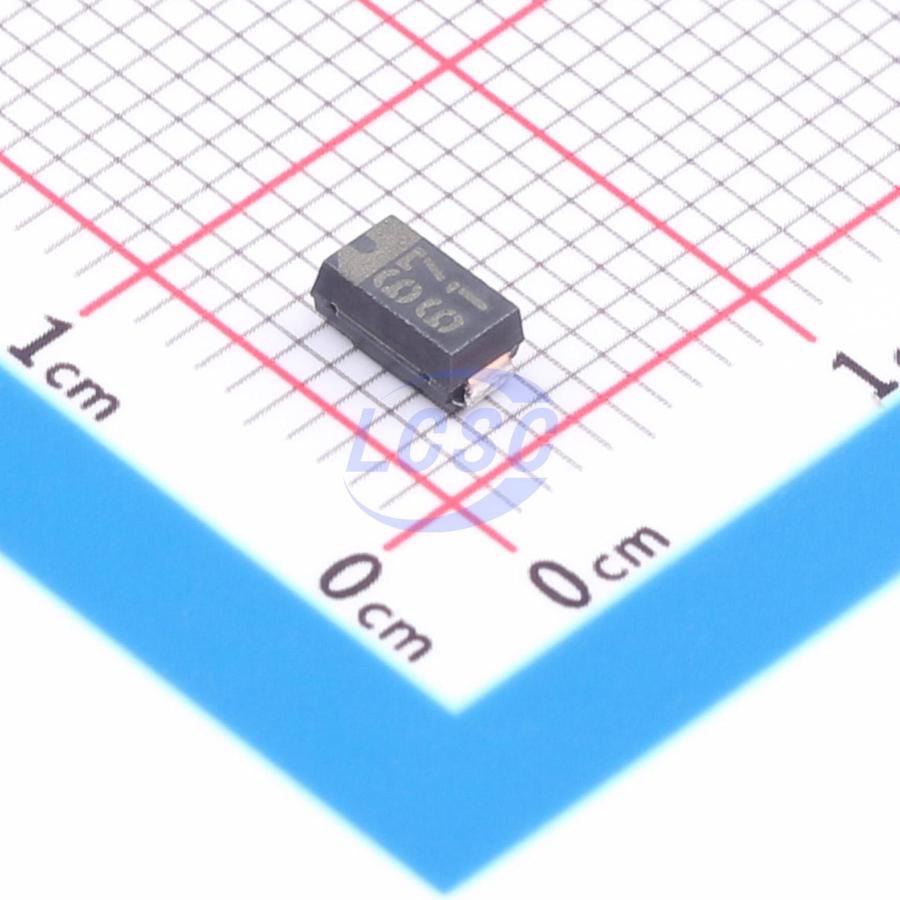

ROHMDatasheet (PDF)
RF201L2SDDTE25
25ns 200V 1 Independent 870mV@2A 2A DO-214AC(SMA) Single Diodes RoHS
DO-214AC(SMA)ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- RF201L2SDDTE25
- Store part #
- C17647176
- Package / case
- DO-214AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C17647176
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.44 | ₹78.44 |
| 10+ | ₹62.58 | ₹625.80 |
| 30+ | ₹54.44 | ₹1,633.20 |
| 100+ | ₹46.50 | ₹4,650.00 |
| 500+ | ₹41.79 | ₹20,895.00 |
| 1,500+ | ₹39.44 | ₹59,160.00 |
1 × ₹78.44
₹78.44
excl. GST
₹92.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RF201L2SDDTE25
₹78.44 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 25ns
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 870mV@2A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Current - Rectified
- 2A
- Non-Repetitive Peak Forward Surge Current
- 20A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.086 g
Overview
Applications
- General purpose rectification
Key features
- Small power mold type (PMDS)
- Ultra-low forward voltage (VF)
- Ultra-high switching speed
- Low switching loss
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MURS120#C489134KEXIN · DO-214AC(SMA) | KEXIN | DO-214AC(SMA) | 1,850 | ₹1.72 · 1,850 in stock | View |
 | MURS220A#C961881YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 10,880 | ₹17.60 · 10,880 in stock | View |
 | RF201L2STE25#C919452ROHM · DO-214AC(SMA) | ROHM | DO-214AC(SMA) | 285 | ₹24.20 · 285 in stock | View |
 | FSTTH2R02A#C42411291FUXINSEMI · SMA | FUXINSEMI | SMA | 3,855 | ₹11.01 · 3,855 in stock | View |
 | MURS220(SMAG)#C5356757JSCJ · SMAG | JSCJ | SMAG | 1,705 | ₹12.45 · 1,705 in stock | View |
