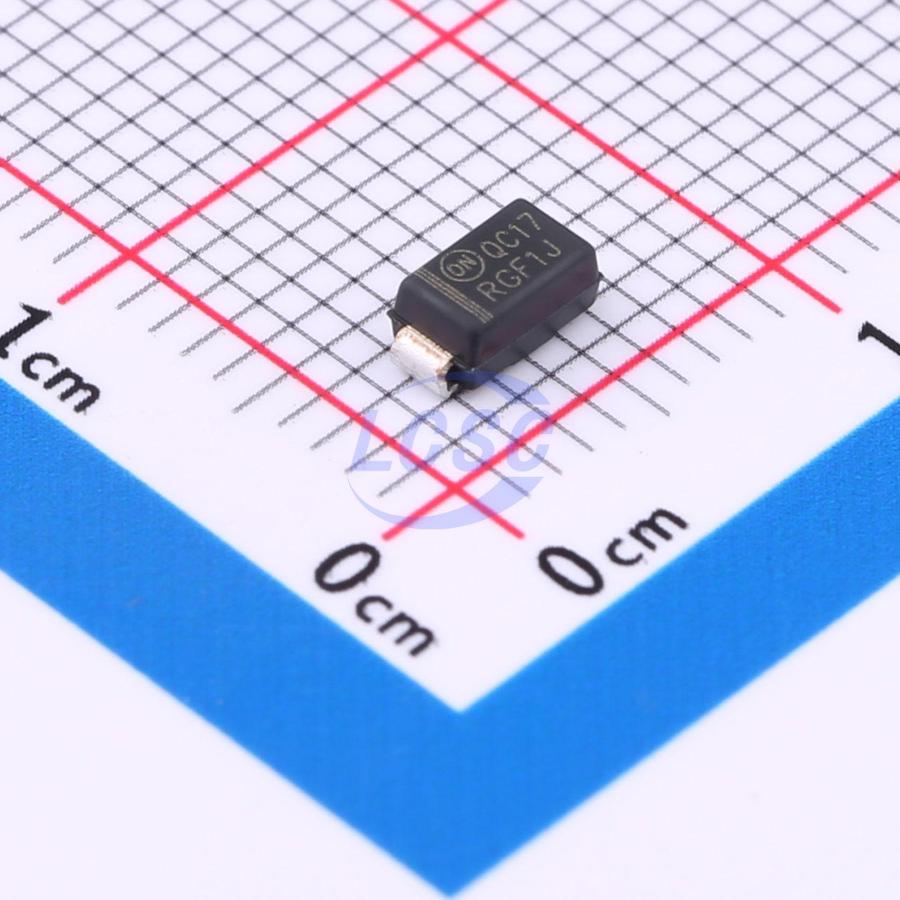

RGF1J
500ns 600V 1.3V@1A 1A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Diode 600V 1A SMA(DO-214AC)
- Manufacturer
- onsemi
- Manufacturer part #
- RGF1J
- Store part #
- C896146
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
117 in stock
#C896146
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹26.91 | ₹26.91 |
| 10+ | ₹26.25 | ₹262.50 |
| 30+ | ₹25.82 | ₹774.60 |
| 100+ | ₹25.39 | ₹2,539.00 |
1 × ₹26.91
₹26.91
excl. GST
₹31.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
RGF1J
₹26.91 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 500ns
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Operating Junction Temperature Range
- -65℃~+175℃
- Pd - Power Dissipation
- 1.76W
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA@600V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.094 g
Overview
Key features
- Glass Passivated Junction
- For Surface Mounted Applications
- Low Forward Voltage Drop
- High Current Capability
- Easy Pick and Place
- High Surge Current Capability
- NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
